10mm Slider Screw Stepper Motor 3.3V DC PM Micro Linear Stepper Motor for Camera Lens

10mm micro slider screw stepper motor 3.3V DC pm stepper motor of Camera Lens linear stepper motor:

10mm diameter micro slider screw length 40mm micro slider stepper motor copper slider with Bracket Linear Stepper Motor

VSM10152 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.

Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

This is a type of stepper motor equipped with a bracket, a lead screw, and a relative motion slider.

Because the output shaft of the motor is a screw, during the rotation of the screw, the screw drives the slider to move forward and backward. In this way, actions such as advancing and pulling back can be conveniently provided. In addition, the stepping motor can accurately control the rotation speed, the number of rotations, etc., which also determines the movement speed of the slider, and the movement position is accurate and controllable. And the position accuracy can be controlled to within 0.05mm.

Due to the above characteristics, such motors are widely used in beauty equipment, medical equipment, automatic vending machines, rapid inspection and other fields.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

10mm M2 lead screw slider stepper motor Specifications:

Drawing of 10mm plastic slider stepper motor with 40mm stroke:

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

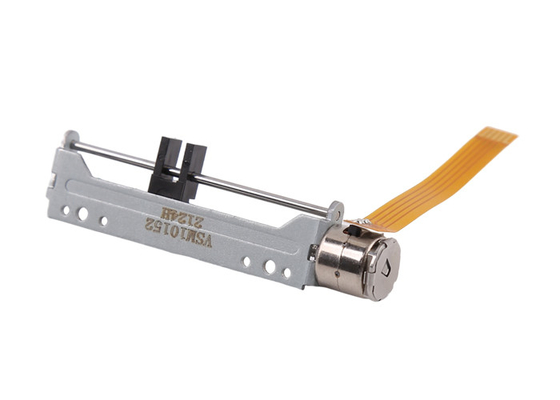

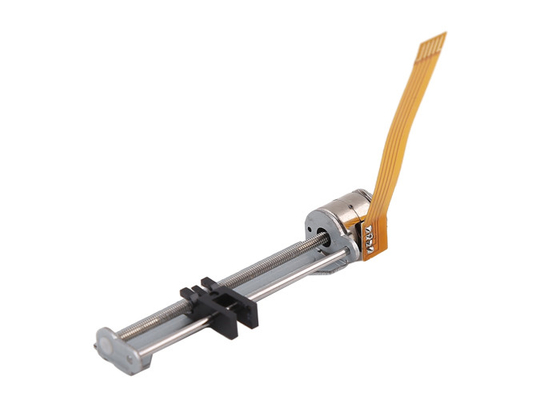

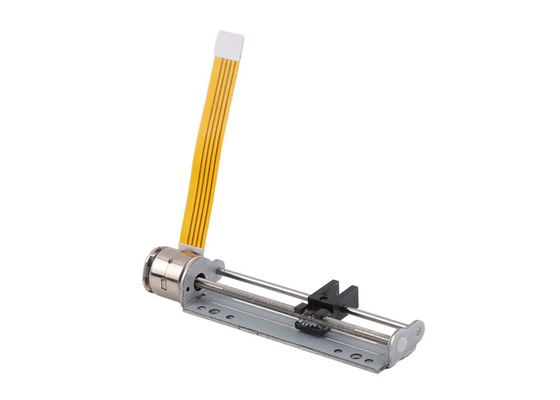

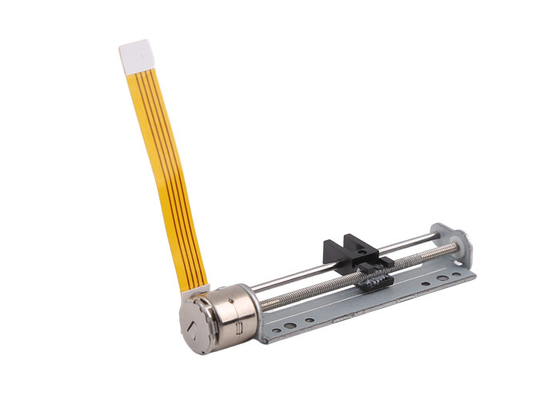

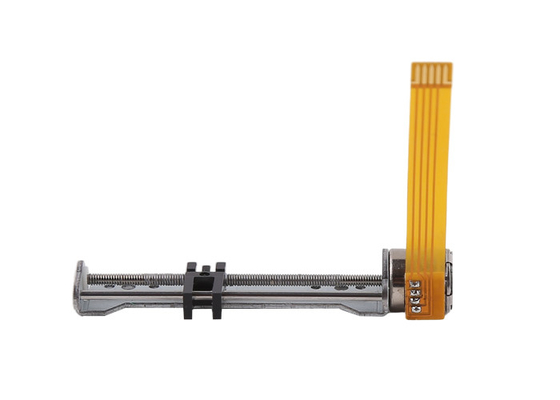

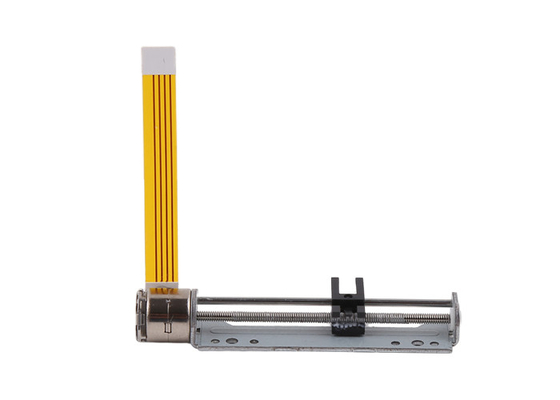

Product display for 10mm plastic slider stepper motor:

Customers can customize content:

1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.

2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.

2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.

usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally made of plastic, which is easy to form and economical.

When the customer has special use environment and requirements, the slider can also be made of metal parts.

Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
