Step Angle 18 Degree 10mm Micro Slider Stepper Motor 3VDC For Camera Lens / Optical Instruments
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM1069 |
| Minimum Order Quantity | 1Unit |
| Price | US$2 ~7 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Size | 10mm | Step Angle | 18 Degree |
|---|---|---|---|
| Lead Pitch | M2pitch 0.4mm | Driving Voltage | 3.3VDC |
| Coil Resistance | 15 Ohm （can Customization） | Driving Method | 2-2 Phase（Bi-polar ） |
| Screw Stroke | 26.4mm | Thrust | About 220g.cm |
| Highlight | 18Degree Micro Slider Stepper Motor,10mm Micro Slider Stepper Motor,3VDC Micro Slider Stepper Motor |
||
Product Description
10mm Micro slider Linear Stepping Motor 3V DC Screw Micro stepper motor with Bracket Linear Stepper Motor:
VSM1069 is a special precision micro stepping motor (or linear stepping motor), with a bracket and movable slider (when the motor rotates, the slider will move forward or backward). The moving speed can be controlled by the driving pulse frequency of the precision micro stepping motor, and the moving distance can be controlled by the driving pulse number of the precision micro stepping motor. For this typical motor, when the motor drives the 2-2 phase, one pulse makes the slide move 0.02mm. As shown in the photo, the basic slide is a black plastic (POM) unit, which can also be customized to any shape carrier
10mm diameter motor is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields due to its small size, high accuracy, easy control and other excellent characteristics.
The motor input part is FPC, but it can be changed to the form of connecting wire, PIN pin, PCB, etc. according to customer requirements.
In addition, the stepper motor can accurately control the speed and number of revolutions, which also determines the moving speed of the slider, and the moving position is accurate and controllable. The position accuracy can be controlled within 0.05mm.
Main Application
1) Camera Lens
2) Optical instruments
3) Precision medical devices
4) beauty equipment
5)vending machine
Other precise control application
10mm M2 lead screw slider stepper motor Specifications:
| Model No. | VSM1069 |
| Motor type | Linear stepper motor |
| Phase No. | 2 phases |
| Step angle | 18 degrees |
| Phase resistance | 15 Ohms/phase |
| Excitation method | 2-2 bipolar drive |
| Rated voltage | 3 ~5V DC |
| Lead screw type | M2*0.4Pitch thread |
| Stroke | 26.4 mm |
| Pull-out thrust | Over 3.8 gf at 500 PPS |
| Max response frequency |
Over 1100 PPS |
Drawing of 10mm plastic slider stepper motor with 26.4mm stroke:

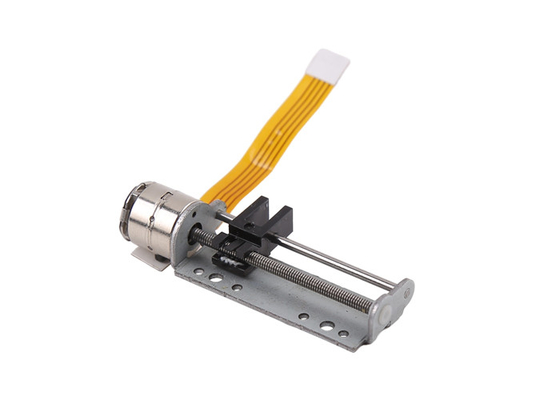

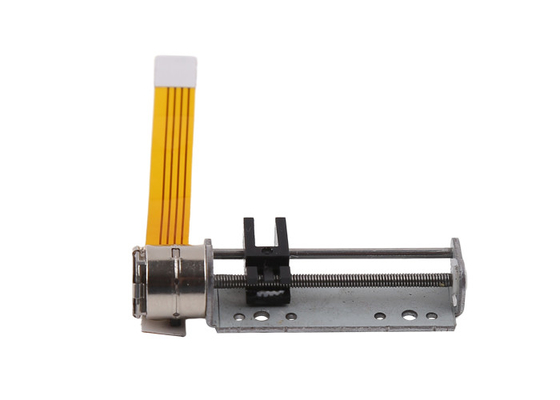

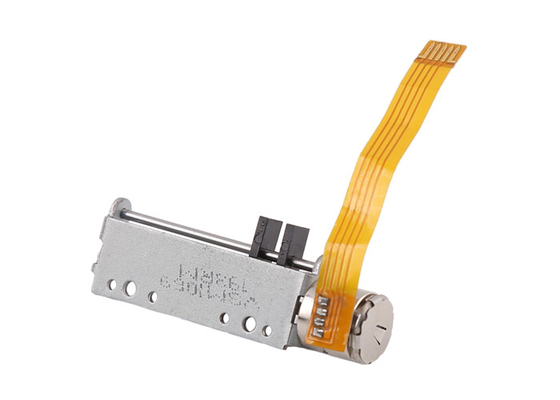

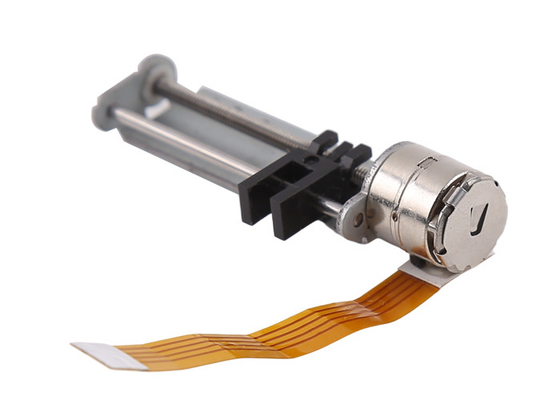

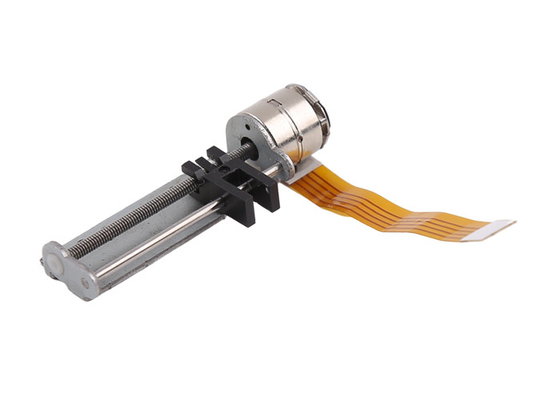

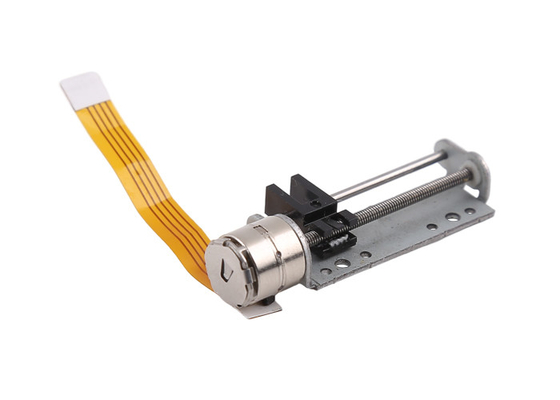

Product display for 10mm plastic slider stepper motor:
10mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor
Customers can customize content:
1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.
2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.
2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.
usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.
4. The material of the slider is generally made of plastic, which is easy to form and economical.
When the customer has special use environment and requirements, the slider can also be made of metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
