Product Details
Motor Type Linear Stepper Motor + Lead Screw And Nut Motor Size 15 Mm Diameter
Step Angle 18° Lead Screw Tr3*1P*2N
Phase No. 2 Phases (4 Wires) Travel Distance About 84mm
Leave a Message
Product Description

15mm trapezoidal screw 18 degrees PM linear stepper motor with hexagonal nut



Description:



This is a 15mm diameter stepper motor attached with a lead screw and nut.

The lead screw is trapezoidal screw, and lead screw’s part No. Is: Tr3*1P*2N

Tr3 means it’s a trapezoidal screw and screw’s outer diameter is 3mm

1P means the pitch is 1mm

2N means the lead screw has 2 starts

Thus the lead of this screw is 2N*1P=2mm



The nut on lead screw is a hexagonal nut.



Parameters:



Model No. SM1567A
Motor diameter 15mm
Rated voltage 5~8V
Coil resistance 15Ω/phase
No. of phases 2 phase (Bipolar)
Step angle 18°/step
Lead screw type Tr3*1P*2N
Travel distance About 84 mm
Nut type Hexagonal nut



Design drawing:



Small Size Slider Stepper Motor 15mm 8V Trapezoidal Screw With Hexagonal Nut Tr3*1P*2N Lead screw 0



Product display:

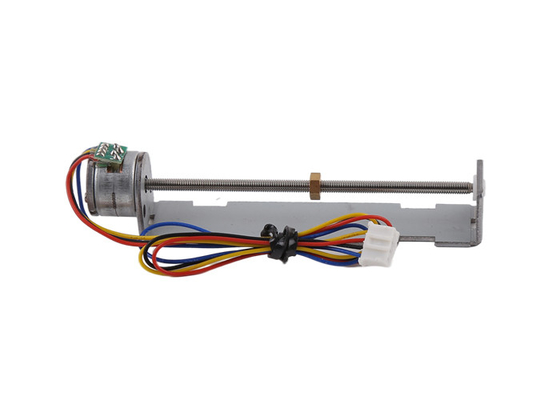

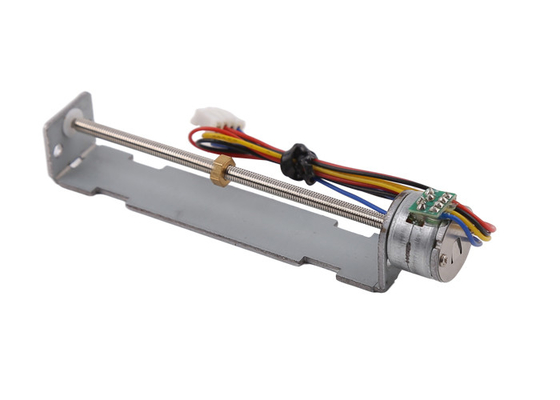

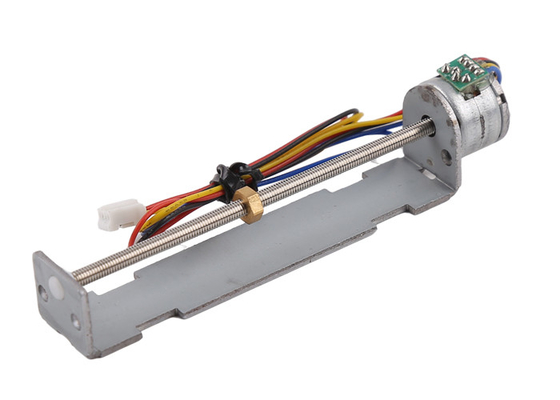

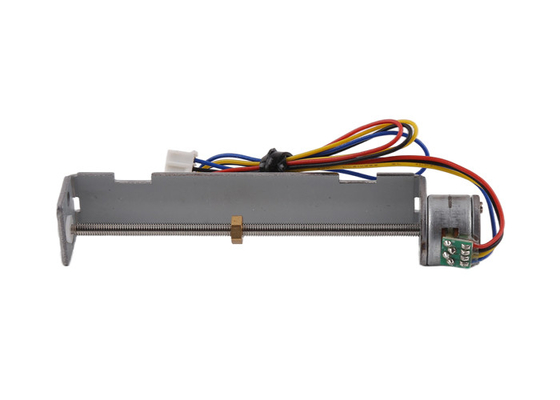

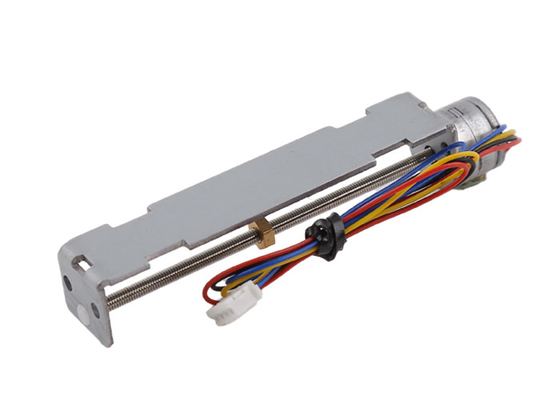

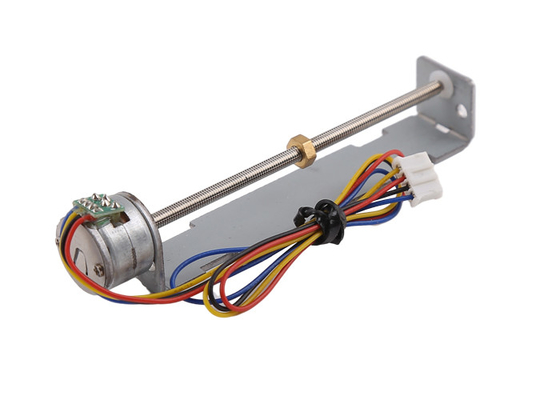

Small Size Slider Stepper Motor 15mm 8V Trapezoidal Screw With Hexagonal Nut Tr3*1P*2N Lead screw 1



About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Small Size Slider Stepper Motor 15mm 8V Trapezoidal Screw With Hexagonal Nut Tr3*1P*2N Lead screw 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)







Tags:

lead screw motor

mini slider screw stepper motor

full step drive stepper motor
