High Thrust 15mm M3 Screw Slider Stepper Motor Xy Axis With Bracket Coil resistance 15 ohm
| Place of Origin | China |
|---|---|
| Brand Name | Vic-Tech |
| Certification | RoHS |
| Model Number | SM15-80L |
| Minimum Order Quantity | 1 |
| Price | US$10~30 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Size | 15mm | Step Angle | 18 ° |
|---|---|---|---|
| Motor Type | Stepper Motor With Lead Screw Slide | Movement Type | Running In A Straight Line (forward And Backward) |
| Lead Pitch | M3 Pitch 0.5mm | Driving Voltage | 5-12 VDC |
| Coil Resistance | 15 Ohm | Driving Method | Bi-polar 2-2 Phase |
Product Description
High Thrust 15mm M3 Screw Slider Stepper Motor Xy Axis With Bracket
15mm M3 lead screw slider stepper motor features:
This is a stepper motor with a moving slider with a bracket and lead screw.
This motor slider is plastic, we also have metal sliders for customers to choose.
Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw will drive the slider to move back and forth. This makes it easy to provide actions such as forward and backward. In addition, the stepping motor can also precisely control the speed, the number of revolutions, etc. It also determines the moving speed of the slider and can precisely control the moving position. The positioning accuracy can be controlled within 0.05mm.
The motor characteristics described above are widely used in various fields such as beauty equipment, medical equipment, vending machines, and rapid testing.
Main Application
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
15mm M3 lead screw slider stepper motor Specifications:
| Model No. | SM15-80L |
| Motor type | Linear stepper motor |
| Phase No. | 2 phases |
| Step angle | 18 degrees |
| Phase resistance | 15±10% Ohm/phase |
| Excitation method | 1-2 Phases Excitation |
| Rated voltage | 5 - 12 V DC |
| Lead screw type | M3*0.5Pitch thread |
| Stroke | 80mm |
| Pull-out thrust | Over 500 gf at 700 PPS |
| Max response frequency | Over 1600 PPS |
| Max Starting frequency | Over 1100 PPS |
Drawing of 15mm plastic slider stepper motor with 80mm stroke:

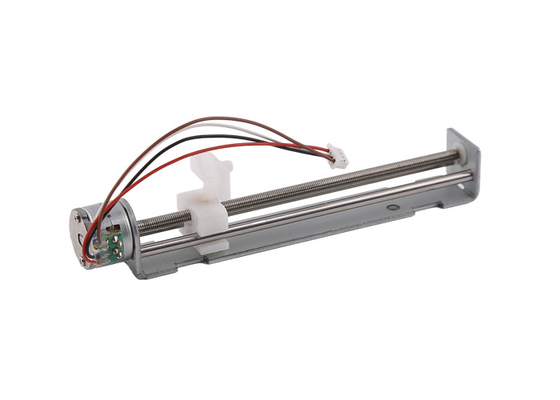

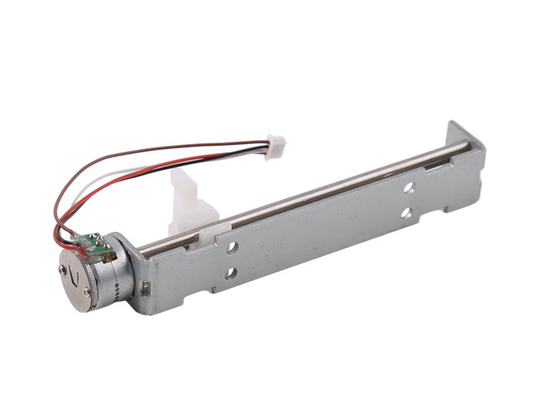

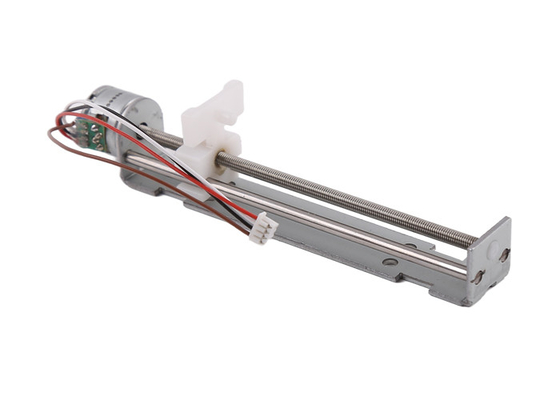

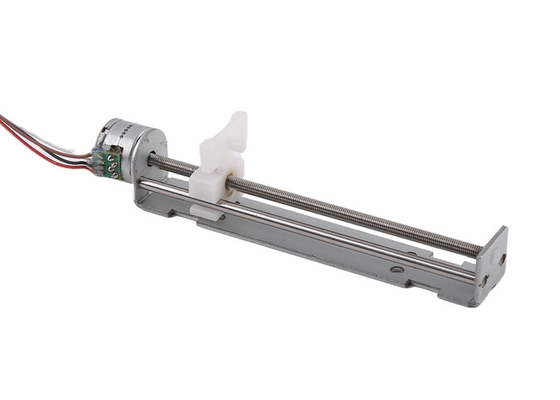

Product display for 15mm plastic slider stepper motor:
Customers can customize content:
1. The outer diameter of the motor can be selected in different sizes such as 6 8 10 15 20 25mm according to the customer's use environment and space strength.
2. The position of the motor air outlet can be adjusted freely within a range of 360 degrees to achieve the best state and meet the installation requirements. At the same time, the connector can also choose lead, PCB, FPC bare pins.
2. The effective stroke of the motor can be customized within a certain range according to customer requirements, mainly considering the diameter and length of the lead screw.
Usually the maximum length of M2 screws can reach 50mm, M3 screws can reach 100mm, and M4 screws can reach 100mm. We can also do 150mm. The diameter of the lead screw used by the micro motor is too large and the power consumption is also large, so the customer should consider comprehensively when selecting the motor.
4. The material of the slider is generally plastic, which is easier to form.
If the customer has special use environment and requirements, the slider can also use metal parts.
Of course, the cost of metal will be higher, which needs to be determined according to the customer's requirements for the shape and size of the slider.
