High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM35-048L
Minimum Order Quantity 1Unit
Price $5~$10/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Motor Type Permanent Magnet Motor+gearbox Motor Diameter 35 Mm
Gearbox Ratio 30:1 Step Angle 7.5°/30
Phase Number 2 (bipolar) Coil Resistance 30Ω/phase
High Light

35mm Diameter Permanent Geared Reducer


35mm Permanent Magnet Stepper Motor


Bipolar Magnet Stepper Motor

Leave a Message
Product Description

High precision 35mm diameter permanent geared reducer magnet stepper motor



This is a 35mm permanent magnet motor with a gearbox.

Motor’s output torque and speed is related to motor’s gear ratio.

The gear ratio for this current model is 30:1.

The motor is commonly used on medical equipment and electrical locks.

You are free to customize motor’s output shaft, lead wire types and connector type.

Lead time will be longer, it might cause extra custom fee if the motor is customized.


Motor Parameters:

Motor type PM motor + gearbox
Model No. SM35-048L
Diameter 35mm
Phase No. 2 phases
Step angle 7.5°/30
Gear ratio 30:1
Resistance 30
Current 400mA/phase


Design drawing:

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor 0

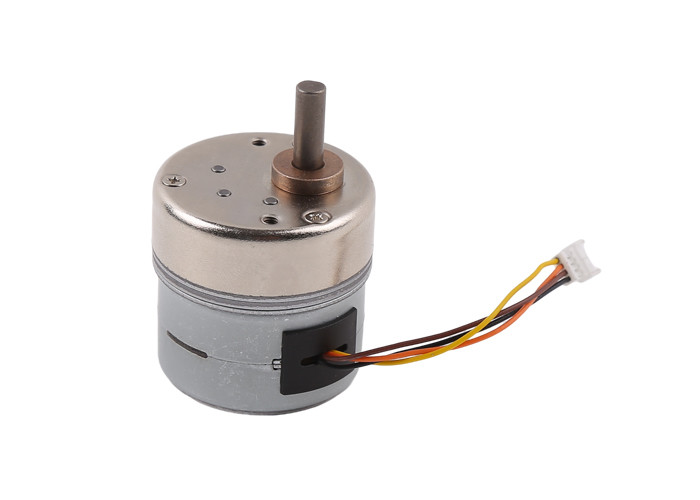

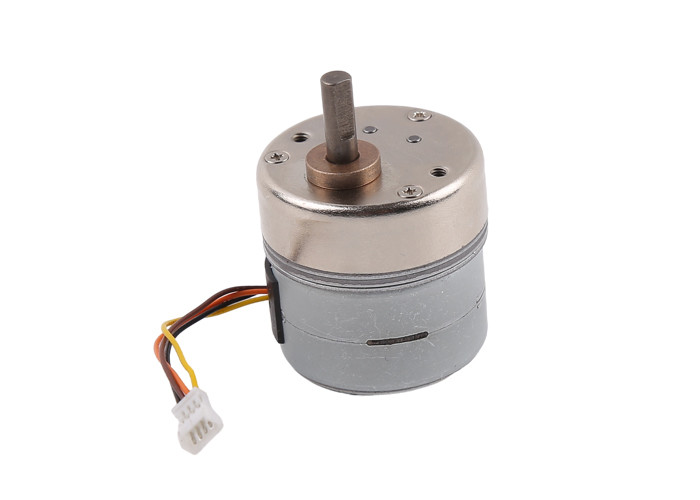

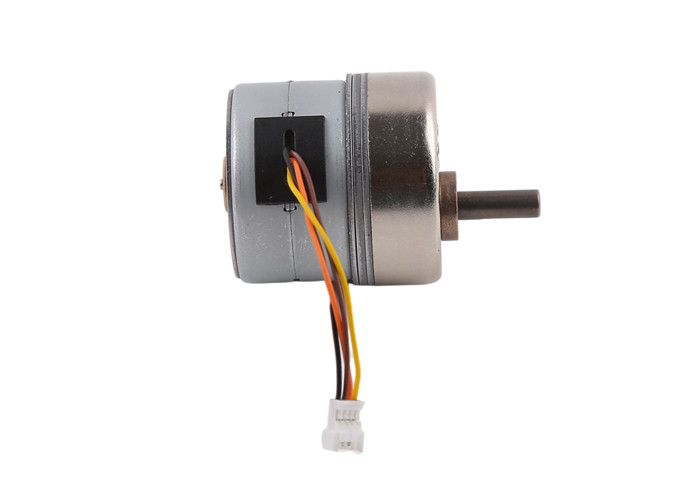

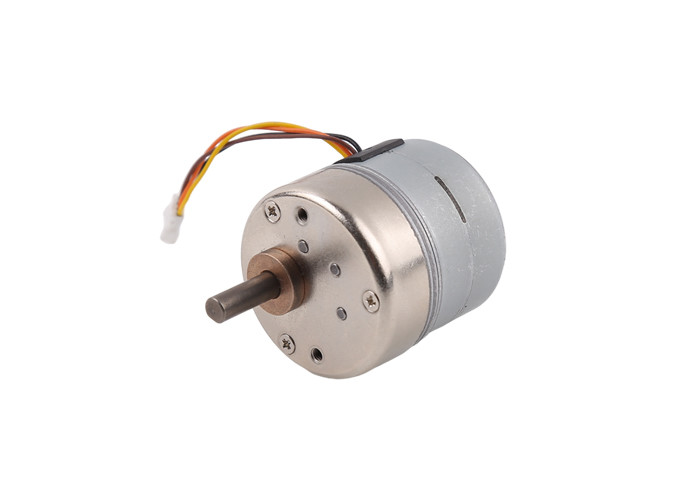

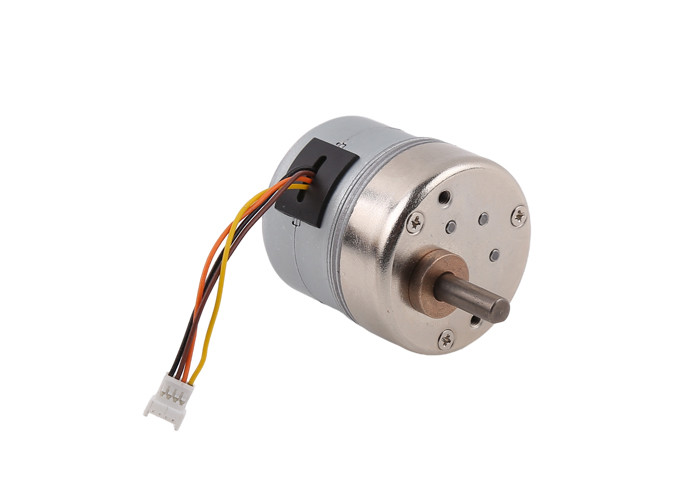

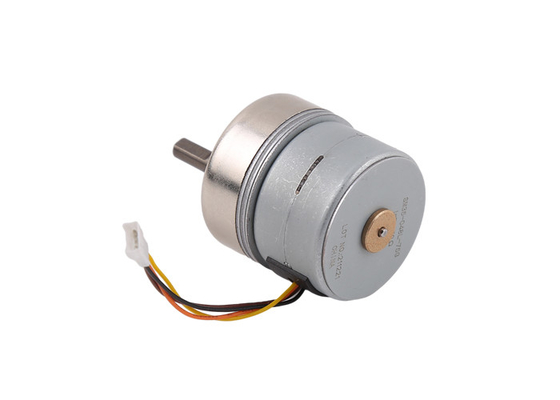

Product display:

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor 1



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.



Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life


Stepper motors are widely used among all industries.

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor 2
