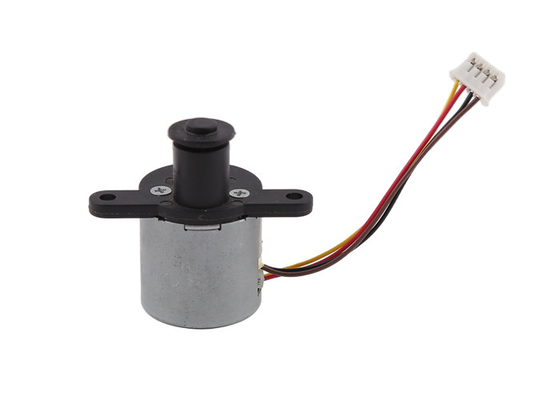

25mm 2 phase 3.2v Wifi Electric Thermostatic Radiator Valve Geared Stepper Motor For TRV
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM25-412L-9L |
| Minimum Order Quantity | 1Unit |
| Price | $2.98~$5/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | PM Stepper Motor With Gearbox | Motor Size | 25mm |
|---|---|---|---|
| Step Angle | 7.5°/10 | Gear Ratio | 1:10 |
| No.of Phase | 2 Phase | Phase Resistance | 5Ω±7% |
| Rated Voltage | 2.2V~12V | Thrust | ＞70N |
| Stroke | 5mm | Detent Torque | 60g.cm(ref) |
| Highlight | Thermostatic Radiator Valve Stepper Motor,TRV Geared Stepper Motor,3.2v Electric Micro Stepper Motor |
||
Product Description
diameter 25mm pm Geared Stepper Motor 5V Micro stepping gear motor
Description:
SM25-412L-9L This product is mainly used in the fields of printers, valves, fluid control, position control, etc. The motor has the characteristics of small size, high precision, high strength, etc.
The stepper motor is equipped with a built-in reduction gear box to achieve a reduction ratio of 1:10 and improve the torque. Finally, the output end with a stop structure is used to realize the function that the ejector pin does not rotate before and after the movement. The thrust assembly is more than 10 kg.
At the same time, the external wiring part can use various types and lengths of lines, PIN bare pins or FFC FPC according to customer requirements.
The motor is a stepping motor with a diameter of 25pm, and the gearbox is fixed. And guide screws and nuts with the same anti rotation structure. Thus, pushing outward can move up and down, and the installation hole can be customized and support mold production according to customer installation requirements
NOTED:
The output shaft of the motor can be customized according to customer installation requirements.
application:
Valve application
Household Appliances Air Conditioning
refrigerator smart bathroom
Automatic Door Lock CCTV Monitor
Electronic equipment
Motor Parameters:
| Motor type | Permanent magnet motor with gearbox |
| Motor diameter | 25mm |
| Voltage | 2.2~6V CD |
| Step Angle | 7.5°/10 |
| No.of Phase | 2 phase |
| Coil resistance | 5Ω±7%(25℃) |
| detent torque | 60g.cm(ref) |
| Push force | Minimum 70N 2. 6VDC 350 Hz. |
| Minimum 70N 3.2VDC 600Hz | |
| Stroke | 5mm |
Design drawing:

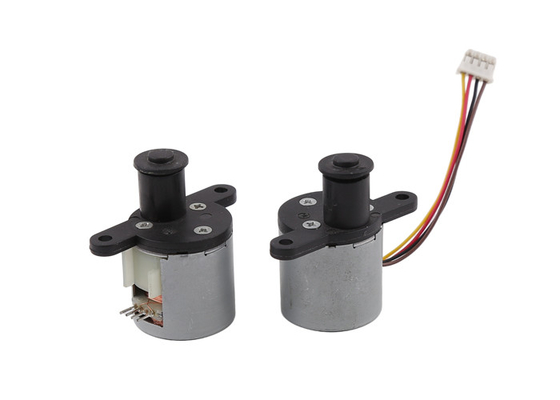

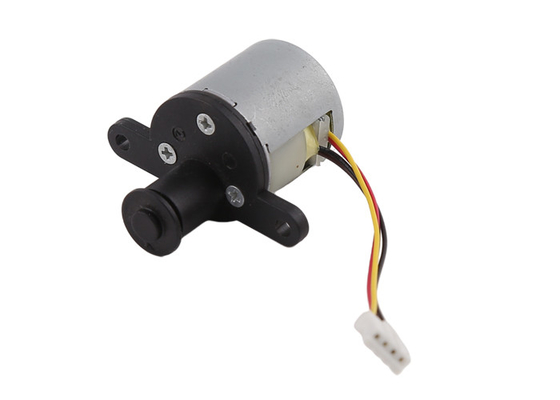

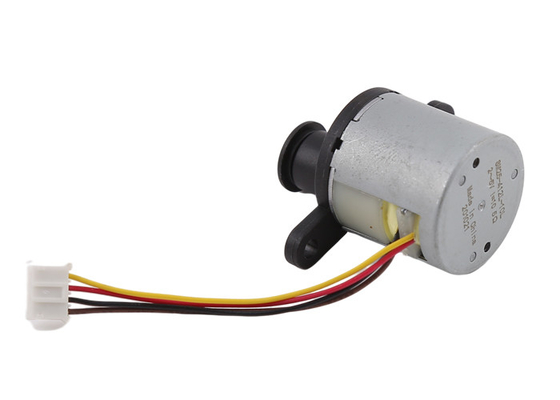

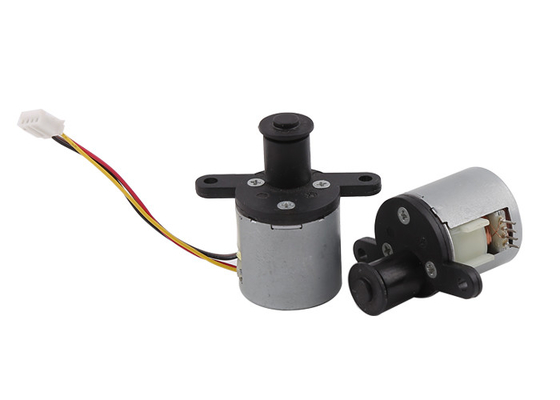

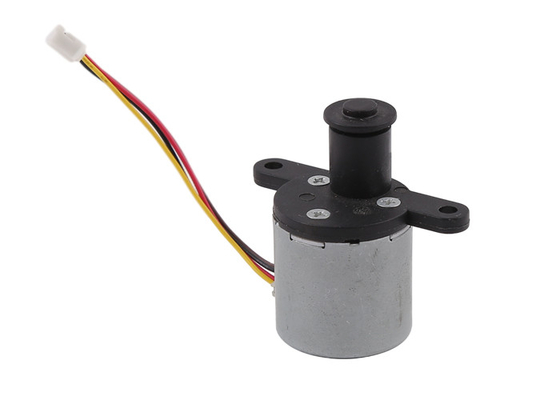

Product display:
Micro Geared Stepper Motor 2-phase 4-wirer Bipolar stepping motor
25byj412 pm geared stepper motor 3.2V Geared stepper motor for Valve Control
Application of stepper motors:
SM25-412L-9L stepper motor is used for precision control and is widely used in medical equipment, 3D printers, industrial precision control, automation equipment, valve applications, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.
If this motor does not meet your installation needs, we also recommend other diameter motors for you, if you have any questions, you can feel free to contact me
