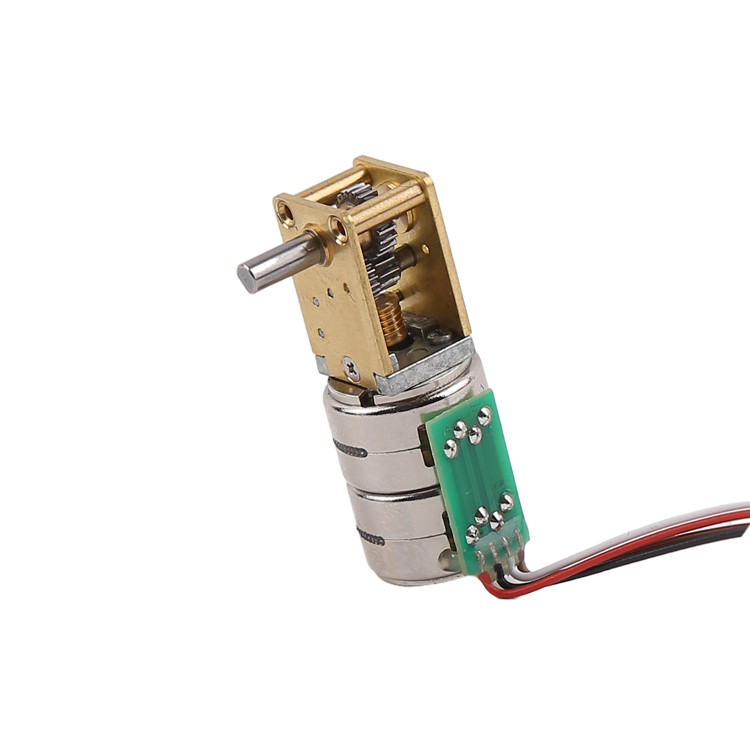

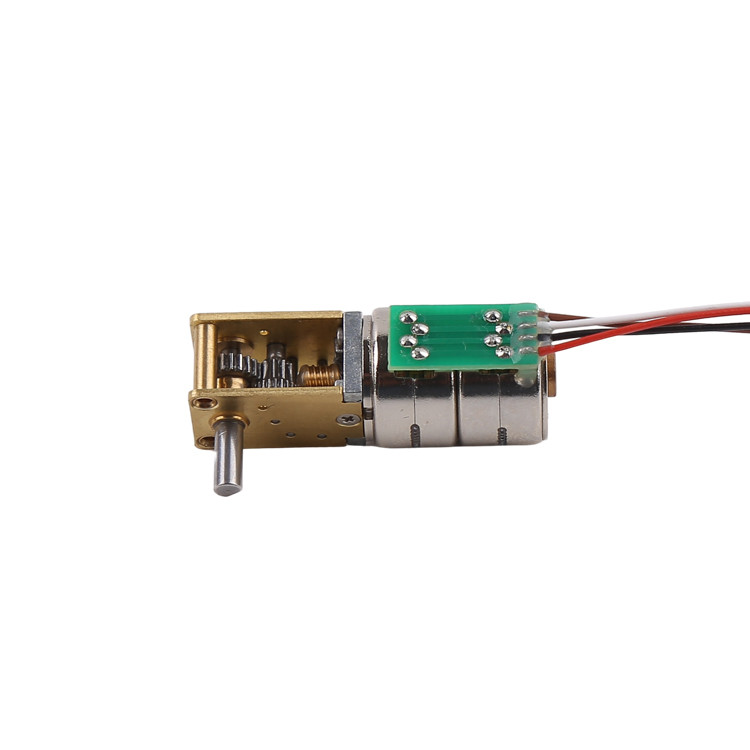

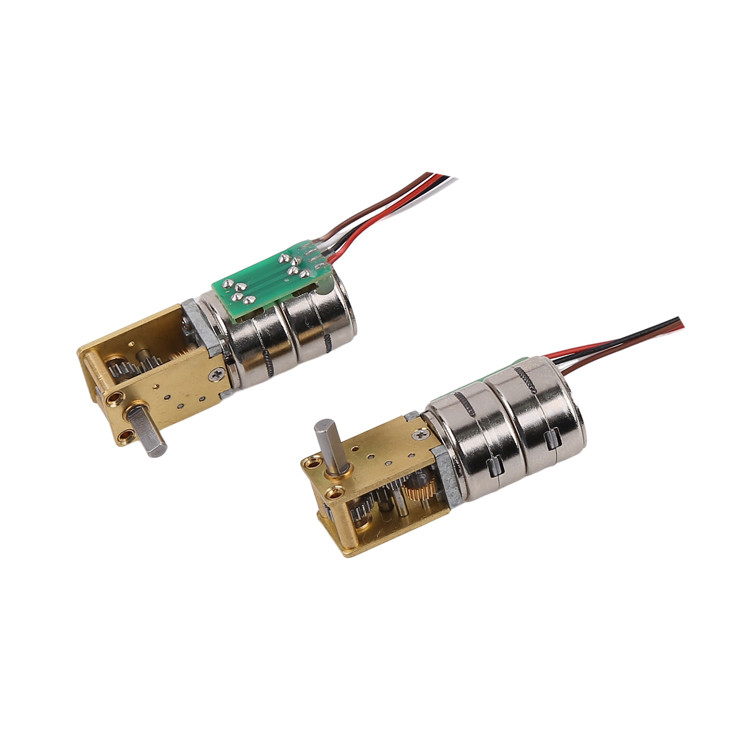

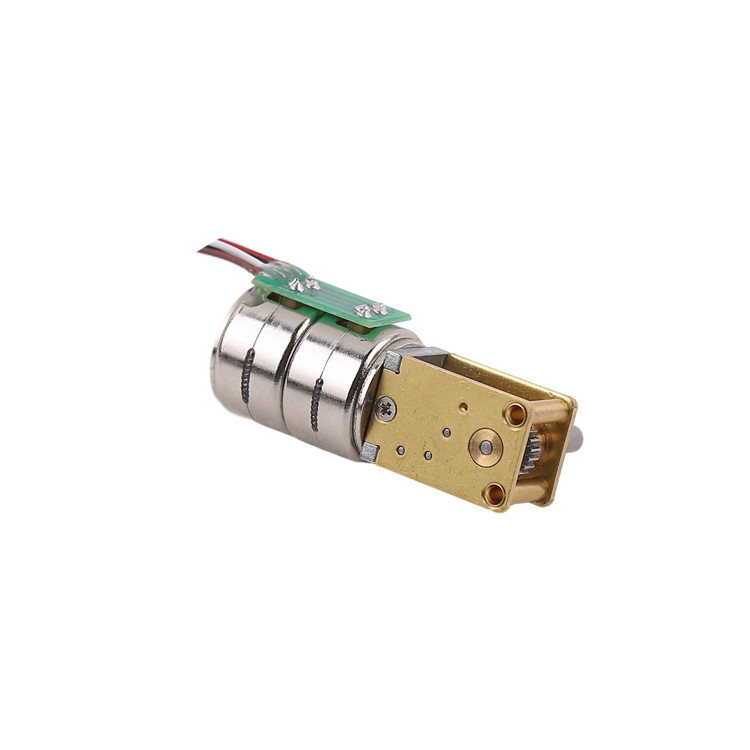

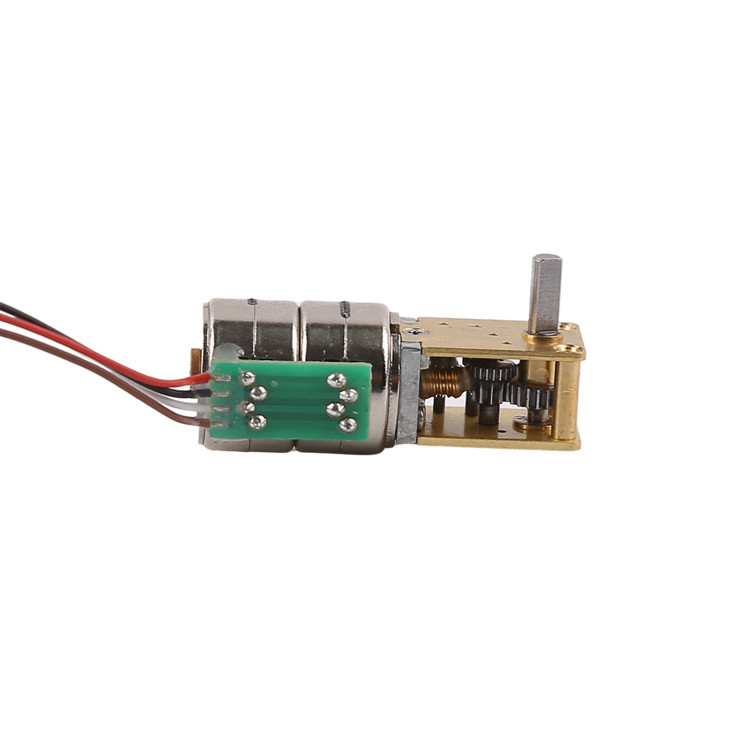

Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox

  • Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox
  • Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox
  • Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox
  • Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox
  • Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM15-818G-D
Minimum Order Quantity 1Unit
Price $4~$9/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type 15mm Motor+worm Gearbox Motor Diameter 15mm
Gearbox Type Worm Gearbox Coil Resistance 10Ω/31Ω(single Motor)
Gearbox Ratio 21:1 To 1030:1 Rated Voltage 5V DC
High Light

Double Stacked 15mm Stepper Motor

,

Multiple Gear Ratio Stepper Motor

,

Worm Gearbox Stepper Motor
Leave a Message
Product Description

High torque multiple gear ratio double stacked 15mm stepper motor with worm gearbox



Description:

This is 15mm diameter double stacked motor with worm gearbox.

This motor is a double stacked motor.

It is two 15mm stepper motors combined together to provide motor torque.

The efficiency of this motor is about 80%, and a double stacked motor has about 1.8 times of torque compared to a single 15mm motor.

We have different gear ratios for you to choose, from 21:1 to 1030:1



Parameters:

Motor type Double stacked motor
Model No. SM15-818G-D
Motor diameter 15mm
Gearbox type Worm gearbox
Gear ratio

21:1/42:1/118:1/236:1/

302:1/603:1/875:1/1030:1
Step angle 18 degrees/gear ratio
Rated voltage 5V DC
Coil resistance 10Ω/31Ω



Design drawing:

15mm motor design:

Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox 0

Gearbox design:

Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox 1



Product display:

Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox 2







Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Multiple Gear Ratio Double Stacked 15mm Stepper Motor With Worm Gearbox 3



Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life
