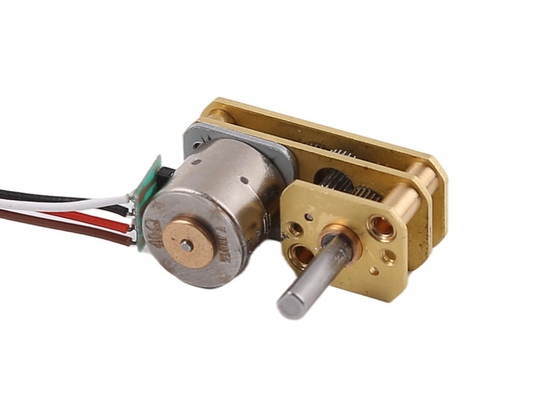

10mm Worm Mini Geared Stepper Motor 5V Horizontal Right Angle 2 Phase
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-817G |
| Minimum Order Quantity | 1Unit |
| Price | US$2.7~10 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet Geared Stepper Motor | Phase | 2 Phase |
|---|---|---|---|
| Current / Phase | 0.15A | Step Angle(degrees) | 1.8 Degree |
| Rated Voltage | 5V Or As Request | Motor Length | 16mm |
| Motor Weight | 18g | Resistance | 40Ω ±10% |
| Shaft | Customizable | Gear Reduction Ratio | 1:10~1:1000 |
| High Light | Worm Mini Geared Stepper Motor,10mm Mini Geared Stepper Motor,Horizontal Worm Gear Stepper Motor |
||
Product Description
10mm Geared Stepper Motor 5V Horizontal Right Angle Motor 2 Phase Mini Gear Motor
SM10-817G is series 1024GB reducer motor is the use of 10MM stepper motor and 10*24mm reducer special connection of special products. Suitable for laser instrument, medical equipment, optical fiber splicer, etc.. Matching deceleration
The speed decreases and the torque increases.
All parts of the product are processed in the precision equipment, while the use of advanced and reliable assembly process, which is the product with high transmission efficiency, low noise, high reliability characteristics
Reduction ratio of 10 50 100 150 200 350 380, can be customized according to the needs of the 500 700 1000
Customers can choose the deceleration ratio according to the different requirements of the torque speed
Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!
Customer needs is the direction of our efforts, please feel free to contact!
SPECIAL IMPORTANT REMINDER
Due to the use of the worm gear structure, the entire motor has a compact structure, but the efficiency of this structure is relatively low, so special attention should be paid when selecting it.
SM10-817Ggearbox stepper main parameters:
| PRODUCT NAME | 10 mm worm geared stepper motor |
| MODEL | SM10-817G |
| RESISTENCE | 40Ω±7% (optional 20 15 10 ohm) |
| MAX. STARTING FREQUENCY | 900 PPS min. (AT 5.0 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 5.0 V DC) |
| PULL IN TORQUE | 3.5 gf-cm min. (AT 500 PPS , 5.0V DC) |
| PULL OUT TORQUE | 4.2 gf-cm min. (AT 500 PPS , 5.0V DC) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 10~1000 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~150rpm) |
SM10-817Ggear stepper motor out drawing:
SM10-817G gear stepper torque curve:
Since there are many speed options, the output torque can be the torque * speed ratio * efficiency of the motor, and the specific situation will generally be determined after testing the actual sample. The following is the torque curve of the SM15 stepper motor for reference.

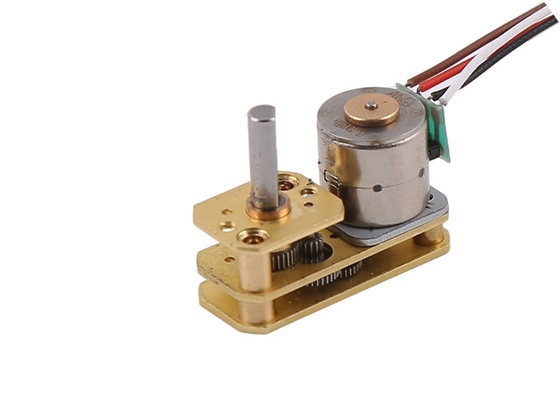

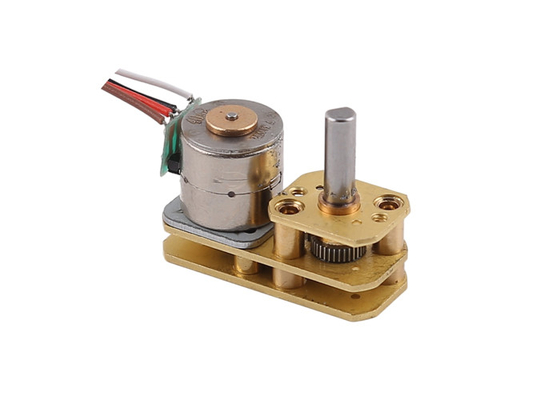

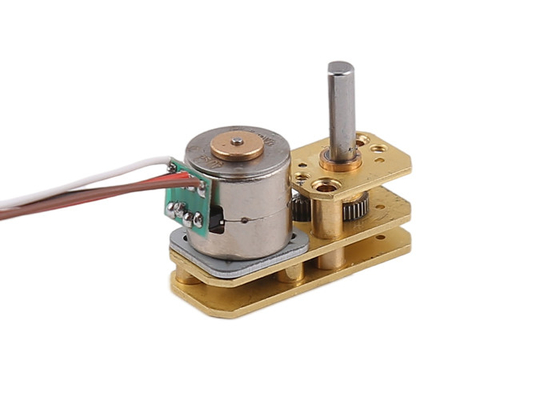

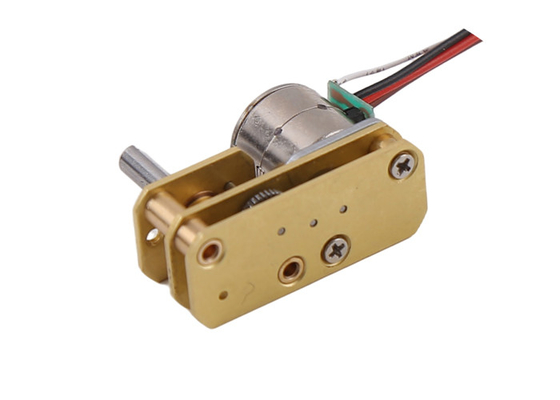

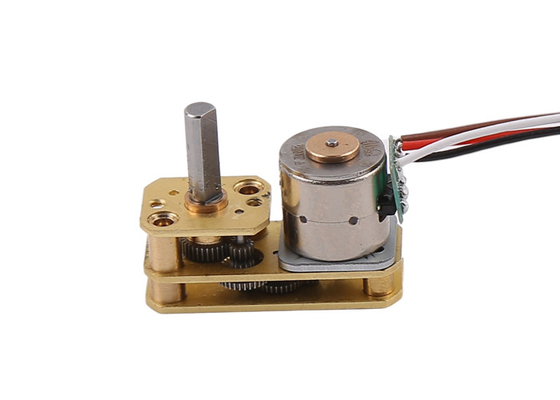

SM10-817G gear stepper motor display:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
SHAFT TYPES:
Out shaft standard as follows, also can customized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
