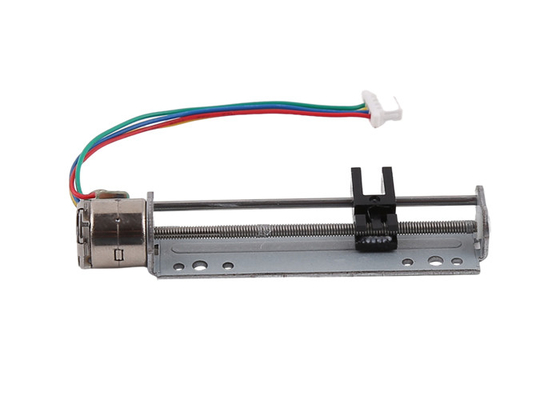

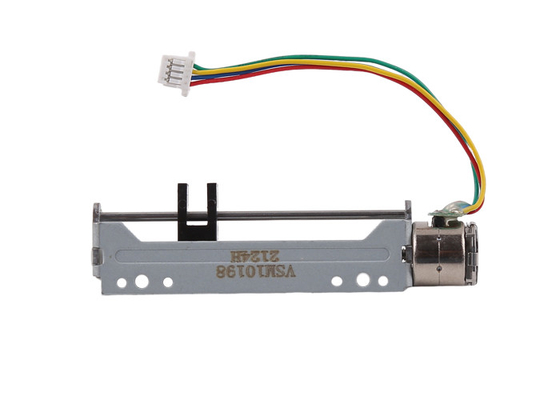

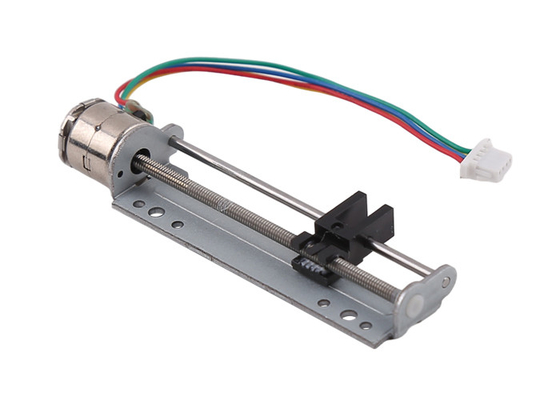

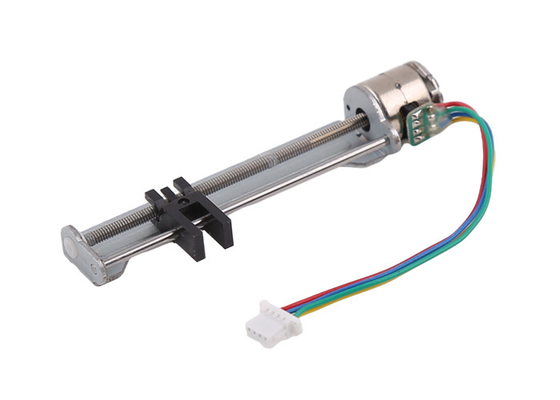

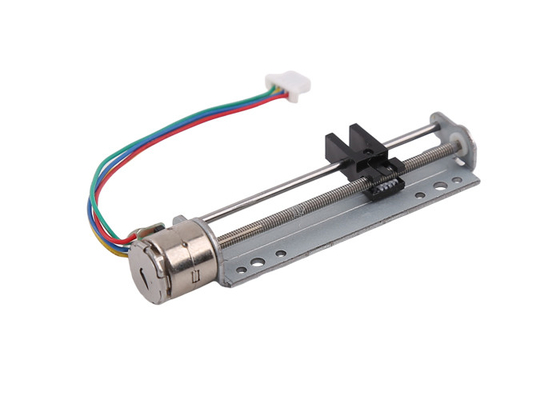

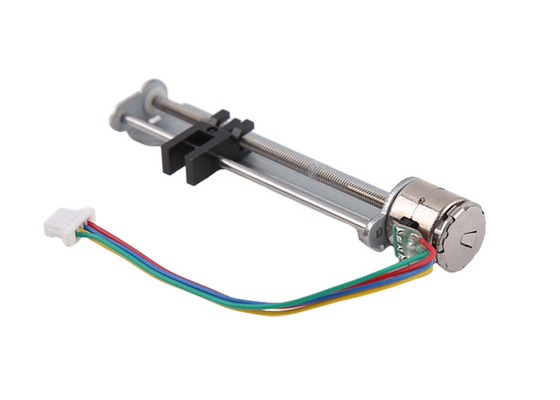

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g

  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
  • 18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10198
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 5-30 work days
Payment Terms T/T, Western Union, MoneyGram, Western Union
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 °/step Phase 2 Phases
Voltage 3.3~5V DV Resistance 10 ±10%Ohm
Type Linear Stepper Motor Stroke About 40mm
Thrust About 120g Diameter 10mm
Highlight

18deg Angle Micro Stepper Motor

,

Bracket Slider Micro Stepper Motor

,

Thrust 120g Linear Stepper Motor
Leave a Message
Product Description

18 ° step angle 10mm diameter micro stepper motor with bracket slider thrust 120g

This is a 10mm diameter linear running stepper motor, including a screw and a slider.

Motor resistance: 10 ohms per phase,

Suggested voltage: 3.3-5V DC

Step angle of 18 °/step, with a stroke of 0.02mm per step

The maximum effective stroke of the motor is 39mm

The slider can move linearly. The action of the motor is completely controlled by the driver.



This product can be used in conjunction with precision instruments or electronic products.

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g 0

Mechanical Dimension:MM

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g 1

Technical Features


It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Model No. VSM10198
Motor diameter 10mm
Resistance 10Ω/phase
Rated voltage 3.3-5V DC
No. of phases 2 phases
Step angle 18°/Step
Lead screw M2*P0.4
Travel per step 0.02mm
Effective stroke 39mm
Max starting frequency 1000 HZ( min)
Max reponse frequency 1200Hz(Min)
Pull-out thrust 120 g Min(500PPS)

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g 2

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g 3






Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

18 ° Step Angle 10mm Diameter Micro Stepper Motor With Bracket Slider Thrust 120g 4



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
