Nema 17 Hybrid Planetary Geared Stepper Motor 42mm Gear Reducer Stepper Motor For 3d Printer
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 42BYGH34-36PG19 |
| Minimum Order Quantity | 1Unit |
| Price | US$20~38 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle | 1.8 Degree | Gear Ratio | 1:3~1:720 |
|---|---|---|---|
| Gear Type | Planetary Gearbox | Motor Type | Hybrid Stepper Motor |
| Phase | 2 Phase | Voltage | 12VDC~48VDC |
| Wire | 4 Or 6 Wires | Certification | Ce, RoHS |
| Shaft | Customized Like D-cut, Round Or With Hole | Customized Like D-cut, Round Or With Hole | Sourcing Connector, Encoder, Brake And So On |
| High Light | Planetary Geared Stepper Motor,Nema17 Hybrid Geared Stepper Motor,42mm Gear Reducer Stepper Motor |
||
Product Description
nema 17Hybrid High Precision Planetary gear stepper motor 42mm geared gear reducer stepper motor for 3d printer
The 42mm Hybrid Stepper Motor Series is available with a high performance gear box. Our gearboxes come in a high efficiency, high accuracy planetary gear configuration. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
This is a 42mm square hybrid stepper motor (NEMA 17) mount with a planetary gearbox.
There are several gearbox ratio for you to choose, gear ratio from 3.71 to 719.98
Base on different gear stage, gearbox will have different length and efficiency.
1 stage: 32.2 mm length, 90% efficiency
2 stages: 40.0 mm length, 80% efficiency
3 stages: 50.0 mm length, 72% efficiency
4 stages: 57.0 mm length, 63% efficiency
Please let us know the following Parameter if we are lucky to attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements
Motor parameter data sheet
| Motor type | Hybrid stepper motor+planetary gearbox |
| Model | 42BYG34-36PG19 |
| Excitation mode | 2-2 bipolar |
| Output shaft | Φ8D7 |
| Gearbox type | Planetary gearbox |
| Stage & gear ratio |
1 stage 3.71 5.18 2 stages 13.76 19.22 26.83 3 stages 51.06 71.30 99.55 138.99 4 stages 189.45 264.52 369.32 516.66 719.98
|
| Output torque | Motor’s torque*gear ratio*gearbox efficiency |
| Current range | 0.4~1.7A/phase |
| Step angle | 0.9°/1.8° optional |
Motor Torque vs driving speed(pps)
Motor drawing:

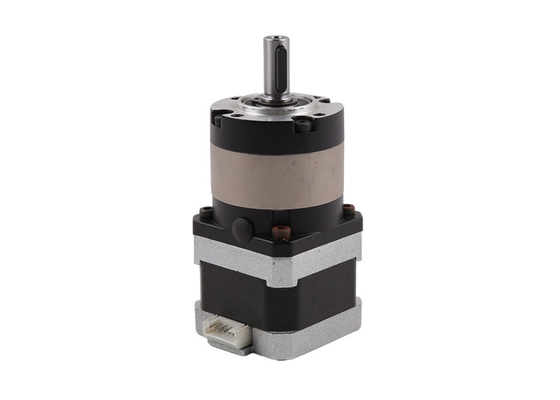

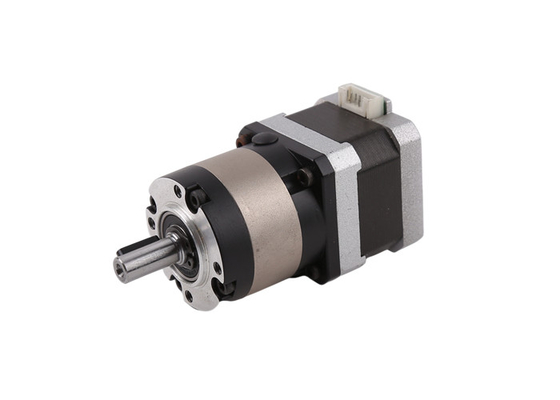

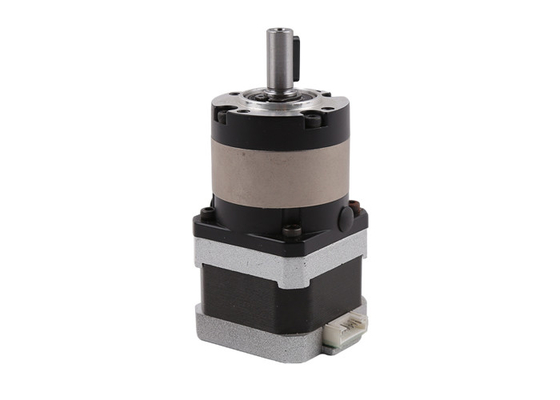

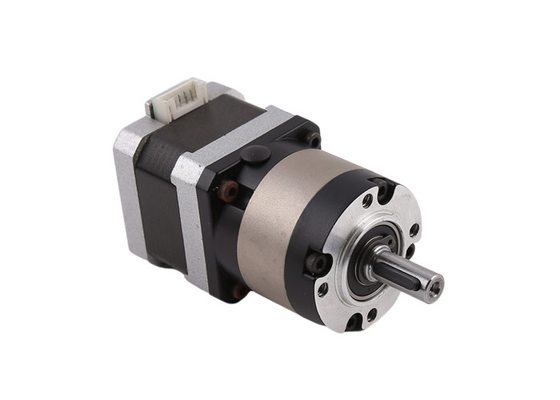

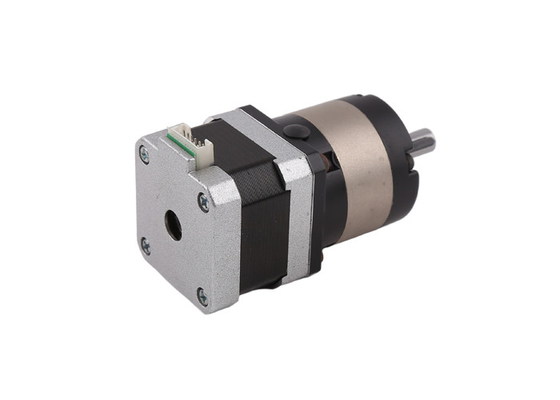

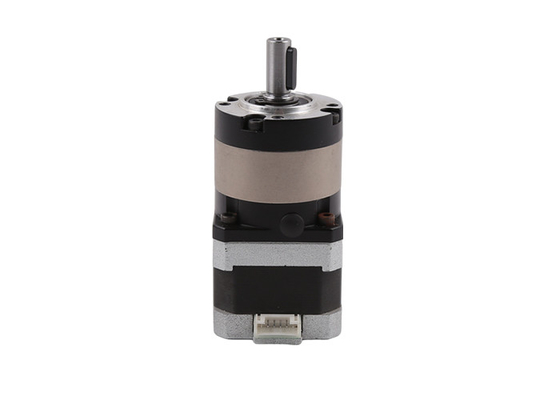

Product display:
