SM25 Micro Geared Stepper Motor 2 Phase 4 Wirer Bipolar Stepping Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM25-048S-8127G |
| Minimum Order Quantity | 1Unit |
| Price | $4~$8/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | PM Stepper Motor With Gearbox | Motor Size | 25mm |
|---|---|---|---|
| Step Angle | 7.5°/60 | Gear Ratio | 1:10 1:15 1:20 1:30 1:60 1:75 1:100 Standard |
| No.of Phase | 4 Phase | Winding Resistance | 100ΩZ±10%（25℃） |
| Phase Resistance | 10Ω±10% | Rated Voltage | 5V~12V |
| High Light | SM25 Micro Geared Stepper Motor,2 Phase Geared Stepper Motor,SM25 Bipolar Stepping Motor |
||
Product Description
SM25 Micro Geared Stepper Motor 2-phase 4-wirer Bipolar stepping motor
Description:
This is a permanent magnet motor of the SM25-048S-8127G with a gearbox on top.
This single motor has a step angle of 7.5 degrees and takes 48 steps to make one revolution (without the gearbox)
In addition, we have different gear ratios for you to choose, the gear ratio of this motor is 60:1.
So the step angle is 7.5 degrees/60
If you need this motor with gearbox, please feel free to contact me.
NOTED:
Transmission Shaft can be made according to customer's requirement.
APPLICATIONS:
Home Applience Air-conditioning
Refrigerator Intelligent Sanitary
Automatic Door Lock CCTV Monitor
Electronic Instrument
Motor Parameters:
| Motor type | Permanent magnet motor with gearbox |
| Motor diameter | 25mm |
| Voltage | 5V CD |
| Step Angle | 7.5°/60 |
| No.of Phase | 4 phase |
| Coil resistance | 10Ω±10%(25℃) |
| Holding torque | 4000 g*cm |
| Max pull-in rate | 700pps |
| pull-in torque at 200pps | 3000g.cm |
| Current per phase | 380mA |
Design drawing:

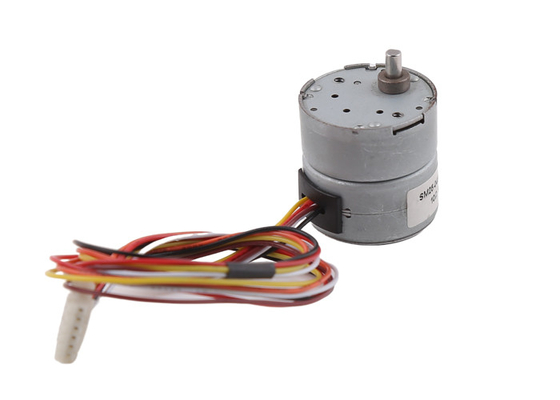

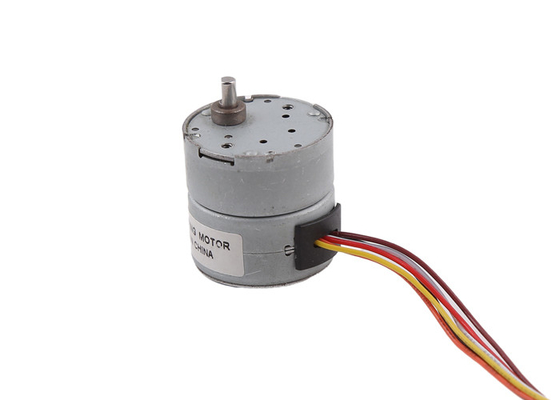

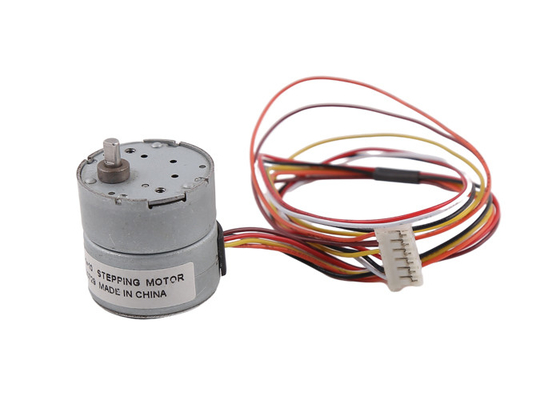

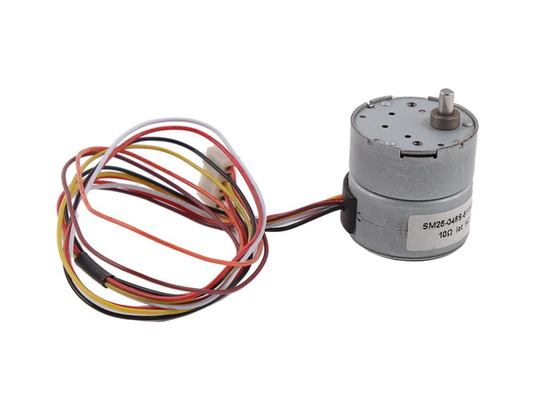

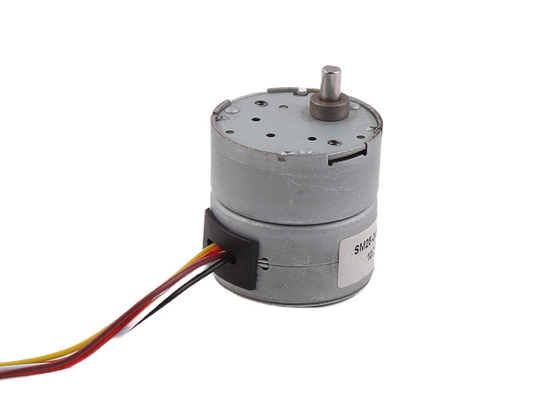

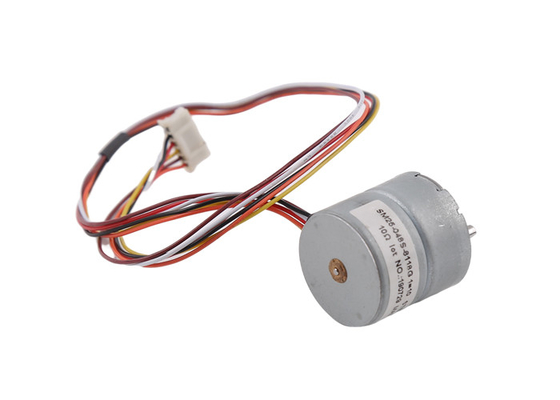

Product display:
Application of stepper motors:
Stepper motors are used for precision control and are widely used in medical equipment, 3D printers, industrial precision control, automation equipment, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.
If you need a stepper motor, please feel free to contact me.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
