Customized D Shaft 35HS42 NEMA 14 35mm Hybrid Stepper Motor With Worm Gearbox
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 35HS42+634JSX49 |
| Minimum Order Quantity | 1Unit |
| Price | $22~$42/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Hybrid Geared Stepper Motor | Gearbox Type | Worm Gearbox |
|---|---|---|---|
| Motor Size | 35mm (NEMA 14) | Motor Height | 42mm (Adjustable) |
| Gearbox Ratio | 49:1 (Adjustable) | Step Angle | 1.8°/gear Ratio |
| High Light | 35mm Hybrid Stepper Motor,Worm Gearbox Hybrid Stepper Motor,D Shaft Geared Stepper Motor |
||
Product Description
Customized D shaft 35HS42 NEMA 14 35mm hybrid stepper motor with worm gearbox
Description:
It’s a 35mm NEMA 14 hybrid stepper motor with a worm gearbox.
There is a mounting plate between motor and gearbox.
The height of stepper motor 42mm and we have multiple height for choosing.
The gear ratio is 49:1, and gear ratio is adjustable based on customer’s speed and torque requirement.
The shaft length is also customizable.
We can adjust shaft’s length as well.
Parameters:
| Motor type | Hybrid stepper motor+worm gearbox |
| Model No. | 35HS42+634JSX49 |
| Step angle | 1.8 degree |
| Resistance | 4Ω/phase |
| Rated current | 1A/phase |
| Motor height | 28 / 34 / 42 mm |
| Gear ratio | 49:1 |
| Output shaft length | 15mm |
Design drawing:

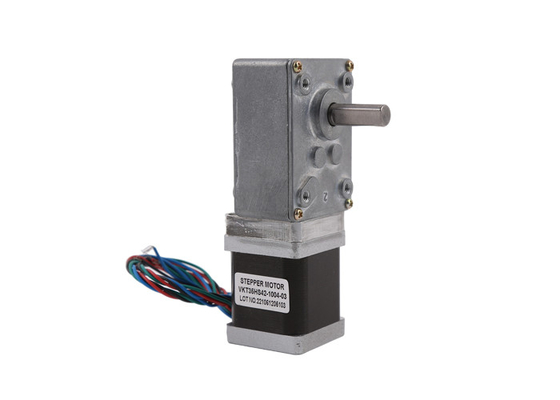

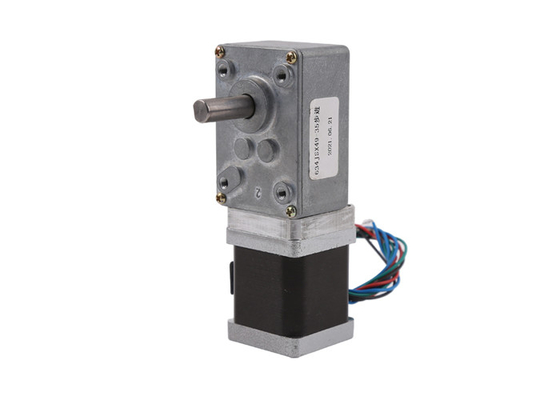

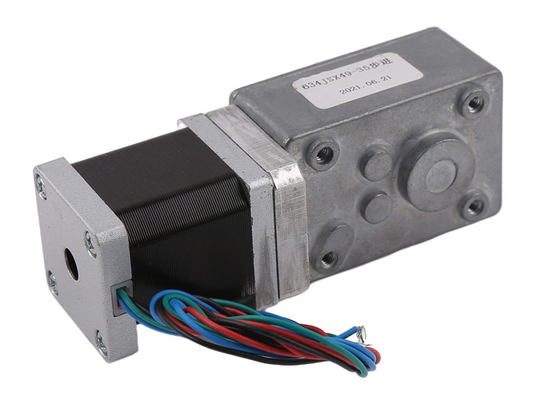

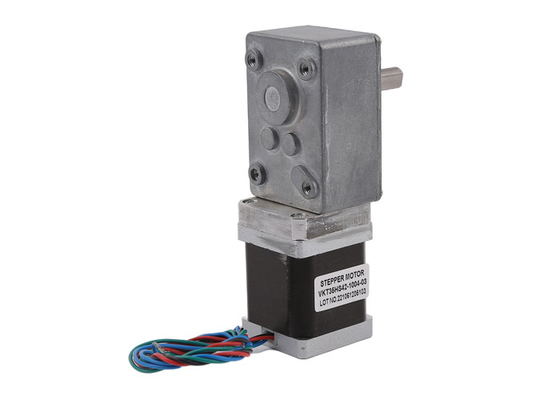

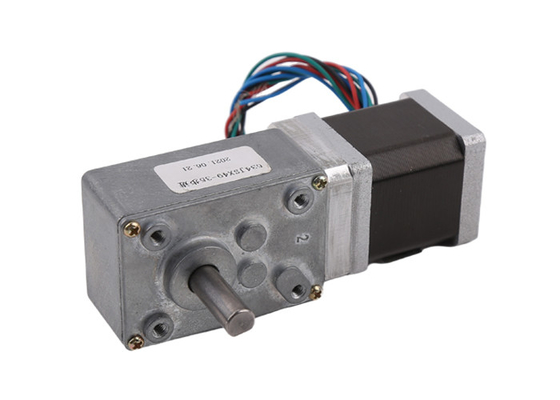

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Notes about hybrid stepper motors:
Customers should follow the principle of “selecting stepper motors first, then select driver based on existing stepper motor”
It is best not to use the full-step driving mode to drive a hybrid stepping motor, and the vibration is bigger under full-step driving.
Hybrid stepper motor is more suitable for low-speed occasions. We suggest the speed does not exceed 1000 rpm (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be attached with a gearbox to lower it’s speed. The motor has high working efficiency and low noise at suitable frequency.
Due to historical reasons, only the motor with a nominal 12V voltage uses 12V. Other rated voltage on design drawing is not exactly the most suitable driving voltage for the motor. Customers should choose suitable driving voltage and suitable driver based on own requirement.
When the motor is used with high speed or large load, it generally does not start at the working speed directly. We suggest to gradually increases the frequency and speed. For two reasons: First, the motor does not lose steps, and second, it can reduce noise and improve the positioning accuracy.
The motor should not work in the vibration area(below 600 PPS ). If it must be used at slow speed, vibration problem could be reduced by changing the voltage, current or adding some damping.
When the motor works below 600PPS (0.9 degrees), it should be driven by small current, large inductance and low voltage.
For loads with a large moment of inertia, a large size motor should be selected.
When higher precision is required, it could be solved by adding gearbox, increasing the motor speed, or using subdivision driving. Also a 5-phase motor(unipolar motor) could be used, but the price of the entire system is relatively expensive, so it’s rarely used.
