10mm Diameter Micro Geared Stepper Motor With Adjustable M3 Lead Screw Shaft
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 10-816G-M3 |
| Minimum Order Quantity | 1Unit |
| Price | $3.5~$7/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Gearbox Stepper Motor | Motor Size | 10mm Diameter |
|---|---|---|---|
| Step Angle | 18°/ Gear Ratio | Resistance | 20Ω/40Ω |
| Gear Ratio | From 2:1 To 1000:1 | Output Shaft | M3*0.5P Lead Screw |
| High Light | 10mm Diameter Geared Stepper Motor,Micro Geared Stepper Motor,M3 Lead Screw Shaft Motor |
||
Product Description
10-816G-M3 Gearbox Reducer Stepper Motor With Adjustable M3 Lead Screw Shaft
Description:
This is a 10mm diameter stepper motor attached with a 10*12mm gearbox.
Output shaft is standard M3 lead screw shaft, and we can also change it into D shaft.
Lead screw length is adjustable, based on customer’s own need.
We have multiple gear ratio for option, from 2:1 to 1000:1.
With a bigger gear ratio, output torque is bigger, and output speed is slower.
Customer need to choose a suitable gear ratio first.
We have two different coil resistance: 20Ω/ 40Ω
With higher resistance, motor will have higher rated voltage.
Motor Parameters:
| Model No. | 10-816G-M3 |
| Motor type | 10mm stepper motor |
| Output shaft | M3*0.5P |
| Coil resistance | 20Ω/40Ω |
| Step angle | 18°/step angle |
| Rated voltage | 3.3~5V DC |
| Phase No. | 2 phases (4 wires) |
Gearbox Parameters:
| Gear ratio | 2:1 | 5:1 | 10:1 | 15:1 | 20:1 | 30:1 | 36:1 | 50:1 | 63:1 | 67:1 | 89:1 | 100:1 |
| Precise ratio | 2.002 | 4.995 | 9.677 | 14.754 | 20.501 | 29.120 | 36.122 | 51.103 | 63.071 | 66.801 | 89.227 | 99.002 |
| Tooth number | 23 | 20 | 13 | 18 | 15 | 12 | 20 | 20 | 14 | 17 | 14 | 13 |
| Gear levels | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| Efficiency | 80% | 80% | 80% | 72% | 72% | 72% | 65% | 65% | 65% | 65% | 65% | 65% |
| Gear ratio | 110:1 | 150:1 | 172:1 | 210:1 | 250:1 | 275:1 | 298:1 | 380:1 | 420:1 | 500:1 | 600:1 | 1000:1 |
| Precise ratio | 110.407 | 150.948 | 171.883 | 210.591 | 250.111 | 274.403 | 297.924 | 387.689 | 421.296 | 506.155 | 599.394 | 986.406 |
| Tooth number | 12 | 18 | 13 | 12 | 13 | 12 | 12 | 12 | 12 | 18 | 16 | 12 |
| Gear levels | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 7 | 7 | 7 |
| Efficiency | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 47% | 47% | 47% |
Design drawing:

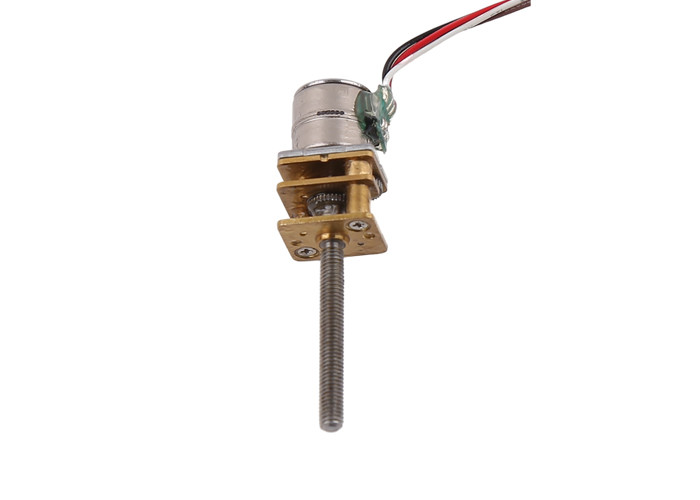

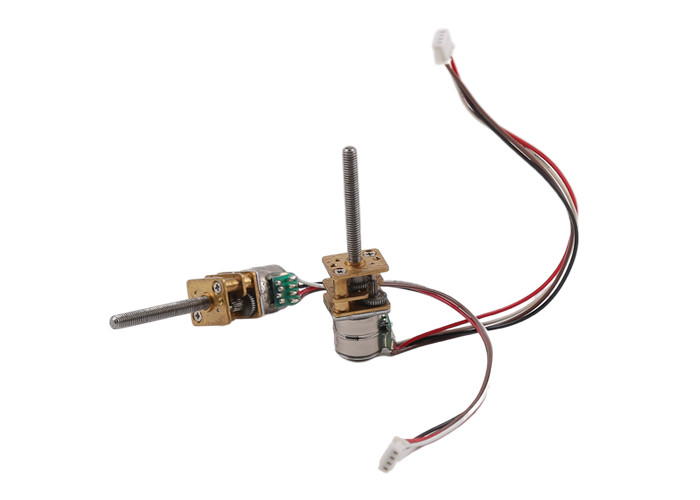

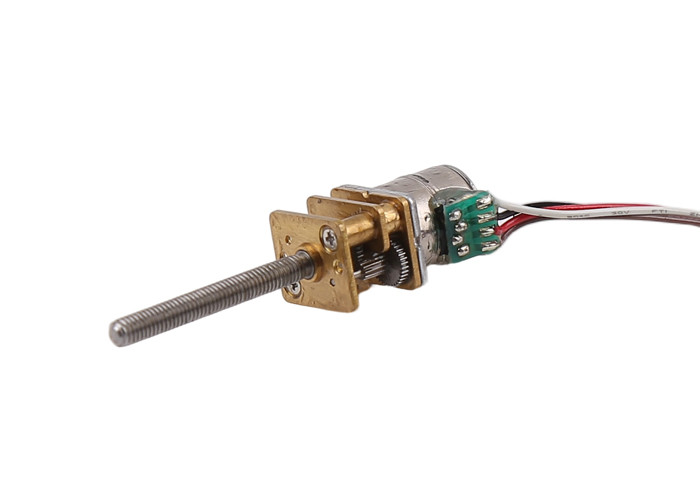

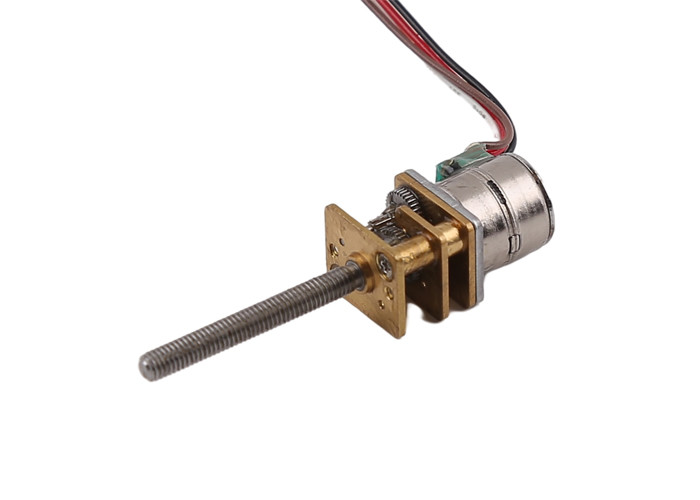

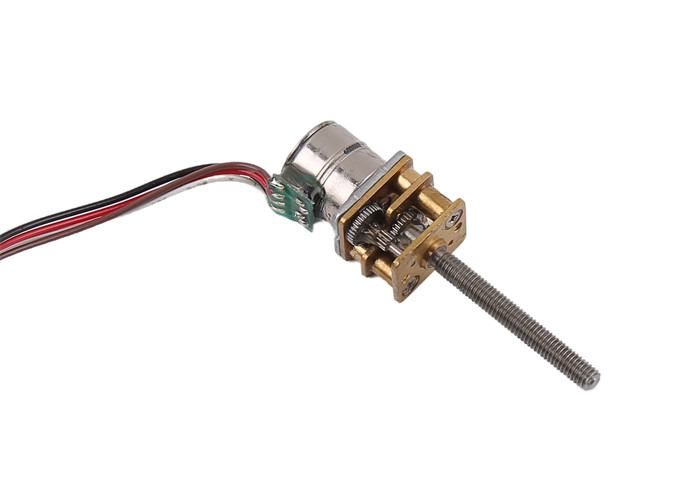

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
