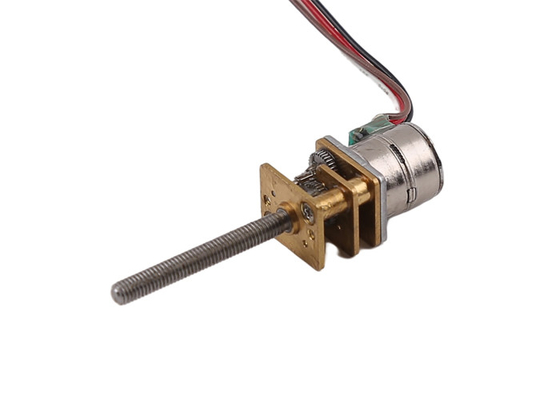

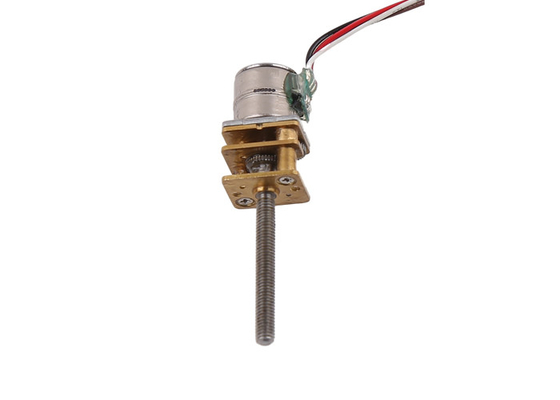

Medical Equipment Micro Stepper Motor 10mm 2 Phase 4 Wire With Lead Screw
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-816G |
| Minimum Order Quantity | 1 pc |
| Price | US$2.85~7 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Geared Stepper Motor | Phase | 2-2 |
|---|---|---|---|
| Current / Phase | 0.4A | Step Angle | 18/i Degrees（i Gear Ratio） |
| Rated Voltage | 5V Or As Request | Application | Household Appliances,Optical Fiber Fusion Splicer， Medical Machine |
| Gear Ratio | 2~1000:1 | Gear Type | Geard Stepper Motor |
| Highlight | Lead Screw Stepper Motor 10mm,Micro Stepper Motor 2Phase,Medical Equipment Micro Stepper Motor |
||
Product Description
Medical Equipment Micro Stepper Motor 10mm 2 Phase 4 Wire With Lead Screw
VSM10-816G is the use of diameter 10MM micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
The selectable ratios are
1:2 1:5 1:10 1:15 1:20 1:30 1:36 1:50 1:63 1:67 1:89 1:100 1:110 1:150 1:172 1:210 1: 250 1:275 1:298 1:380 1:420 1:500 1:600 1:1000, the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the cir cutular axis, D axis, and the wire rod!
SM10-816G gearbox stepper main parameters:
| PRODUCT NAME | 10 mm geared stepper motor |
| MODEL | SM10-816G |
| RESISTENCE | 40Ω±7% (optional 20 15 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 2~1000 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~150rpm) |
SM10-816 gear stepper motor out drawing:
SM10-816gear stepper torque curve:
Since there are many speed options, the output torque can be the torque * speed ratio * efficiency of the motor, and the specific situation will generally be determined after testing the actual sample. The following is the torque curve of the SM10 stepper motor for reference.

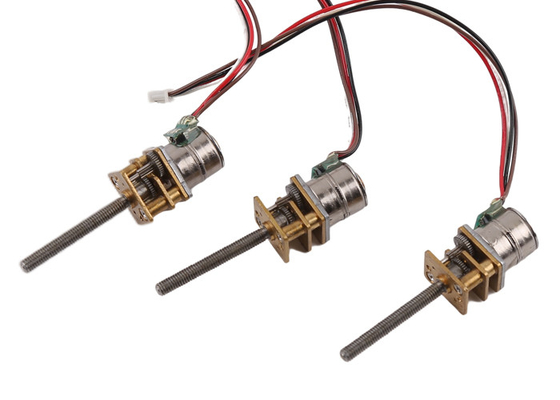

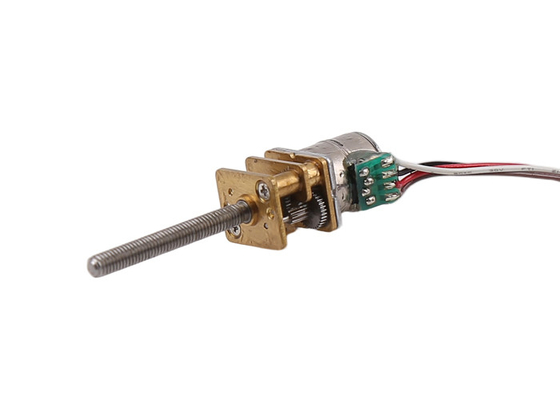

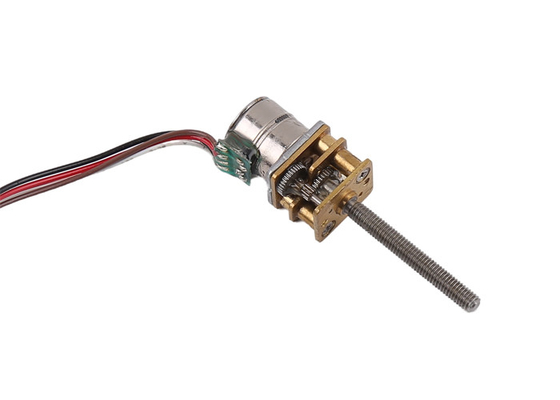

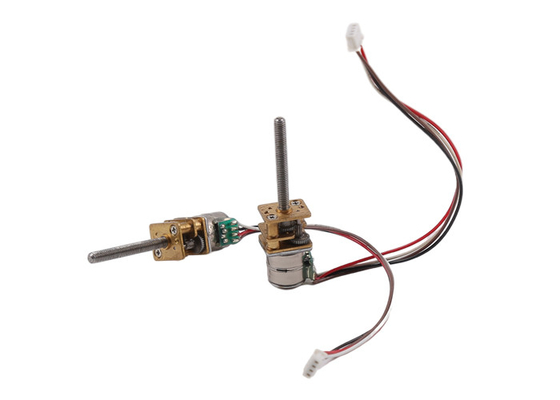

SM10-816 gear stepper motor display:
