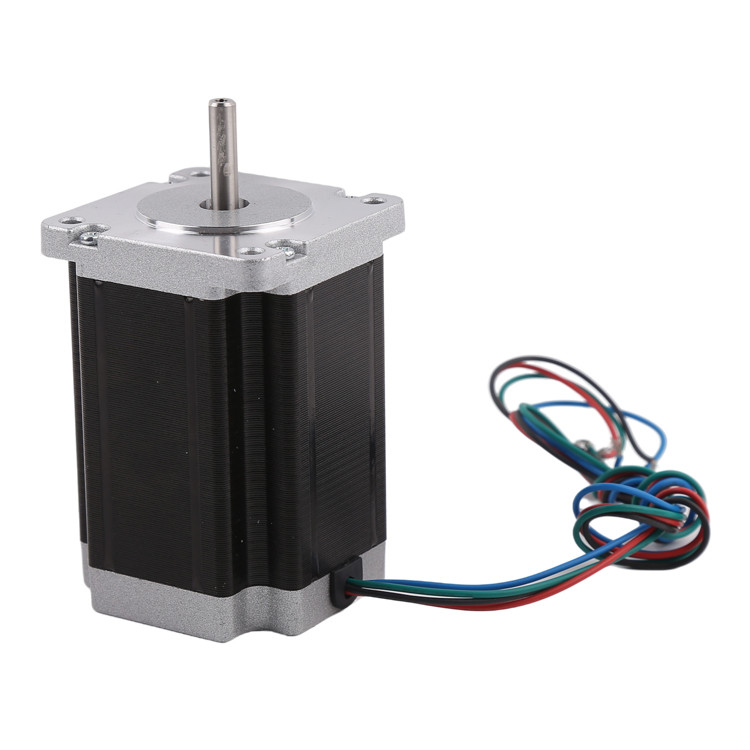

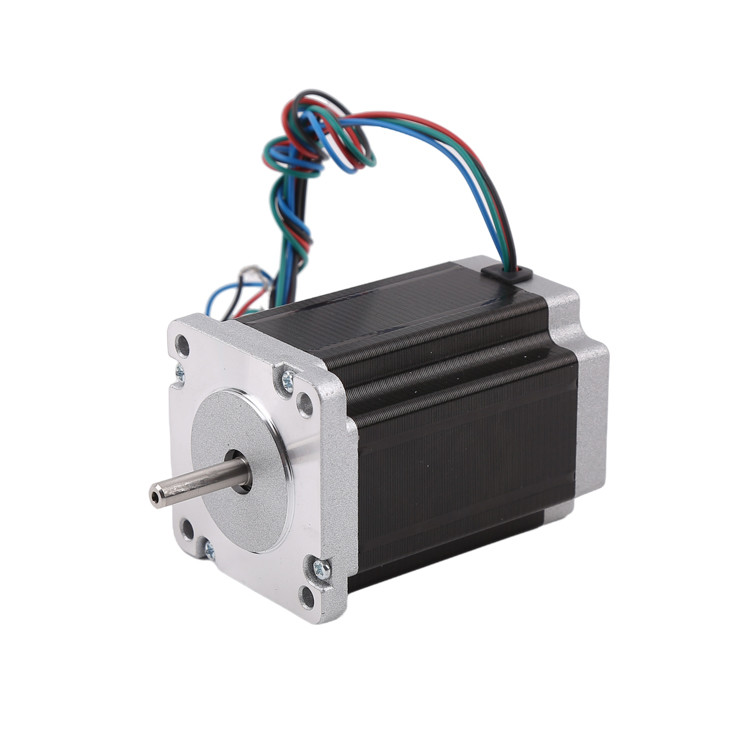

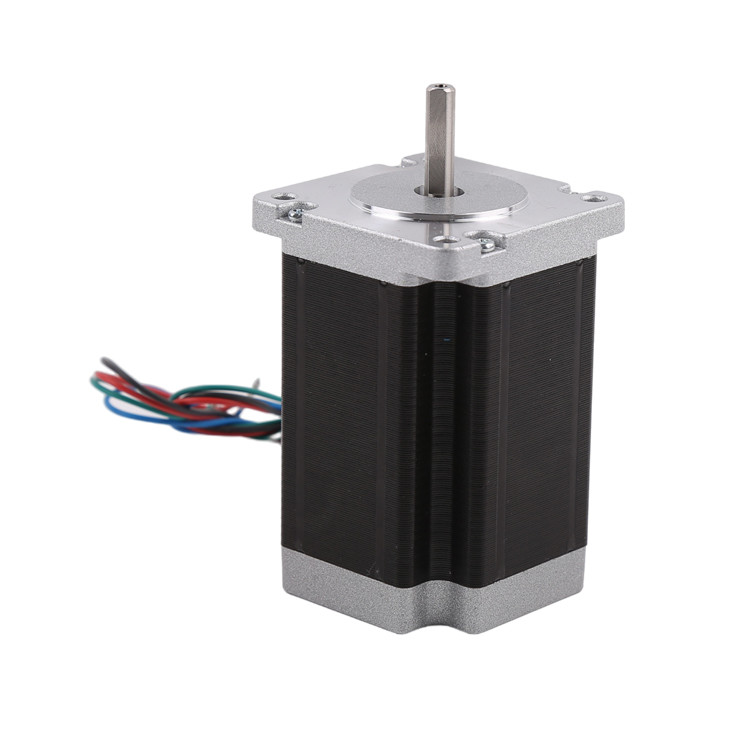

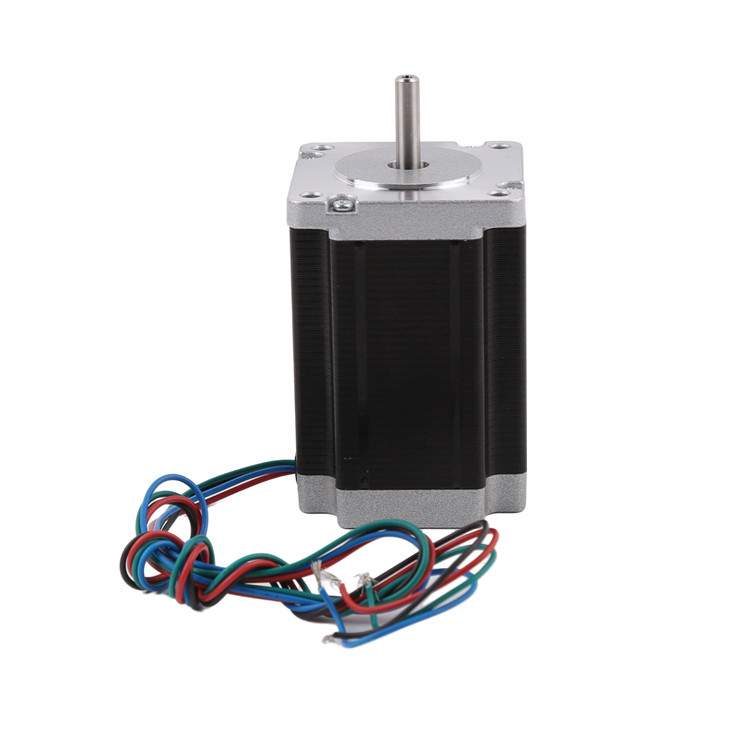

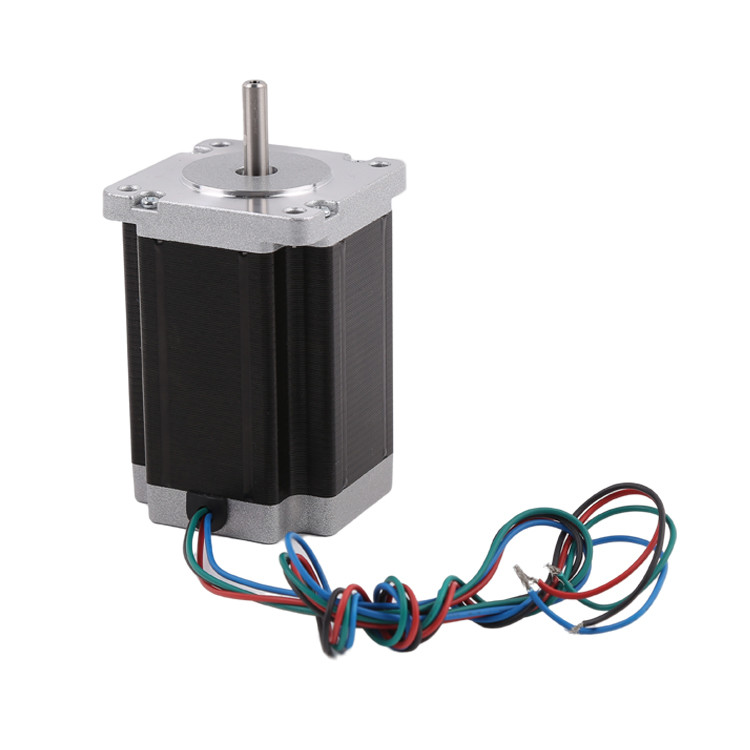

High Torque NEMA 23 Hybrid Stepper Motor 57mm Motor Diameter

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 57HS
Minimum Order Quantity 1Unit
Price $25 - $45 / Units
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Motor Type Hybrid Stepper Motor Step Angle 0.9°or 1.8°
Motor Size 57mm(NEMA 23) No. Of Phases 2 Phases (bipolar)
Rated Current 1~4.2A/phase Motor Length 41~112mm
Minimum Order Quantity 1unit
High Light

NEMA 23 Hybrid Stepper Motor


Hybrid Stepper Motor 57mm


NEMA 23 Stepper Motor 57mm

Leave a Message
Product Description

High Torque NEMA 23 Hybrid Stepper Motor 57mm Motor Diameter


This is a NEMA 23 57mm diameter hybrid stepper motor.
The step angle has 1.8 degree and 0.9 degree for customers to choose.
Motor heights are 41mm,51mm,56mm,76mm,100mm,112mm,
The weight and torque of the motor is related to its height.
The standard output shaft of the motor is the D-shaft, which can also be replaced with a trapezoidal lead screw shaft.
Customers choose the parameters below according to their needs. Please feel free to contact us with any questions about the motor, and we will provide more professional support.



Step Angle


Motor length


Holding torque










No. of


Rotational inertia




0.9 41 3.9 1 5.7 0.7 6 120 0.45
1.8 41 3.9 2 1.4 1.4 8 150 0.47
0.9 51 7.2 2 1.6 2.2 6 280 0.59
1.8 51 3009 2 1.8 2.7 8 230 0.59
0.9 56 12 2.8 0.9 3.3 4 300 0.7
1.8 56 9 2 1.8 2.5 6 280 0.68
0.9 76 18 2.8 1.15 5.6 4 480 1
1.8 76 13.5 3 1 1.6 6 440 1.1
1.8 100 30 4.2 0.75 3 4 700 1.3
1.8 112 31 4.2 0.9 3.8 4 800 1.4

Above parameters are standard products for reference, motor can be customized based on customer's requirement.

Design drawing

werwe 2

Basic structure of NEMA stepper motors

ereww 3

Application of Hybrid stepper motor

Due to high resolution of hybrid stepper motor’s (200 or 400 steps per revolution), they are widely used for applications requiring high precision, such as:
3D printing
Industrial control(CNC, automatic milling machine, textile machinery)
Computer peripherals
Packing machine
And other automatic systems requiring high precision control.

erew 4

ApplicationNotes about hybrid stepper motors

Customers should follow the principle of “selecting stepper motors first, then select driver based on existing stepper motor”
It is best not to use the full-step driving mode to drive a hybrid stepping motor, and the vibration is bigger under full-step driving.
Hybrid stepper motor is more suitable for low-speed occasions. We suggest the speed does not exceed 1000 rpm (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be attached with a gearbox to lower it’s speed. The motor has high working efficiency and low noise at suitable frequency.
Due to historical reasons, only the motor with a nominal 12V voltage uses 12V. Other rated voltage on design drawing is not exactly the most suitable driving voltage for the motor. Customers should choose suitable driving voltage and suitable driver based on own requirement.
When the motor is used with high speed or large load, it generally does not start at the working speed directly. We suggest to gradually increases the frequency and speed. For two reasons: First, the motor does not lose steps, and second, it can reduce noise and improve the positioning accuracy.
The motor should not work in the vibration area(below 600 PPS ). If it must be used at slow speed, vibration problem could be reduced by changing the voltage, current or adding some damping.
When the motor works below 600PPS (0.9 degrees), it should be driven by small current, large inductance and low voltage.
For loads with a large moment of inertia, a large size motor should be selected.
When higher precision is required, it could be solved by adding gearbox, increasing the motor speed, or using subdivision driving. Also a 5-phase motor(unipolar motor) could be used, but the price of the entire system is relatively expensive, so it’s rarely used.
Stepper motor size:
We currently have 20mm(NEMA8), 28mm(NEMA11), 35mm(NEMA14), 42mm(NEMA17), 57mm(NEMA23), 86mm(NEMA34) hybrid stepper motors. We suggest to determine motor size first, then confirm other parameter, when you select a hybrid stepper motor.

Customization service

Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

rew 4

Lead Time

If we have samples in stock, we can ship out samples in 3 days.
If we do not have samples in stock, we need to produce them, production time is about 20 calendar days.
For mass production, lead time depends on order quantity.

Payment method and payment terms

For samples, in general we accept Paypal or alibaba.
For mass production, we accept T/T payment.
For samples, we collect full payment before production.
For mass production, we can accept 50% pre-payment before production, and collect the rest 50% payment before shipment.
After we cooperate order more than 6 times, we could negotiate other payment terms such as A/S (after sight)


1.How long is the general delivery time for samples? How long is the delivery time for back-end large orders?
Sample order lead-time is about 15 days,mass quantity order lead -time is 25-30 days.

2. Do you accept custom services?
We accept products customize.including the motor parameter,lead wire type,out shaft etc.

3. Is it possible to add an encoder to this motor?
For this type motor, we can adding encoder on the motor wear cap.

Frequently Asked Question

1.Causes and solutions for increased load on stepper motors after long-term use
Cause: In some cases, stepper motors can run normally for a long time, but after a period of time they will lose steps. In this case, the load on the stepper motor is likely to have changed. It may come from the wear of stepper motor bearings or from external influences.
①Verify that the external environment has not changed: Has the mechanism of the motor drive changed?
②Verify bearing wear: Use ball bearings instead of bushings to extend motor life.
③Verify that the ambient temperature has not changed. For micro motors, the effect of bearing grease viscosity is not negligible. Use grease that is suitable for the operating range. (e.g. grease may become viscous at extreme temperatures, or under prolonged use thereby increasing motor load)

2.Stepper motor heating causes
①The current set by the driver is larger than the rated current of the motor
②the speed of the motor is too fast
③the motor itself has a large inertia and positioning torque, so even medium-speed operation will be hot, but does not affect the life of the motor. The demagnetization point of the motor in 130-200 ℃, so the motor in 70-90 ℃ is a normal phenomenon, as long as less than 130 ℃ is generally no problem, if you really feel overheated, the drive current is set to about 70% of the rated motor current or motor speed to reduce some.

3.When the stepper motor is powered on, the motor shaft does not rotate how to do?
There are several reasons why the motor does not rotate.:
A.Overload blocking rotation
B.whether the motor has been damaged
C.whether the motor is offline
D.whether the pulse signal CP to zero
