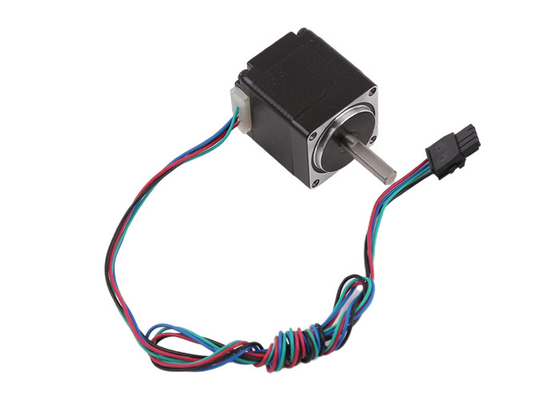

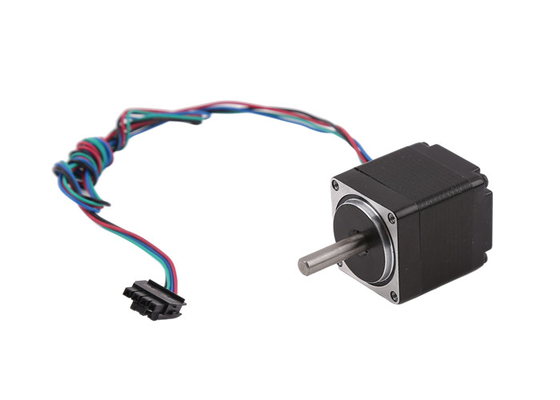

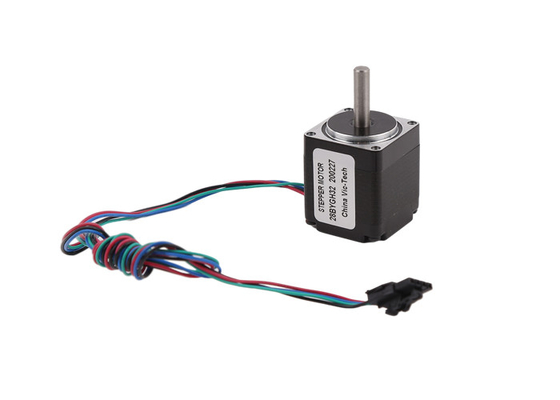

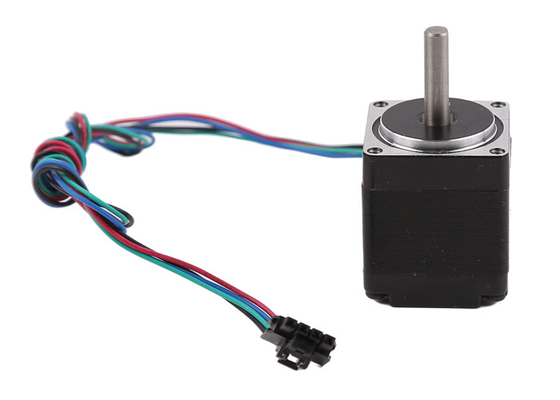

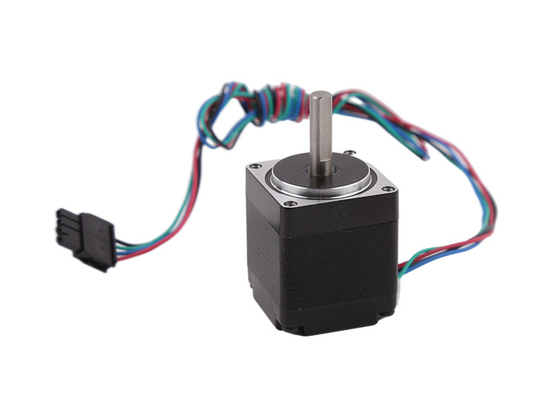

28mm Size NEMA11 Hybrid Stepper Motor 1.8 Degree Step Angle D Shaft Various Height

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 28HS32
Minimum Order Quantity 1Unit
Price $4-10/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Motor Type Hybrid Stepper Motor Step Angle 1.8°/step
Motor Size 28mm(NEMA 11) No. Of Phases 2 Phases (bipolar)
Motor Length 32~51mm Minimum Order Quantity 1unit
High Light

NEMA11 Hybrid Stepper Motor


28mm Hybrid Stepper Motor


D Shaft 1.8Degree Stepper Motor

Leave a Message
Product Description
28mm Size NEMA11 Hybrid Stepper Motor 1.8 Degree Step Angle D Shaft Various Height


This is 28mm size(NEMA 11) Hybrid stepper motor with D output shaft.
The step angle is regular 1.8°/step.
We have different height for you to choose, from 32mm to 51mm.
With bigger height, motor with have higher torque, and the price is also higher.
It depends on customer’s required torque and space, to decide which height is the most suitable.

In general, the motors we produce the most are bipolar motors(4 wires), we also have unipolar motors available, if customers want to drive this motor with 6 wires(4 phases).



Step Angle


Motor length


Holding torque










No. of


Rotational inertia




1.8 32 430 0.95 2.8 0.8 6 9 0.11
1.8 32 600 0.67 5.6 3.4 4 9 0.11
1.8 45 750 0.95 3.4 1.2 6 12 0.14
1.8 45 950 0.67 6.8 4.9 4 12 0.14
1.8 51 900 0.95 4.6 1.8 6 18 0.2
1.8 51 1200 0.67 9.2 7.2 4 18 0.2

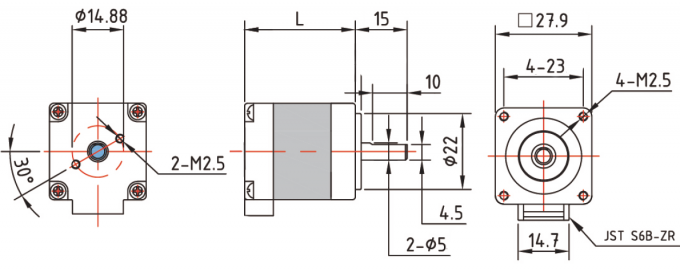

Design Drawing


About hybrid stepper motor

Hybrid stepper motors are in general square shape, and a stepper motor can be identified by its unique outer shape.
A hybrid stepper motor has 1.8°step angle(200 step/revolution) or 0.9°step angle (400 steps/revolution). Step angle is determined by tooth number on rotor’s laminations.

There are to ways to name a hybrid stepper motor:
By Metric unit (unit: mm) or by Imperial unit (unit: inch)
For example, a 42mm motor = a 1.7 inch stepper motor.
So a 42mm motor can also be called as NEMA 17 motor.

Explanation of hybrid stepper motor’s name:
For example, 42HS40 stepper motor:
42 means the size is 42mm, so it’s a NEMA17 motor.
HS means Hybrid Stepper motor.
40 means the height is 40mm motor.
We have different height for customers to choose, with bigger height, a motor will have higher torque, bigger weight, and higher price.

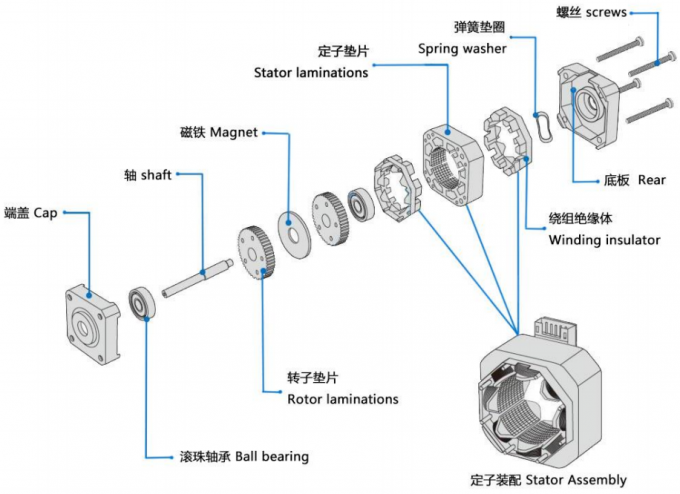

Here is internal structure of a regular hybrid stepper motor.

Basic structure of NEMA stepper motors


Application of Hybrid stepper motor

Due to high resolution of hybrid stepper motor’s (200 or 400 steps per revolution), they are widely used for applications requiring high precision, such as:
3D printing
Industrial control(CNC, automatic milling machine, textile machinery)
Computer peripherals
Packing machine
And other automatic systems requiring high precision control.


Notes about hybrid stepper motors

Customers should follow the principle of “selecting stepper motors first, then select driver based on existing stepper motor”
It is best not to use the full-step driving mode to drive a hybrid stepping motor, and the vibration is bigger under full-step driving.
Hybrid stepper motor is more suitable for low-speed occasions. We suggest the speed does not exceed 1000 rpm (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be attached with a gearbox to lower it’s speed. The motor has high working efficiency and low noise at suitable frequency.
Due to historical reasons, only the motor with a nominal 12V voltage uses 12V. Other rated voltage on design drawing is not exactly the most suitable driving voltage for the motor. Customers should choose suitable driving voltage and suitable driver based on own requirement.
When the motor is used with high speed or large load, it generally does not start at the working speed directly. We suggest to gradually increases the frequency and speed. For two reasons: First, the motor does not lose steps, and second, it can reduce noise and improve the positioning accuracy.
The motor should not work in the vibration area(below 600 PPS ). If it must be used at slow speed, vibration problem could be reduced by changing the voltage, current or adding some damping.
When the motor works below 600PPS (0.9 degrees), it should be driven by small current, large inductance and low voltage.
For loads with a large moment of inertia, a large size motor should be selected.
When higher precision is required, it could be solved by adding gearbox, increasing the motor speed, or using subdivision driving. Also a 5-phase motor(unipolar motor) could be used, but the price of the entire system is relatively expensive, so it’s rarely used.

Stepper motor size:
We currently have 20mm(NEMA8), 28mm(NEMA11), 35mm(NEMA14), 42mm(NEMA17), 57mm(NEMA23), 86mm(NEMA34) hybrid stepper motors. We suggest to determine motor size first, then confirm other parameter, when you select a hybrid stepper motor.

Customization Service

We provide customization service on motor including lead wire number(4wires/6wires/8wires), coil resistance, cable length and color, also we have multiple height for customers to choose.
Regular output shaft is D shaft, if customers require leads screw shaft, we provide customization service on lead screws, and you can adjust lead screw type and shaft length.

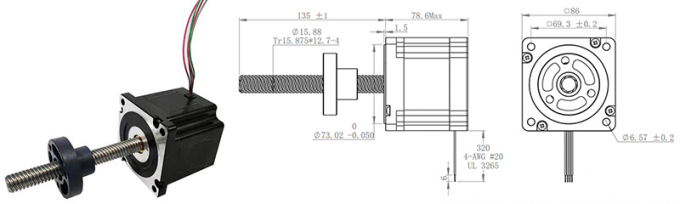

Picture below is a typical hybrid stepper motor with trapezoidal lead screw.


NEMA stepper motor type


Lead Time and Packaging Information

If we have samples in stock, we can ship out samples in 3 days.
If we do not have samples in stock, we need to produce them, production time is about 20 calendar days.
For mass production, lead time depends on order quantity.

Payment method and payment terms

For samples, in general we accept Paypal or alibaba.
For mass production, we accept T/T payment.

For samples, we collect full payment before production.
For mass production, we can accept 50% pre-payment before production, and collect the rest 50% payment before shipment.
After we cooperate order more than 6 times, we could negotiate other payment terms such as A/S (after sight)
