5000-30000RPM Worm Gearbox N20 DC Motor With Custom Encoder
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | N20-1812 Worm Gear motor |
| Minimum Order Quantity | 1Unit |
| Price | $3~$8.5/unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | N20 Worm Gearbox With Encoder | Motor Type | Worm Gearbox DC Motor |
|---|---|---|---|
| Motor Unload Speed | 5000-30000RPM | Shaft Diameter | 3mm Customizable |
| Encoder Resolution | 3ppr 6ppr 7ppr 12ppr | Available Motor Types | N20 N30 N50 |
| Minimum Order Quantity | 1unit | ||
| High Light | Worm Gearbox N20 DC Motor,Custom Encoder N20 DC Motor,30000RPM Worm Gearbox Motor |
||
Product Description
Description

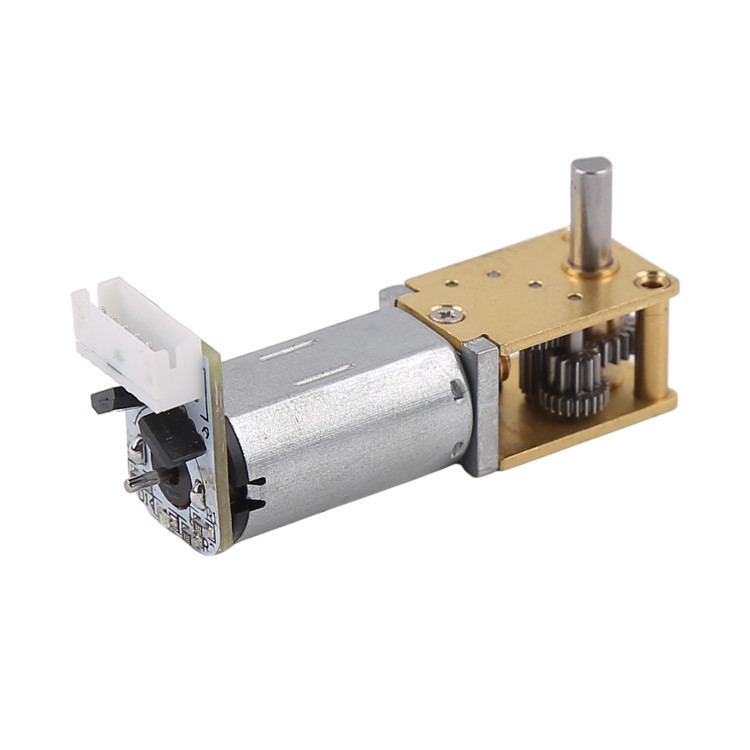

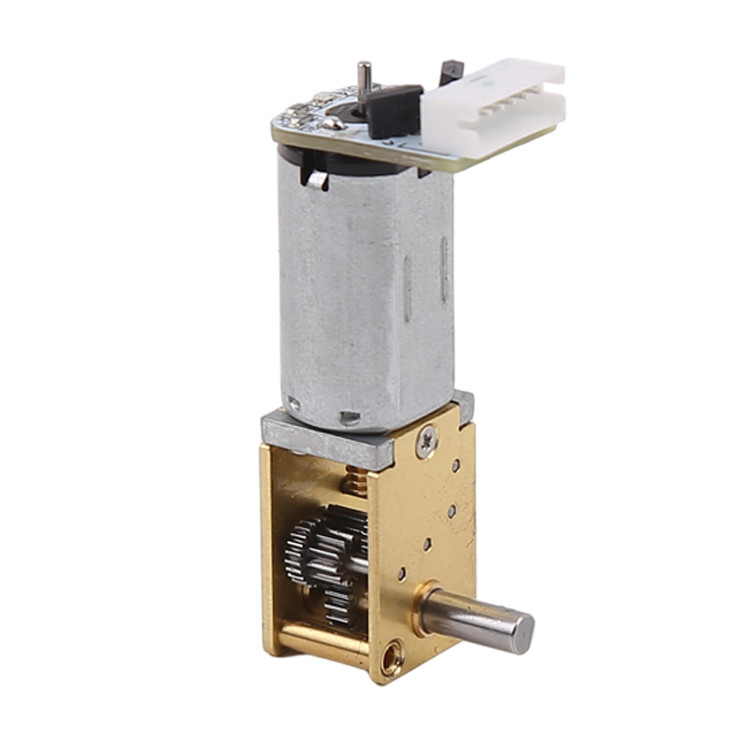

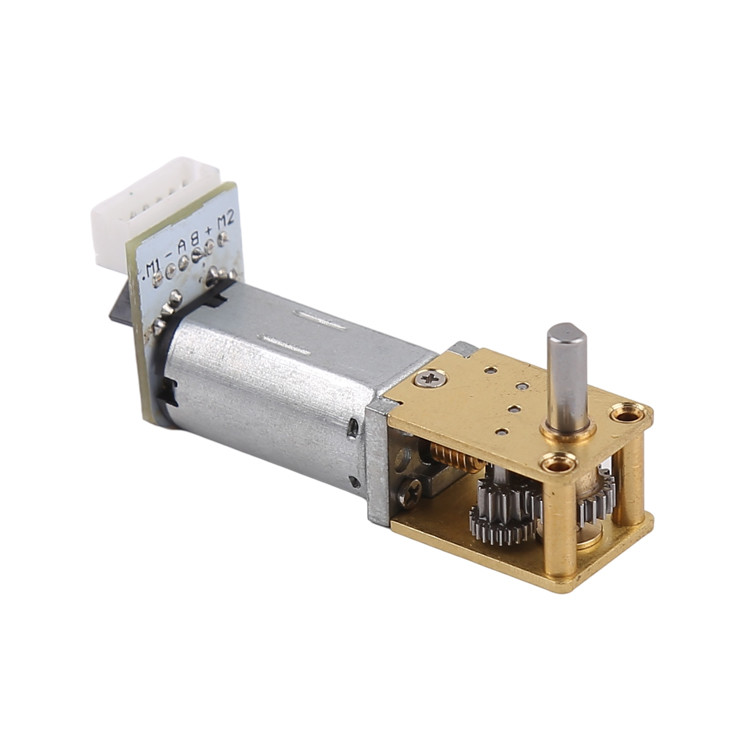

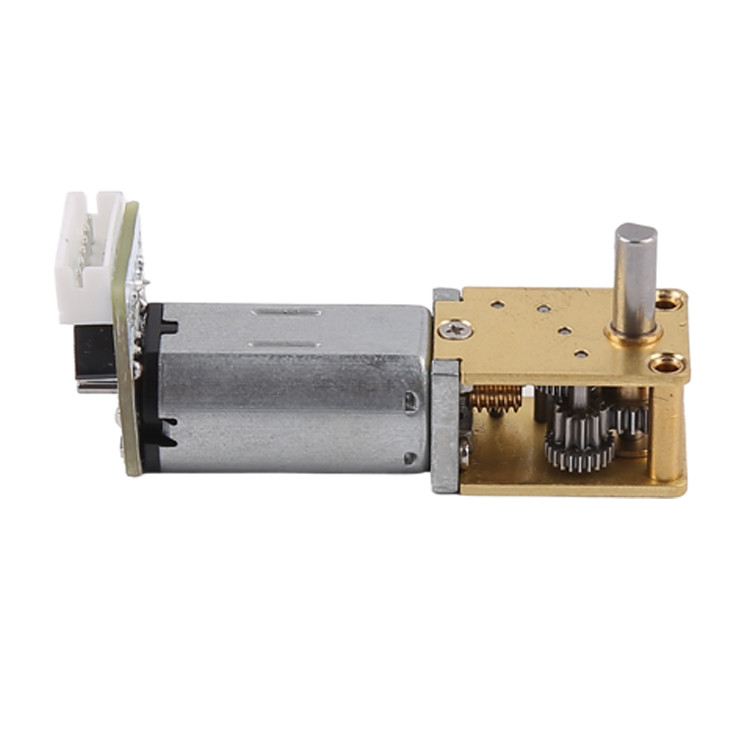

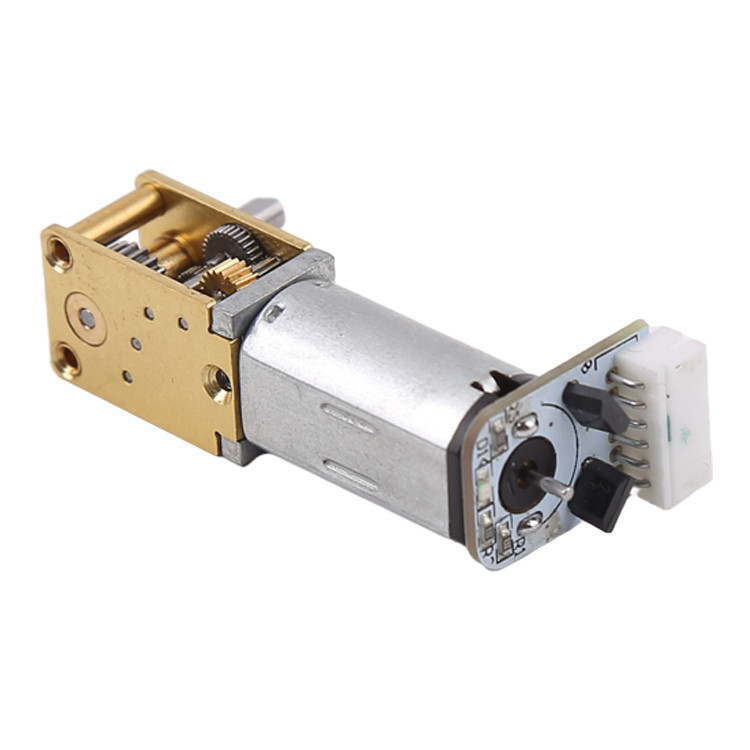

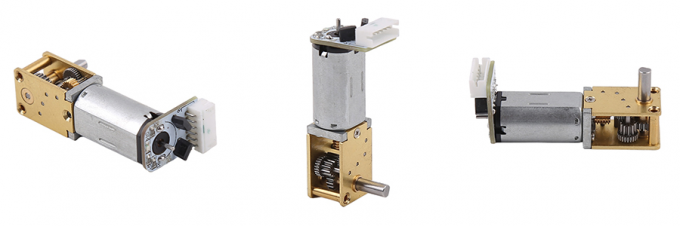

This is a DC worm gear motor with N20 encoder.
It is also available without encoder.
The outer diameter of the N20 motor is 12mm*10mm, the motor length is 15mm, and the length of the gearbox is 18mm (the gearbox can also hold an N10 motor or an N30 motor).
The motor consists of a metal brushed DC motor with a precision metal reducer. The worm gear has small size and large gear ratio.
The DC motor technology is relatively mature, inexpensive and simple to drive and control. With a gear box, the torque is greatly increased, the speed is reduced, and it is easy to control!
The following worm gearbox gear ratios are available.
1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1016
Parameters
| Model No | N20-1812 Worm Gear motor |
| Size | 12mm*33mm |
| Gear ratio: | 1:21~1:1016 |
| No-load seed(single motor) | 5000~8000rpm |
| Encoder type | magnet hall sensor |
| Resolution | 3ppr 5ppr 7ppr 12ppr |

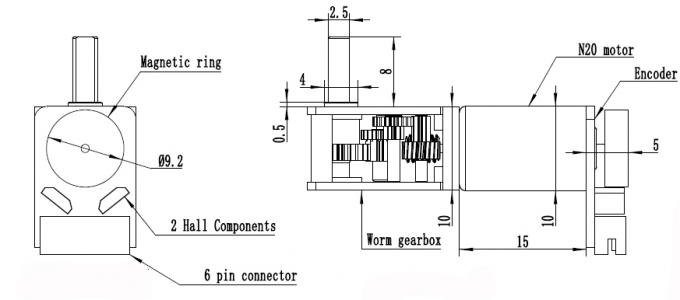

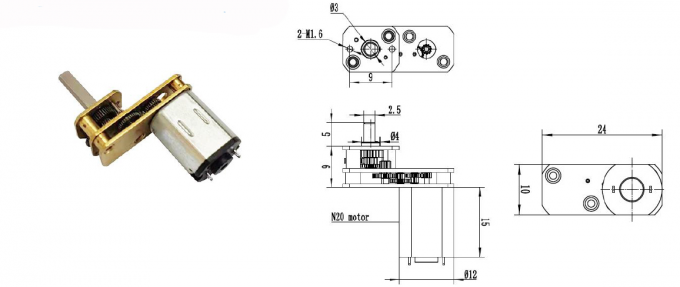

Design Drawing

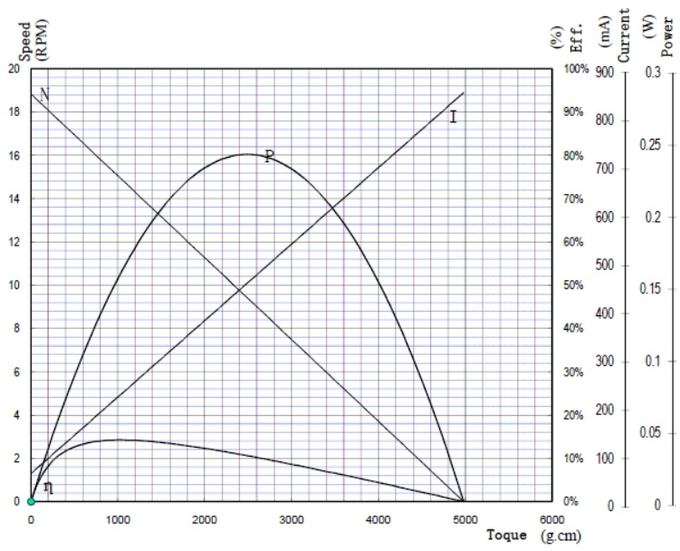

N20 motor torque and speed curve
When changing the drive voltage, or changing the motor winding parameters, the motor will have different characteristics, this curve is for reference.

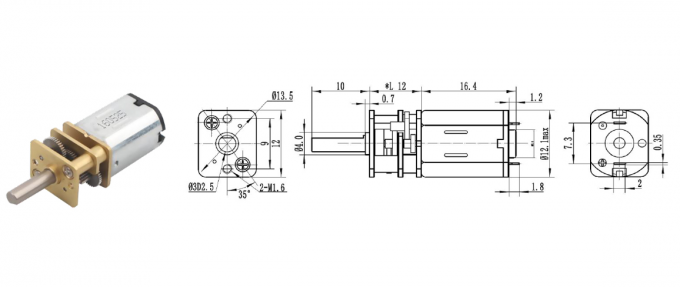

N20 DC motor can also be matched with GB12 gearbox, 1024GB gearbox, As shown in the figure:
1.N20 DC motor + GB12 gearbox
2.N20 DC motor + 1024GB gearbox
About DC motor structure

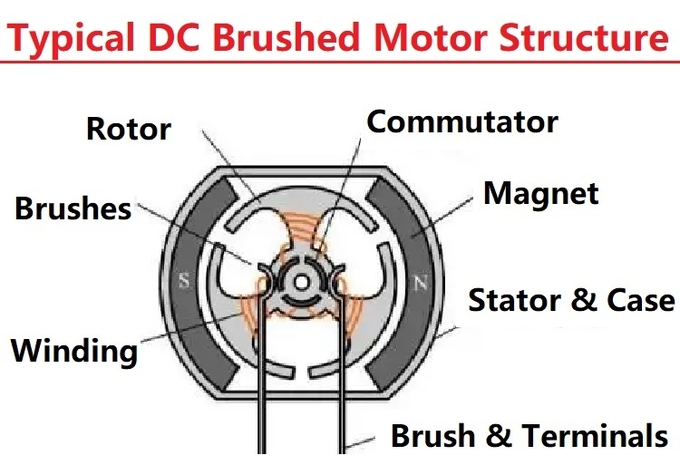

The above diagram shows the basic structure of a DC brushed motor.
This type of DC motor is composed of a stator, rotor, brushes and commutator. The mutual driving of the stator and rotor magnetic fields drive the motor to rotate. When they start and run, the brush part generates sparks and is not suitable for use in special applications.
The relative movement of brushes and commutator is easy to wear, and the life time of DC brushed motor with common structure is generally not very long, usually 200~2000 hours. For customers who have strict life time requirement for motor, it is recommended to choose stepper motor.
Advantages of DC brushed motor
1. Fast speed
2. small size
3. High efficiency (compared with stepper motor)
4. Universal use
5. Easy to connect and easy to use
6. Inexpensive
Application
Electric DC worm gear motors are mainly used in various applications such as windows, household appliances, model cars, model robots, model ships, industrial applications, DIY engines, miniature winches, remote control curtains, miniature door openers, barbecue grills, ovens, garbage disposals, coffee machines, printing presses, etc.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
