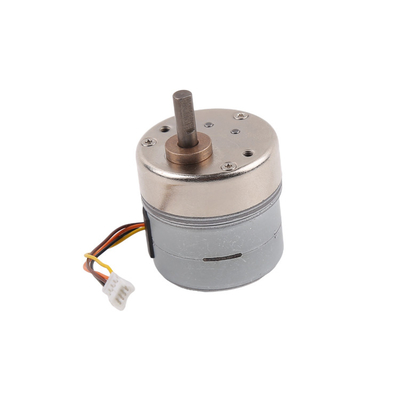

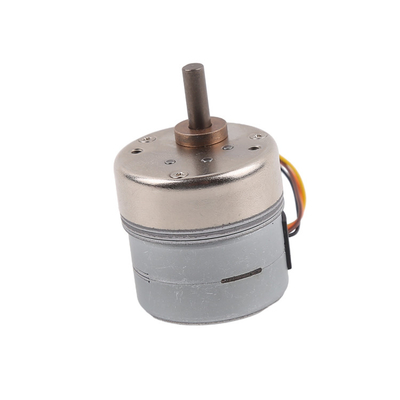

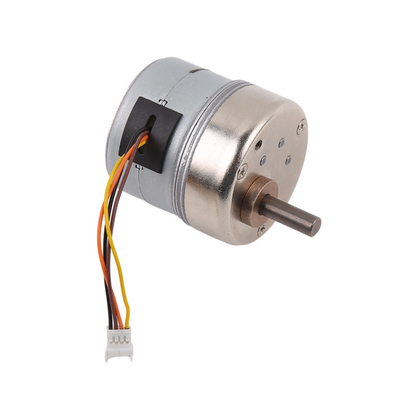

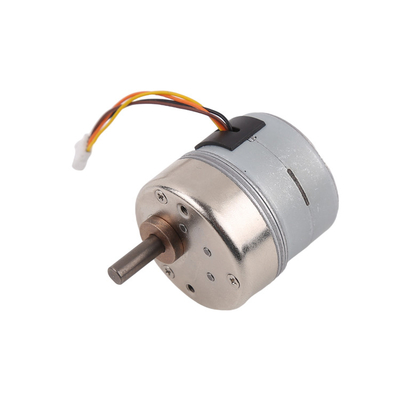

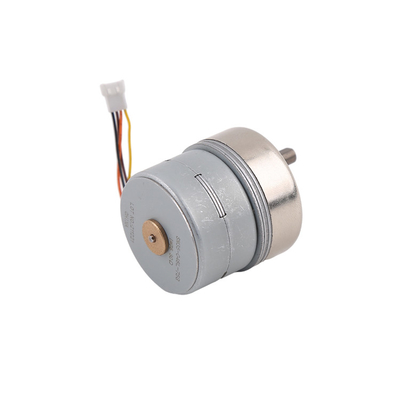

12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | PM35L-048-376- 120G |
| Minimum Order Quantity | 1Unit |
| Price | $5~10/unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Permanent Magnet Geared Stepper Moto | Driving Voltage | 12 V DC |
|---|---|---|---|
| Step Angle | 7.5 Degree | No. Of Phases | 2 Phases |
| Coil Resistance | 30Ω±7% | Diameter | 35mm |
| High Light | 12VDC Geared Stepper Motor,7.5 Deg Geared Stepper Motor,35mm 2 Phase Stepping Motor |
||
Product Description
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2-Phase Stepping Motor Applied To Medical Analyzer Equipment
Description
This motor is a 35mm diameter high torque decelerating stepping motor with a body height of 35.8mm. The output shaft of the motor can be customized to install gears and synchronous pulleys. After the stepping motor is equipped with a gearbox, the step angle is further subdivided to increase the load torque and control more accurately
Conventional gear reduction ratios include 3.7, 3.82, 5.2, 5.36, 13.7, 14.62, 19.2, 20.51, 26.85, 28.77, 51, 71100139. Suitable gear reduction ratios can be recommended according to customer needs,
The output part of the motor is usually a connecting line, or a customized socket
The mission of the motor is more than 10,000 hours, and the life of the gear is more than 2000 hours.
Parameters
| Product Name | Geared stepper motor |
| Model | PM35L-048-376- 120G |
| Resistance | 30Ω±7% |
| Current Per Phase | 400 mA/phase |
| Type | Permanent Magnet |
| Phase | 2 |
| Certification | ROHS |
| Holding Torque | 9000g.cm / 200PPS |
| Diameter | 35mm |
| Rated voltage | 12 V |
| Pull in Rate | 400pps |
| Geaar ratio | 3.7-139 |
| weight | 180g |
| OEM & ODM SERVICE | AVAILABLE |

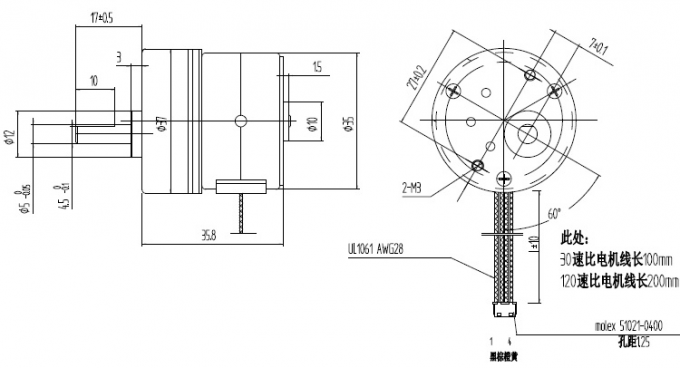

Design Drawing
About geared stepper motors
The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
Gearbox Parameters
| Number of gear trains | 1 | 2 | 3 | All gears are metal, and the gear reduction ratio marked with * can be customized as plastic gears, which have the advantages of low noise and cheaper price. |
| Gear ratioi | 3.7 | 13.7 | 51 | |
| 3.82 | 14.62 | 71 * | ||
| 5.2 * | 19.2 * | 100 * | ||
| 5.36 | 20.51 | 139 * | ||
| 26.85 * | ||||
| 28.77 | ||||
| Length of gearbox(mm) | 30.9 | 37.5 | 44.1 |
Typical Applications
* Saliva Analyzer
* Blood Analyzer
* Welding Machine
* Intelligent Security Products
* Fiber Fusion Splicer
* Digital Electronics
Lead time and packaging information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
FAQ
1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.
2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.
3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.
4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
