Micro Gear Stepper Motor 25PM Linear Motor For Precise Position Control 2-2phase
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM25-412L |
| Minimum Order Quantity | 1Unit |
| Price | $5~7/unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Bipolar | Drive Method | 2-2phase |
|---|---|---|---|
| Coil Type | Bipolar | Step Angle | 7.5 Degree/10 |
| No. Of Phases | 2 Phases | Resistance | 5Ω±7%/phase |
| Torque | 60g.cm | Minimum Order Quantity | 1unit |
| High Light | Micro Gear Stepper Motor 25PM,Linear Micro Gear Stepper Motor,25PM Linear Motor |
||
Product Description

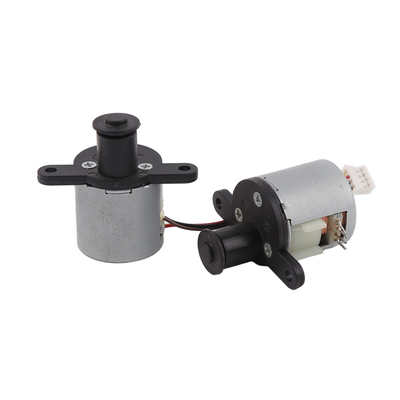

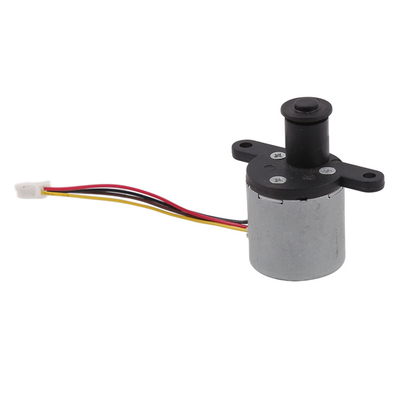

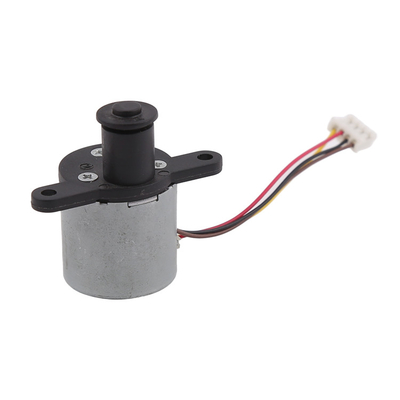

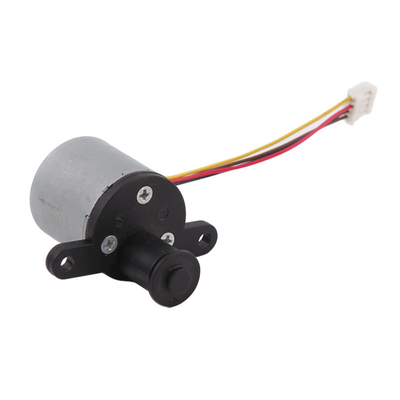

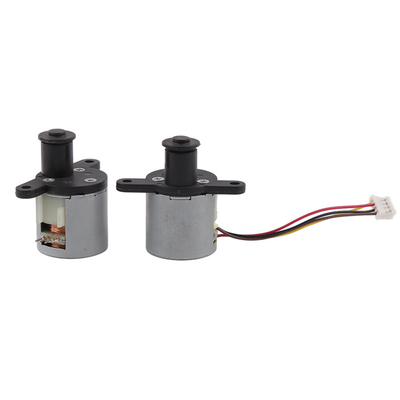

Micro Gear Stepper Motor 25PM Linear Motor For Precise Position Control 2-2phase Drive Method
Description
The 25BYJ412 stepper motor is mainly used in printers, valves, fluid control, position control and other fields. This motor has the features of small size, high precision and high strength.
This stepper motor has a built-in gearbox with a reduction ratio of 1:10. Finally, an output top rod with a stop structure is used so that the plunger can move back and forth without rotating. The thrust force can be up to 10 kg.
JST PHR-4 P2.0 is chosen for the exterior of this motor, and the wiring part can be selected from various types and lengths of connecting wires or FPC FFC according to customer requirements. the shape of the mounting plate and the exit angle can be adjusted according to customer needs!
Parameters
| Model No. | 25BYJ 412L |
| Motor diameter | 25mm gearbox linear stepper motor |
| Gearbox ratio | 10:1 |
| Drive voltage | 2.2~3.4V DC |
| Coil resistance | 5Ω±10%/phase |
| Number of phase | 2 phases |
| Stroke | 5mm |
| Step angle | 7.5°/10 |
| Thrust | 70N Min(2.6V 350PPS) |
| Pull-in frequency | 750PPS (2.6V DC) |
| Pull-out frequency | 800PPS (2.6V DC) |
| Step length | 0.002mm/step |
| Spindle | Tr3.5*P1.0 |
| OEM&ODM SERVICE | AVAILABLE |
| Inductance | 3mH(Ref) |

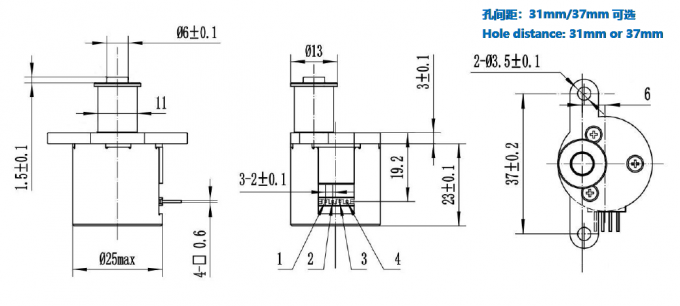

Design Drawing
About geared stepper motors
1. Life erpectancy L10 Life at 30° C:20hours Test condition TBD
2. EMC. EN standard EN 61000 (ETSI EN 300 220-1ETSI EN 300 220-2)
3. Noise Level: (200-600 Hz )maxinun TBD (A).
4. Build in direction:Vertical and horizontal
5. Anbient temperature:+50°C
6. Storage temperature:-20 to + 50 C.
7.Approval: ROHS
8. Humidity: 20-80% RH
9. Grease type: jaeger T-21
10. Grease supplier: JABGER

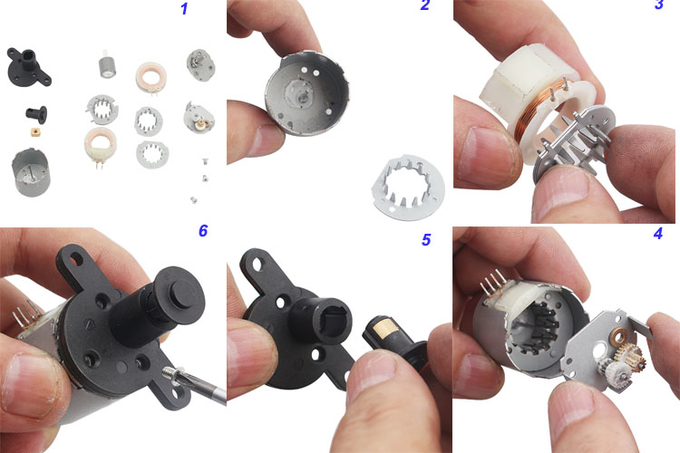

The following picture shows the product assembly
Application
Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
FAQ
1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.
2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.
3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.
4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
