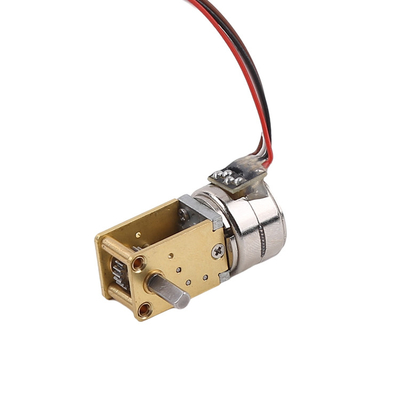

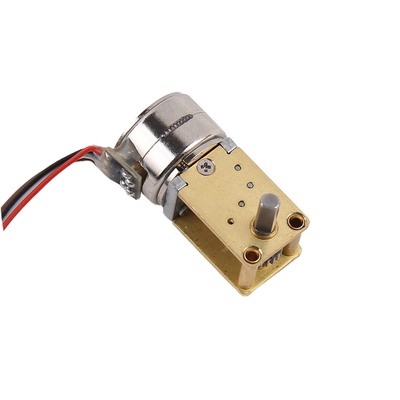

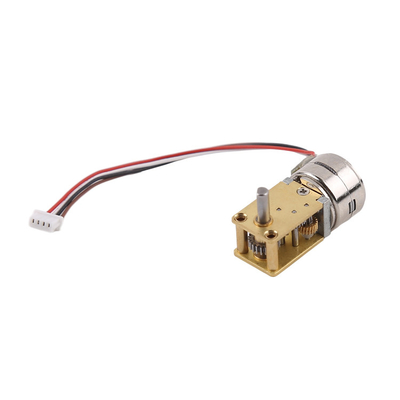

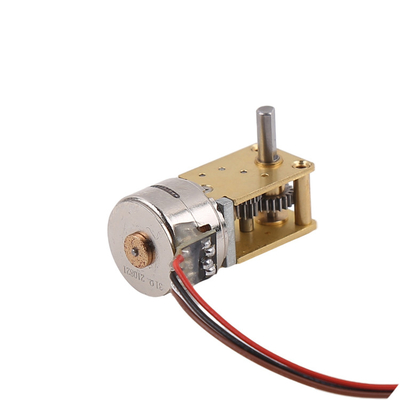

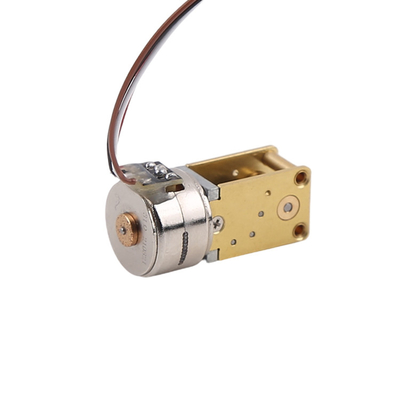

15mm Worm Gear Stepper Motor With Worm Gearbox Gear Ratio Selectable
Place of Origin | China |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | SM15-818G |
Minimum Order Quantity | 1Unit |
Price | $3.2-$8/unit |
Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
Delivery Time | 10~30 days after receiving sample payment |
Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMotor Type | 15mm Worm Gear Stepper Motor | Gear Type | Spur Gear |
---|---|---|---|
Gearbox Structure | The First Stage Is Worm Gear, The Back Spur Gear | Step Angle | 18 Degree |
No. Of Phases | 2 Phases | Lead Screw Type | D-axis |
Coil Resistance | 31Ω±10% | OEM&ODM SERVICE | AVAILABLE |
Minimum Order Quantity | 1unit | ||
Highlight | 15mm Worm Gear Stepper Motor,Worm Gearbox 15mm Stepper Motor,ODM Gear Stepper Motor |
Description
This is a 15 mm stepper motor with a worm gearbox. There are 1 and 2 heads of worm gear, which can be understood as 1 and 2 teeth. The number of heads is selected according to the gear ratio, and the efficiency of worm gear is relatively low at 22%-27%.
Customers can choose according to their choice of gearbox gear ratio.
21:1,42:1,118:1,236:1,302:1,399:1,515:1,603:1,798:1,1030:1.
In addition to these gear ratios, customers can also customize the speed ratio as needed, which is generally possible.
The larger the transmission ratio, the slower the output shaft rotation and the higher the torque.
Output shaft torque=motor torque*reduction ratio*gearbox efficiency
15mm motor torque is usually at 15g.cm
With a gearbox with 118:1 gear ratio
Gearbox efficiency is about 24%
The output torque is approx:15g*cm * 118 * 0.24 = 424 g*cm
Parameters
Model No. | SM15-818G |
Motor diameter | 15mm |
Motor type | Permanent magnet motor |
Drive voltage | 5V DC |
Coil resistance | 31Ω±10%/phase |
Number of phase | 2 phases |
Step angle | 18° |
Gear ratio | 21:1~1030:1 |
OEM&ODM SERVICE | AVAILABLE |
EFFICIENCY | 22%-27% |
Design Drawing
About geared stepper motors
The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
About worm gearboxes
N20 DC motor + worm gear box
1. worm gearboxes are inefficient (less than 30%) and will have lower output torque than other types of gearboxes.
2. Worm gearboxes have a self-locking function, which will automatically lock when the motor is powered off.
3. It can also be used with 15mm dual stepper motors, N20 motors, 10mm stepper motors and 20mm stepper motors, which customers can choose according to their needs.
As shown in the figure below:
15mm double stepper motor + worm gearbox
10mm stepper motor + worm gear box
20mm stepper motor + worm gear box
Worm Gearbox Parameters
Gear ratio | 21:1 | 42:1 | 118:1 | 236:1 | 302:1 | 399:1 | 515:1 | 603:1 | 798:1 | 1030:1 |
Precise ratio | 21.00 | 42.00 | 118.067 | 236.133 | 301.726 | 398.976 | 515.200 | 603.452 | 797.853 | 1030.400 |
Worm gear starts No. | 2 | 1 | 2 | 1 | 2 | 2 | 2 | 1 | 1 | 1 |
Gear levels | 3 | 3 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
Efficiency | 27% | 27% | 24% | 24% | 22% | 22% | 22% | 22% | 22% | 22% |
Application
Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
FAQ
1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.
2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.
3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.
4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
