Micro Slider Screw Stepper Motor 10mm 5VDC Mini Linear Stepper Motor For Precise Instrument
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM10198 |
| Minimum Order Quantity | 1Unit |
| Price | $3~$8/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VSM10198 | Phase | 2, 2 |
|---|---|---|---|
| Type | Permanent Magnet | Current / Phase | 0.3A |
| Certification | RoHS | Rated Voltage | 3.3V |
| Coil Resistance | 10Ω±10% | Step Angel | 18 |
| Screw Pitch | M2P0.4mm | ||
| High Light | Screw Stepper Motor 10mm,5VDC Mini Linear Stepper Motor,10mm Mini Linear Stepper Motor |
||
Product Description

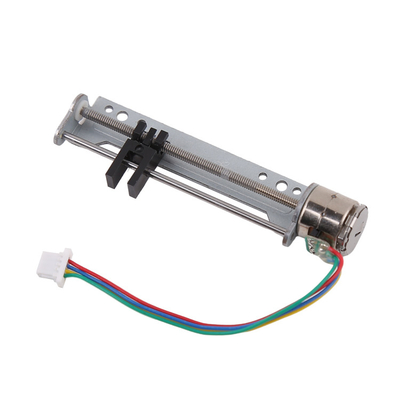

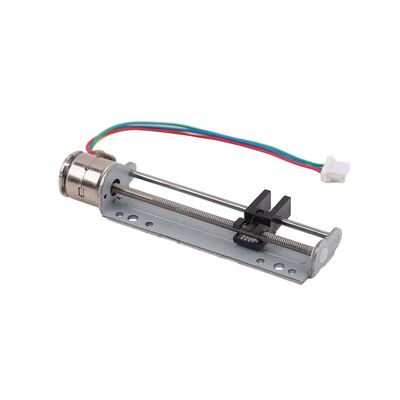

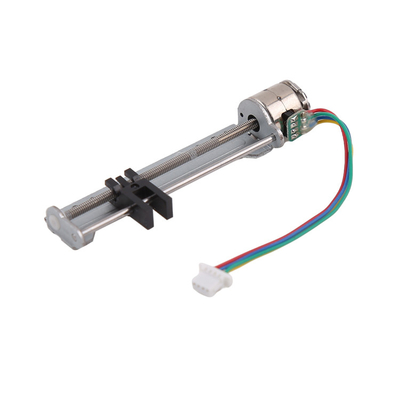

Micro Slider Screw Stepper Motor 10mm 5VDC Mini Linear Stepper Motor For Precise Instrument Focusing Adjustment
Description
VSM10198 micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks and other fields due to its small size, high accuracy, easy control and other excellent characteristics.
The effective travel of the lead screw of the motor is 40mm, the lead screw is M2P0.4, the basic step angle of the motor is 18 degrees, and the motor runs 20 steps every week. Therefore, the displacement resolution can reach 0.02mm to achieve precision control. The screw with the screw pitch of 0.4 mm of the output shaft is supported by the slider and the screw to rotate into thrust.
The motor input part of FPC can be changed to the form of connecting wire pin, PCB, etc. according to customer requirements.
The mounting bracket can be customized according to the customer's requirements, and the black slider shape on the motor can also be designed and developed according to the customer's installation
Parameters
| PRODUCT NAME | 10MM MICROLINEAR STEPPER MOTOR |
| MODEL | VSM10198 |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 3.5gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 4.5gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 300 V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 50 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -20 ~+70 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
| PRODUCT NAME | 10MM MICROLINEAR STEPPER MOTOR |
Custom Type Reference Example
Design Drawing
Customization service
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
FAQ
1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.
2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.
3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.
4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
