8mm 3.3VDC Mini Slider Linear Stepper Motor Of Camera Lens Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM0806 |
| Minimum Order Quantity | 1Unit |
| Price | $3~$7/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VSM0806 | Phase | 2 |
|---|---|---|---|
| Type | Permanent Magnet | Current / Phase | 0.3A |
| Rated Voltage | 3.3V | Coil Resistance | 20Ω±10% |
| Step Angel | 18 | Size | DIA8*L33mm |
| High Light | Mini Slider Linear Stepper Motor,3.3VDC Linear Stepper Motor,Camera Lens 8mm Stepper Motor |
||
Product Description

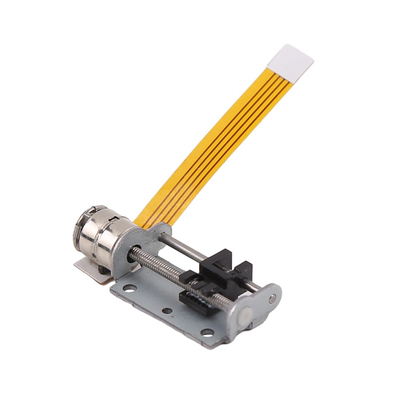

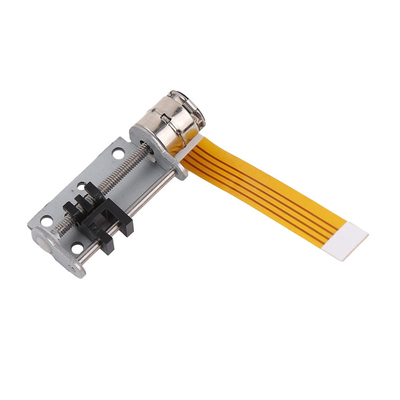

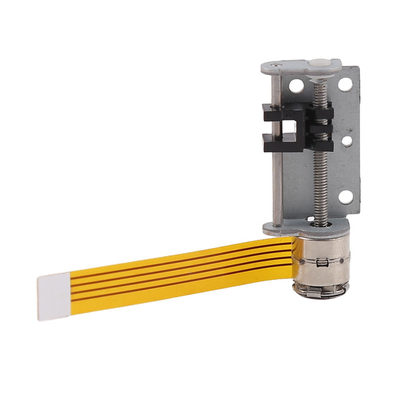

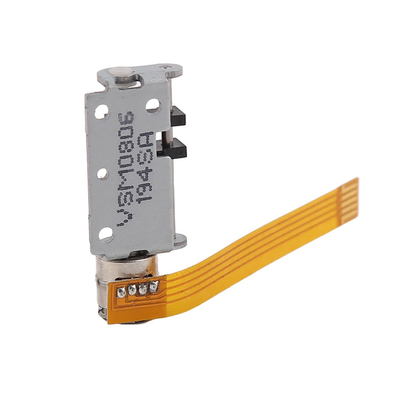

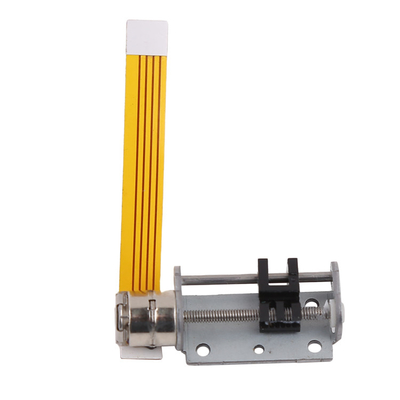

8mm 3.3VDC Mini Slider Linear Stepper Motor Of Camera Lens Motor
Description
VSM0806 is a linear micro stepping motor. The screw rod is M2P0.4mm, and the screw pitch of the output shaft is 0.4mm. The screw is rotated into thrust through the screw rod and the screw rod.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps every week, so the displacement resolution can reach 0.02mm, achieving the goal of precision control.
The actuator is driven by subdivision.
Because of its small size, high precision, easy control and other excellent characteristics, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of FPC can be changed to the form of connecting wire pin, PCB, etc. according to customer requirements.
The mounting bracket can be replaced according to customer requirements.
Parameters
| PRODUCT NAME | 8MM MICROLINEAR STEPPER MOTOR |
| MODEL | VSM0806 |
| MAX. STARTING FREQUENCY | 800 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 2000 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 1.5 gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 2.0 gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 300 V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 50 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10 ~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
| PRODUCT NAME | 8MM MICROLINEAR STEPPER MOTOR |
Custom Type Reference Example

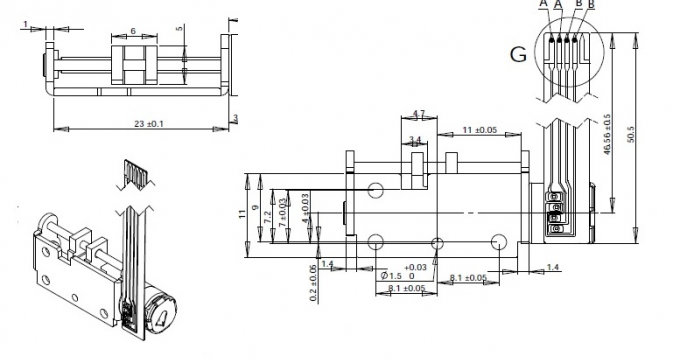

Design Drawing
ApplicationMotor test torque curve
STEPPER MOTOR VSM0806 Torque(pull force)Curve
Test Conditions:
Drive mode: 2-2 phase
Drive circuit: bipolar drive
Drive voltage: 3.3 5 VDC (drive display voltage)
Measuring instrument: Comprehensive test power supply, weight
Resistance: 20 Ω
Application scenarios
Customization service
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
