18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor 15 Mm for Medical Devices

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM15-80L
Minimum Order Quantity 1Unit
Price $8-$15/unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number SM15-80L Phase 2, 2
Type Permanent Magnet Current / Phase 400mA
Rated Voltage 6V~12V DC Coil Resistance 15Ω±10%
Size 15mm Diameter Certification ISO, RoHS
Lead Screw M3*P0.5
High Light

M3 Lead Screw Stepper Motor


18 Degrees Linear Stepper Motor


Linear Stepper Motor 15Mm

Leave a Message
Product Description

18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor 15 Mm Applicable To Medical Devices, Etc

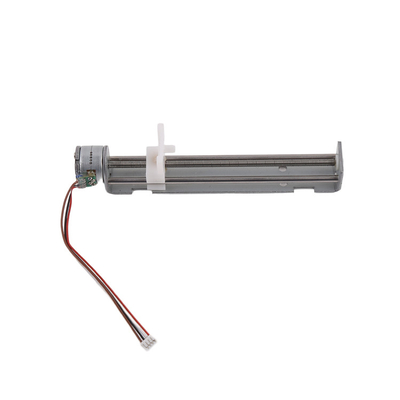

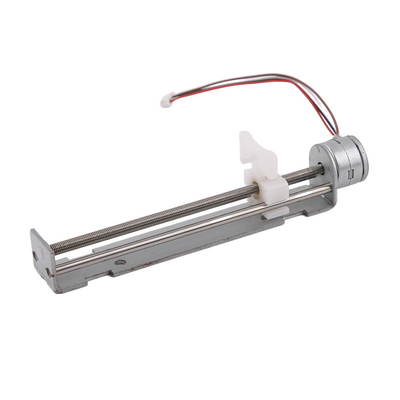

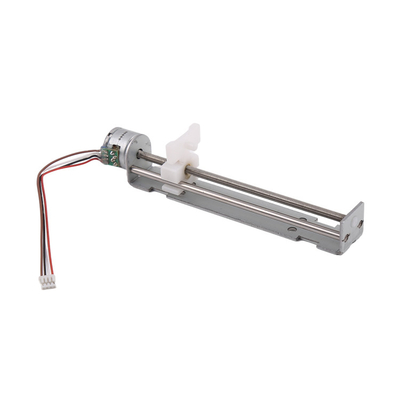

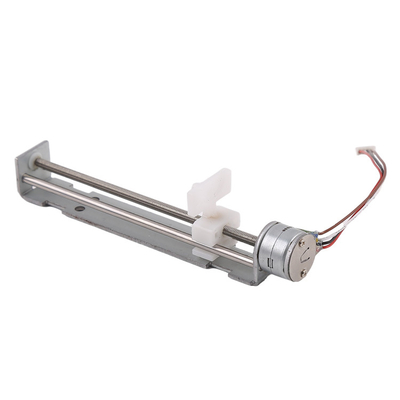

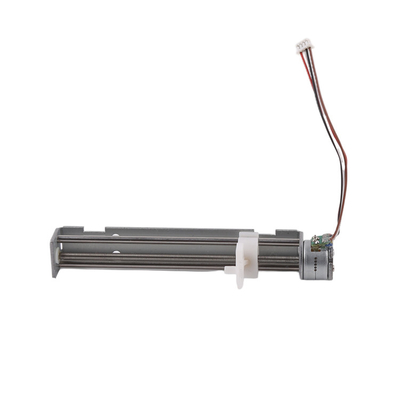

SM15-80L is a stepping motor with a diameter of 15mm. The screw pitch is M3P0.5mm, (Move 0.25mm in one step. If it needs to be smaller, subdivision drive can be used), and the effective stroke of the screw is 80mm. The motor has a white POM slider. As it is a mold production, it can save costs. It can also customize the slider made of brass according to customer needs. However, the slider needs CNC processing, so the cost is relatively high. Considering the cost and the structure allows, it is recommended that the plastic slider be preferred for production

The greatest advantage of the brass slider is that it is supported by two linear bearings, which provide strong support for the slider and ensure that the slider can move smoothly even under high load.

Therefore, the brass slider has better stability and higher price is fully justified.

For the screw rod stroke, considering your installation space, we can also customize the bracket with short stroke to save installation space


Product Name 15 mm diameter stepper motor with lead screw and slider
Model VSM15-80L
Max. Starting Frequency More Than 1100 PPS min.
Max. Response Frequency More Than 1600 PPS min.
Voltage 12 V
Pull Out Torque 500 gf-cm min. (AT 129 PPS , 12V DC)
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistence 50 MΩ (DC 100 V)
Operating Temperature Range -20 ~+50 ℃
Motor Surface Temperature 80 ℃

Custom Type Reference Example


This linear stepping motor is widely used in medical devices, scanners, automotive instruments, security systems, optical fiber welding equipment and other fields.

Design Drawing

D 4

Application scenarios

D 6

Customization service

Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Lead Time and Packaging Information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets


Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
