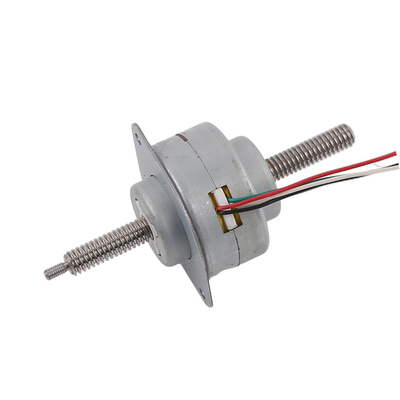

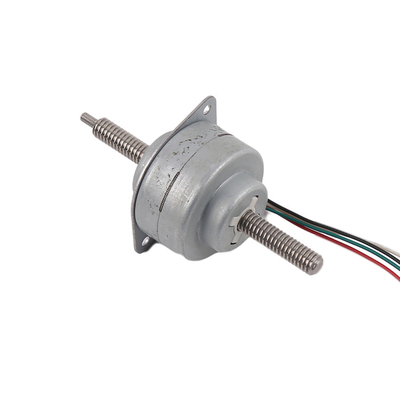

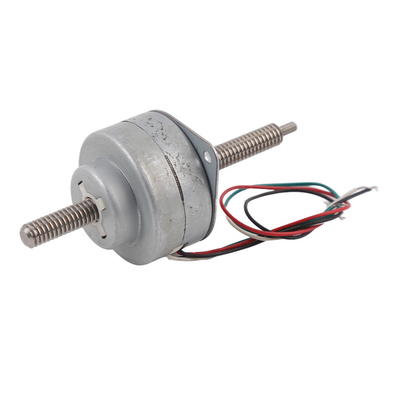

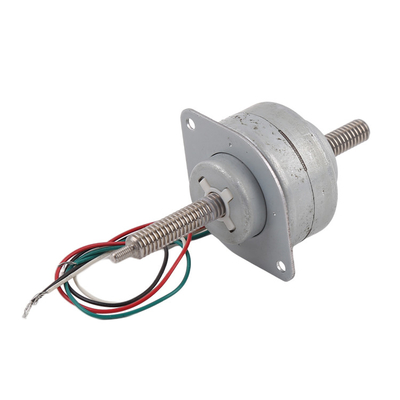

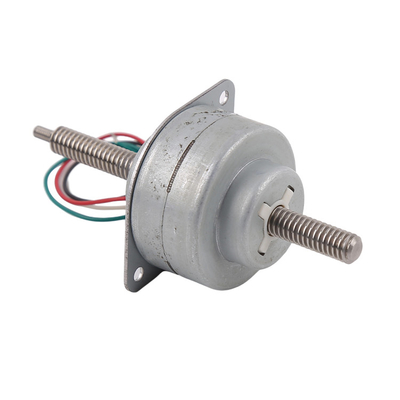

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM36L-048S-0254-113.2 |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 | Type | Permanent Magnet Stepper Motor |
|---|---|---|---|
| Current / Phase | 560mA | Voltage | 5V DC |
| Max Stroke | 113.2 Mm | Screw Pitch (can Be Customized) | 1.22 |
| Step Size (can Be Customized) | 0.0254 | ||
| High Light | 36mm Micro Linear Stepper Motor,5V DC Linear Stepper Motor,12V Through Shaft Screw Motor |
||
Product Description
36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor
Description
VSM36L-048S-0254-113.2 is a through shaft type stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the top of the screw rod needs to be fixed, and the guide screw will move forward or backward.
The stepping angle of the stepping motor is 7.5 degrees, and the lead spacing is 1.22mm. When the stepper motor rotates for one step, the lead moves 0.0254mm, and the length of the screw rod of the motor can be customized according to customer needs
The product converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring can be connected or output from the outlet box according to customer requirements
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Parameters
| PRODUCT NAME | PM36 5v Linear stepper motor |
| MODEL | VSM36L-048S-0254-113.2 |
| POWER | 5.6W |
| VOLTAGE | 5V |
| PHASE CURRENT | 560mA |
| PHASE RESISTANCE | 9(土10%) Ohm / 20C |
| PHASE INDUCTANCE | 11.5(±20%) mH I lkHz |
| STEP ANGLE | 7.5° |
| SCREW LEAD | 1.22 |
| STEP TRAVEL | 0.0254 |
| LINEAR FORCE | 70N/300PPS |
| SCREW LENGTH | 113.2mm |
| OEM & ODM SERVICE | AVAILABLE |

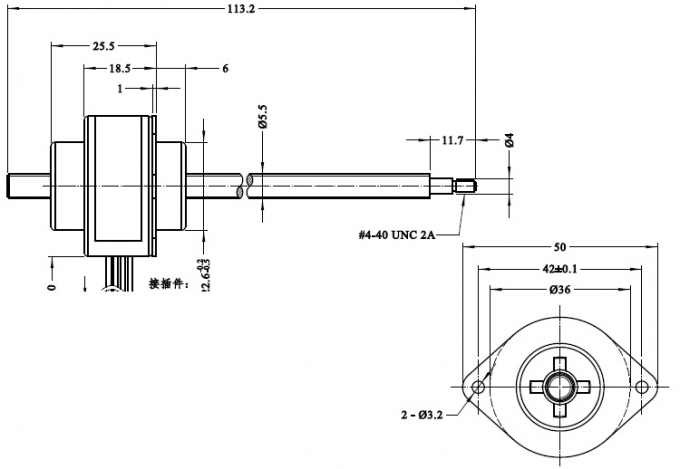

Design Drawing

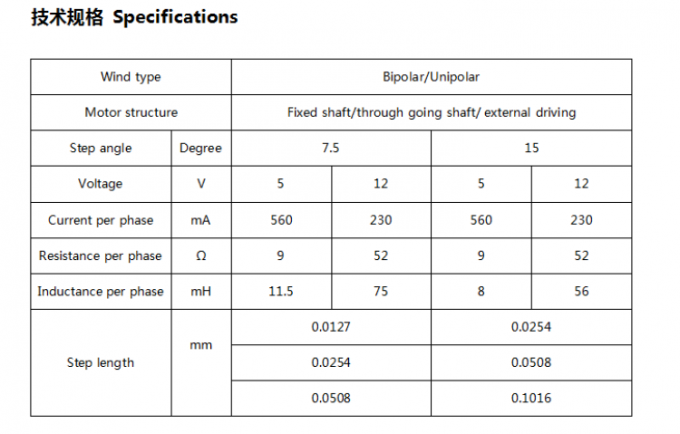

Motor parameters and specifications

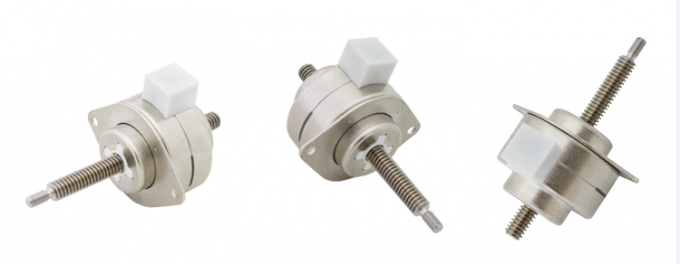

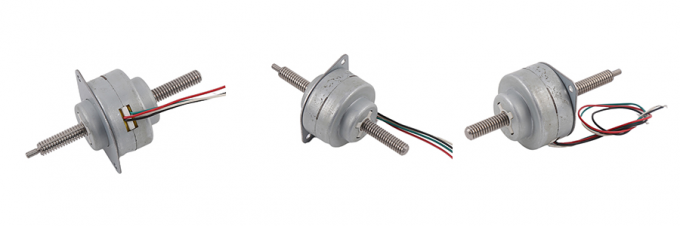

CAPTIVE

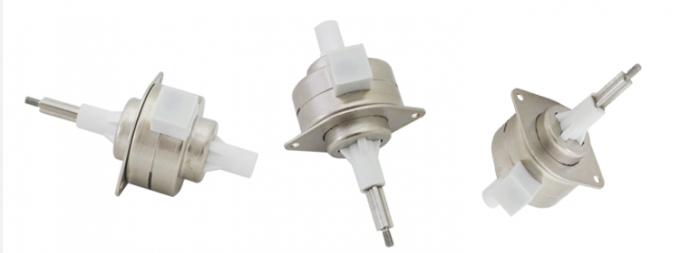

Non Captive

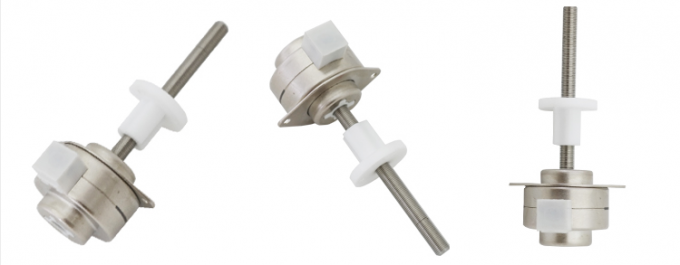

External

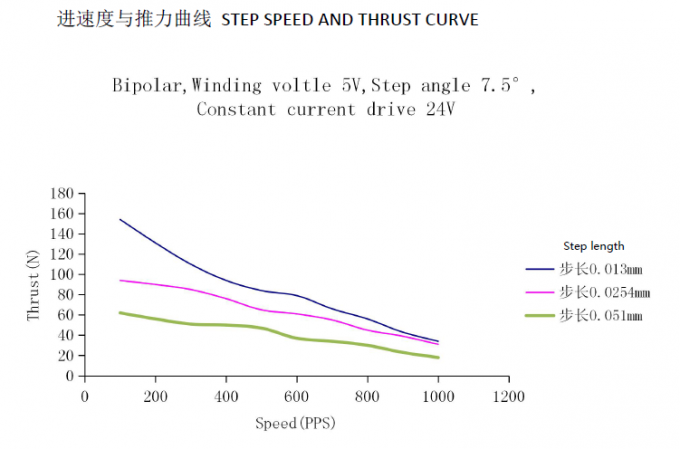

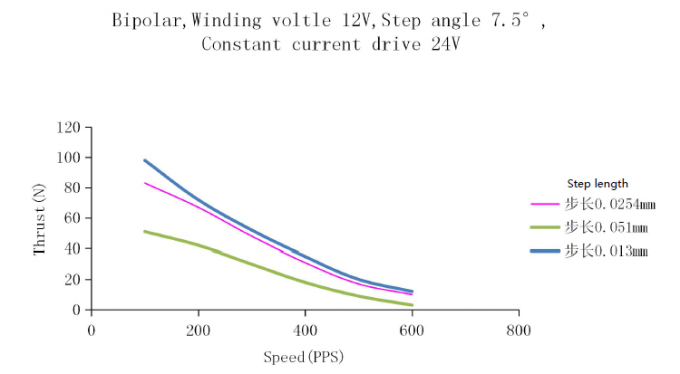

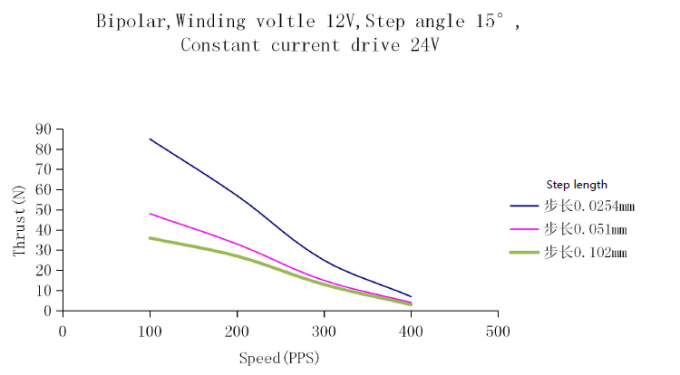

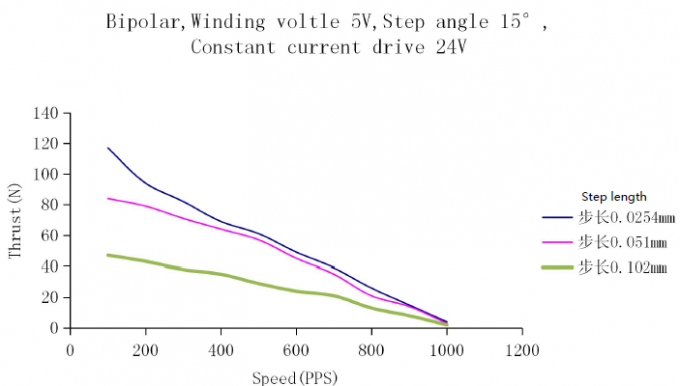

STEP SPEED AND THRUST CURVE
Application
Customization service
The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
The screw rod can also customize the nut
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
FAQ
Frequently Asked Question
1.Stepper motor pulse signal deceleration:
Stepper motor rotation speed, is based on the change of the input pulse signal to change. In theory, give the driver a pulse, the stepper motor rotates a step angle (subdivision for a subdivision step angle). In practice, if the pulse signal changes too quickly, the stepper motor due to the internal damping effect of the reverse electric potential, the magnetic response between the rotor and stator will not follow the change in the electrical signal, will lead to blocking and lost steps.
2.Stepper motor how to use the curve exponential control speed?
Exponential curve, in the software programming, first calculated time constants stored in the computer memory, work pointing to the selection. Usually, the acceleration and deceleration time to complete the stepper motor is 300ms or more. If you use too short acceleration and deceleration time, for the vast majority of stepper motors, it will be difficult to achieve high-speed rotation of stepper motors.
