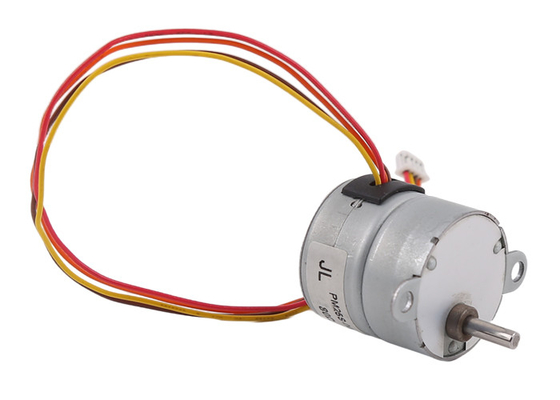

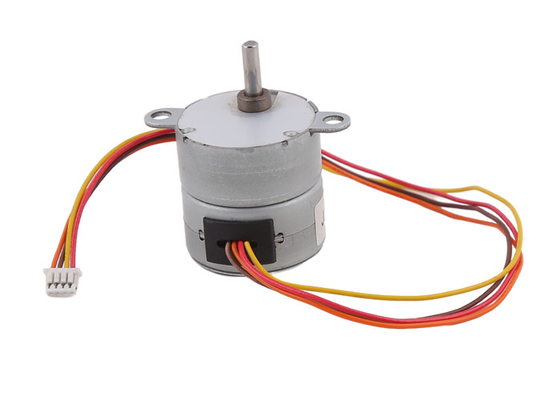

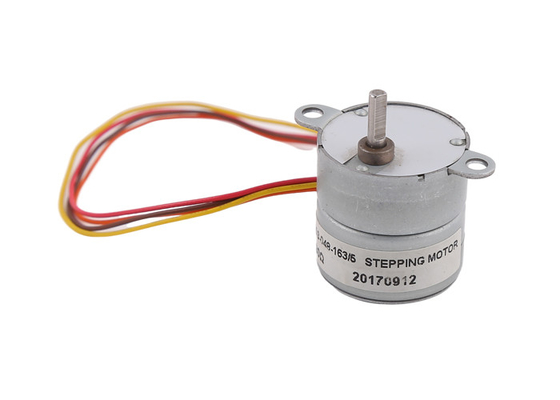

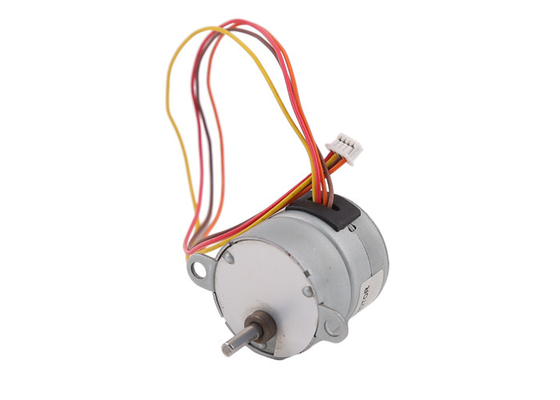

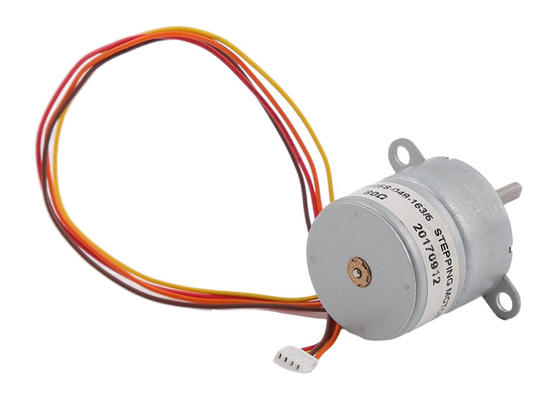

Large Torque 25mm 4 Phase 6 Wire 7.5 Degree Gear Stepper Motor PM Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM25-048S-193 |
| Minimum Order Quantity | 1Unit |
| Price | $5~8/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 10~30 days after the sample is paid |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000 PCS 45days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gear Motor | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Certification | ROHS |
| Voltage(v) | 12 V | Output Shaft | Customizable |
| Reduction Ratio | Customizable1:10~1:100 | Phase | 4 Phase |
| Step Angle | 7.5 Degree | Lead Wires | 6 |
| High Light | 7.5 Degree Gear Stepper Motor,6Wire Gear Stepper Motor,25mm PM Stepper Motor |
||
Product Description
Large Torque 25mm 4-Phase 6-Wire 7.5 Degree Gear Stepper Motor, Wholesale Supply Of PM Stepper Motor In China
Permanent magnet stepper motor gearbox. This product is mainly used in the automation control fields of sanitary ware, thermostatic valves, hot water faucets, water temperature, gas valves, water purifier valves, instruments, and flow.
At the same time, it can achieve other areas that require precise control. Due to the implementation of open-loop control, low-cost position control has been achieved.
The external wiring part can be used according to the customer's requirements for various types and lengths of connecting wires or FPC FFCs.
The output components can be used in various ways, such as gears, pulleys, V-grooves, and turbine screws.
The shape of the installation board and the angle of the socket can be adjusted according to customer needs!
Mechanical Dimension:MM
Technical Features
These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25S-048-193.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher
for mounting we have two type standard.
NOTED:
Transmission Shaft can be made according to customer's requirement.
APPLICATIONS:
Home Applience Air-conditioning
Refrigerator Intelligent Sanitary
Automatic Door Lock CCTV Monitor
Electronic Instrument
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 25mm geared stepper motor |
| MODEL | SM25-048S-193 |
| STARTING FREQUENCY | 500PPS min. (AT 12 V DC) |
| PULL IN TORQUE | 400 gf. cm(AT 100PPS) |
| DIELECTRIC STRENGTH | 1000gf.cm |
| RESISTENCE | 100±10%mΩ |
| HOLDING TORQUE | 1000gf.cm |
| RATATION | CW/CCW |
| OPERATING TEMPERATURE RANGE | -0~+60 ℃ |
| OEM & ODM SERVICE |
AVAILABLE |
Product Detail Presentation
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
