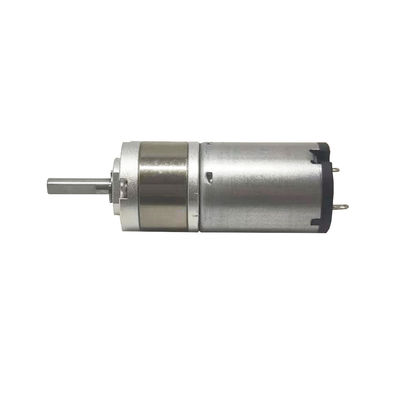

22mm Diameter 12V DC Brushed Motor With High Torque Planetary Gearbox
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 22PT2230 |
| Minimum Order Quantity | 1 Unit |
| Price | $6.5~$28/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gearbox Type | Planetary Gearbox | Gearbox Ratio | 4:1~2418:1 |
|---|---|---|---|
| Motor Type | DC Brushed Motor | Motor Diameter | 22mm |
| Output Shaft | D Shaft | Rated Voltage | 12V DC |
| High Light | 22mm 12V DC Brushed Motor,Gearbox 12V DC Brushed Motor,12V DC Planetary Gearbox Motor |
||
Product Description
22mm diameter 12V DC brushed motor with high torque planetary gearbox
A planetary gearbox has higher cost compared to a regular pinion gearbox.
It has higher efficiency, also longer life time due to its special structure.
This is a DC brushed motor attached with a planetary gearbox.
We have different gear ratios with different gear levels, from 4:1 to 2418:1.
With higher gear ratio, output speed will be slower, with higher torque.
Customers can choose suitable gear ratio based on their requirement on output speed & torque.
Mechanical Dimension: mm
Motor parameters:
| Motor type | DC brushed motor |
| Motor diameter | 22 mm |
| Rated voltage | 12 V DC |
| Unloaded output speed | 19500/gear ratio |
| Loaded output speed | 16700/ gear ratio |
| Gearbox type | Planetary gearbox |
| Output shaft type | 4mm diameter D shaft |
Gearbox parameters:
| Gearbox levels | 1 | 2 | 3 | 5 | 5 |
| Gear ratio | 4:1/4.7:1 | 16:1/19:1/22.5:1 |
64:1/76:1/ 90:1/107:1 |
256:1/304:1/ 361:1/428:1/509:1 |
1024:1/1216:1/1444:1/ 1714:1/2036:1/2418:1 |
| Gearbox length(mm) | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
Product Detail Presentation
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
