Multi Gear Ratio 15mm Double Reduction Stepper Motor With Worm Gear Box
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-818G |
| Minimum Order Quantity | VIC-TECH |
| Price | $4~$8/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 20-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Geared Stepper Motor | Diameter | 15mm |
|---|---|---|---|
| Output Shaft | 10mm D Shaft | Gearbox Size | 18mm*12mm*10mm |
| Reduction Ratio | 1:21~1030:1 | Resistance | 31Ω |
| Step Angle | 18 ° | Motor Lead Length | 70 Mm |
| Highlight | 15mm Double Reduction Stepper Motor,Double Reduction Stepper Motor,15mm Worm Gearbox Stepper Motor |
||
Product Description

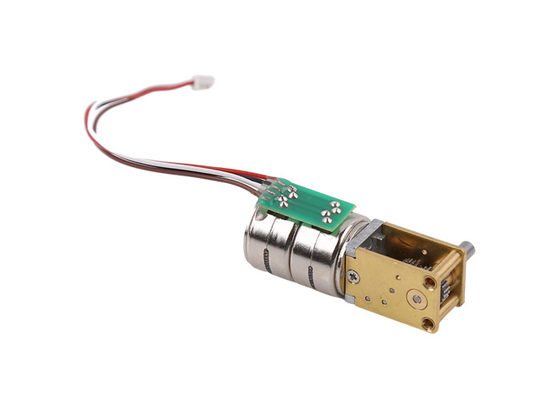

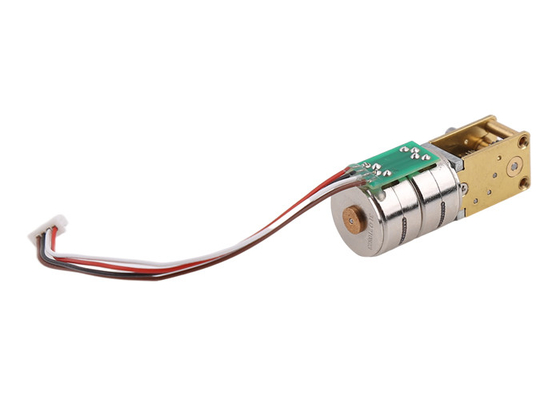

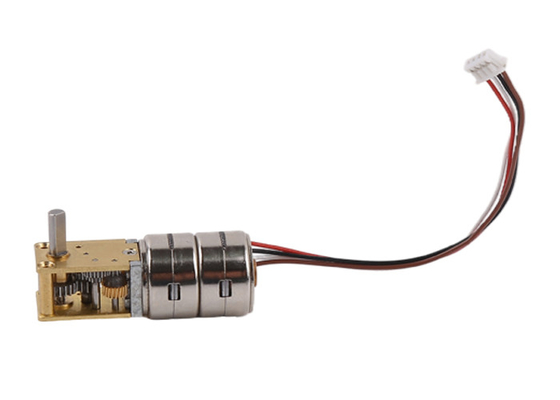

High Torque Multi Gear Ratio 15mm Double Reduction Stepper Motor With Worm Gear Box
Instructions:
This is a double-layer motor with a diameter of 15mm and a worm gearbox.
The motor combines two 15mm stepper motors to provide motor torque.
The efficiency is about 80%, and the torque of the double-layer motor is about 1.8 times that of a single 15mm motor.
There are different transmission ratios for you to choose from, starting from 21:142:1 118:1 236:1 302:1 603:1 875:1 1030:1
Parameters:
| PRODUCT NAME | 15 mm worm geared stepper motor |
| MODEL | SM15(double)-818G-8D |
| RESISTENCE | 31Ω±7% (optional 20 ohm 15 ohm 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 1:21 1:42 1:118 1:236 1:302 1:603 1:875 1:1030 |
| OEM & ODM SERVICE | AVAILABLE |
| Step angle | 18 degrees |
| Coil resistance | 5V DC |
15mm motor Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks

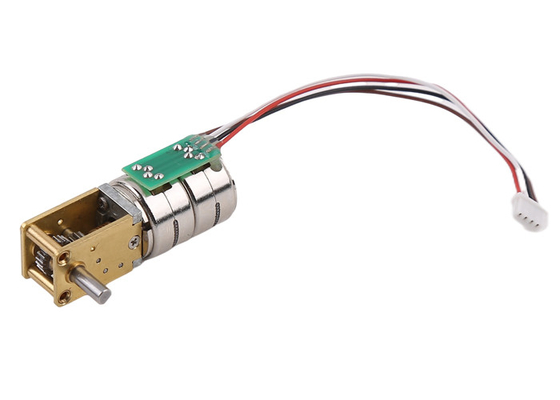

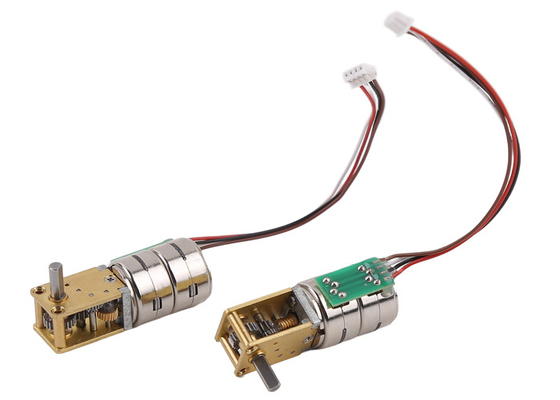

Product Detail Presentation
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
