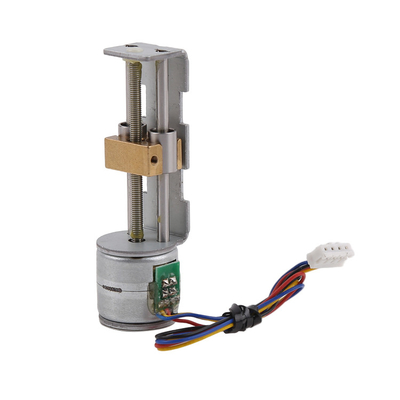

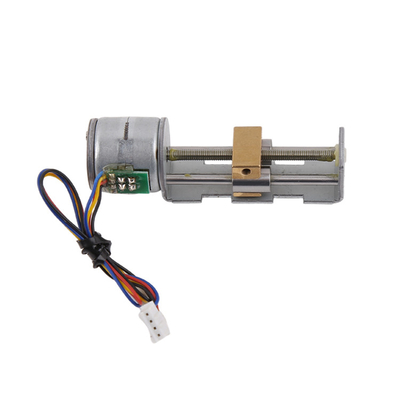

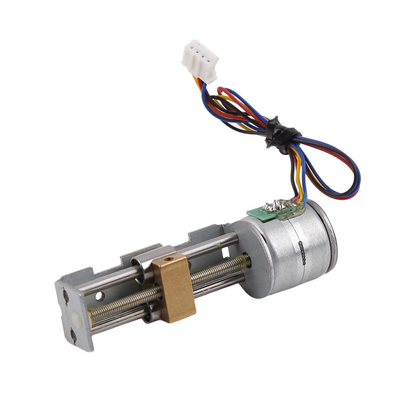

Compact and Efficient Mini Slider Linear Stepper Motor with Coil Resistance 20Ω/Phase
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-34L |
| Minimum Order Quantity | 1Unit |
| Price | $7~$18/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diame | 20mm | Lead Screw | M3*0.5P |
|---|---|---|---|
| Slider Design | Brass Slider+double Linear Bearings | Phase Number | 2 Phases |
| Coil Resistance | 20Ω/phase | Step Length | 0.025mm/step |
| Stroke | About 34mm | Thrust | About 1.3 KG |
| High Light | 20mm Compact Linear Stepper Motor,Mini Brass Slider Stepper Motor,2Phase Linear Stepper Motor |
||
Product Description
Compact and Efficient Mini Slider Linear Stepper Motor with Coil Resistance 20Ω/Phase
Product Description:
Slider Stepper Motor is a type of Linear Actuator Stepper Motor, also known as linear stepper motor, which is used for Linear Actuator. This Slider Stepper Motor has a step length of 0.025mm/step, a total stroke of 34mm, a thrust of 1.3KG, a lead screw of M3*0.5P and a coil resistance of 20Ω/phase. It is an ideal choice for precise linear movement control.
Features:
- Product Name: Slider Stepper Motor
- Slider design: Brass Slider+double Linear Bearings
- Stroke: About 34mm
- Motor diame: 20mm
- Lead screw: M3*0.5P
- Step length: 0.025mm/step
- Mini Slider linear stepper motor
- Captive Linear Actuator Stepper Motor
- Mini Slider linear stepper motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Slider design | Brass Slider+double Linear Bearings |
| Motor diame | 20mm |
| Lead screw | M3*0.5P |
| Phase number | 2 Phases |
| Motor type | Compact Linear Motor, Captive Linear Actuator Stepper Motor, Stepper Motor Linear Actuator |
| Step length | 0.025mm/step |
| Coil resistance | 20Ω/phase |
| Thrust | About 1.3 KG |
| Step angle | 18°/step |
| Stroke | About 34mm |
Applications:
Application and Scene of VIC-TECH Slider Stepper Motor (Model Number: SM20-34L)VIC-TECH SM20-34L Slider Stepper Motor is a small linear motor with a stepper motor and a linear actuator, designed with a brass slider and double linear bearings for excellent accuracy and stability. It has a motor diameter of 20mm and a step length of 0.025mm/step, and it has a thrust of about 1.3 KG. It features RoHS certification, minimum order quantity of 1 unit, price range of $7~$18/unit, standard export packaging, or can be customized, delivery time of 10~30 days after receiving sample payment, MoneyGram, Western Union,Credit Card,T/T, L/C payment terms and supply ability of 100000 units/year. The slider linear stepper motor is ideal for applications such as precision positioning and speed regulation, medical equipment, small lifting equipment, 3D printing machines, robotic arms, and more.
Customization:
Welcome to VIC-TECH's custom service for stepper motor linear actuator, small linear motor, and compact linear motor!
Product Overview: The VIC-TECH SM20-34L stepper motor linear actuator features a high-precision 0.025mm/step step length, M3*0.5P lead screw, a stroke of about 34mm, a 20mm motor diameter, and a brass slider plus double linear bearings slider design. With a minimum order quantity of 1 unit, the price ranges from $7 to $18 per unit with standard export package or custom packaging available. Delivery takes 10-30 days after receiving sample payment, and payment terms include MoneyGram, Western Union, Credit Card, T/T, and L/C. VIC-TECH can supply up to 100,000 units per year.
Certification: VIC-TECH SM20-34L stepper motor linear actuator is RoHS certified.
Order Today: Contact us to customize your stepper motor linear actuator, small linear motor, and compact linear motor solutions today!
Support and Services:
Slider Stepper Motor technical support and service provides our customers with the best solutions.
We offer a wide range of services, including product installation and maintenance, troubleshooting, product upgrades, and more.
Our technical support team is available 24 hours a day, 7 days a week. We provide prompt and efficient technical support to help our customers with their technical needs.
We also offer a range of services to help our customers get the most out of their Slider Stepper Motor products. Our services include product customization and advice, training and consulting, and product testing and certification.
Our goal is to provide our customers with the best possible experience when using our products. We strive to provide quality customer service and technical support.
