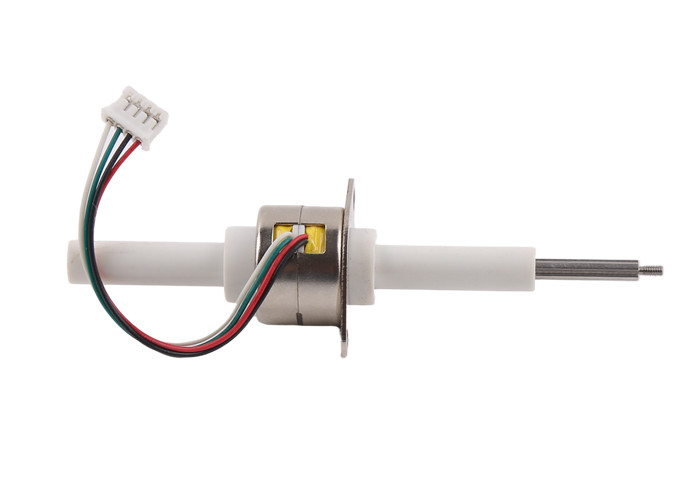

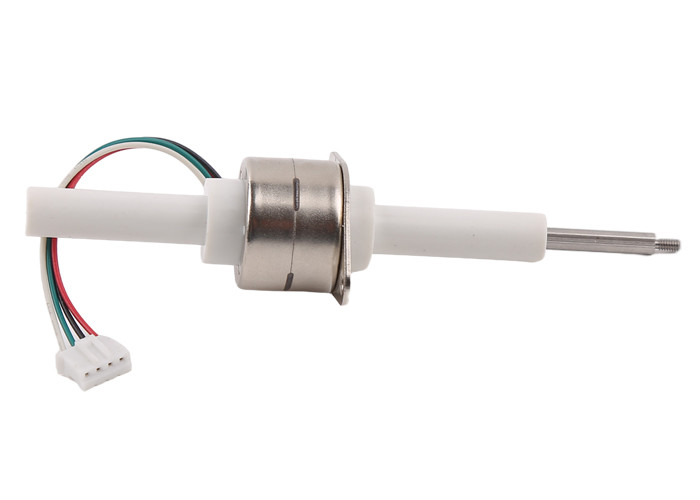

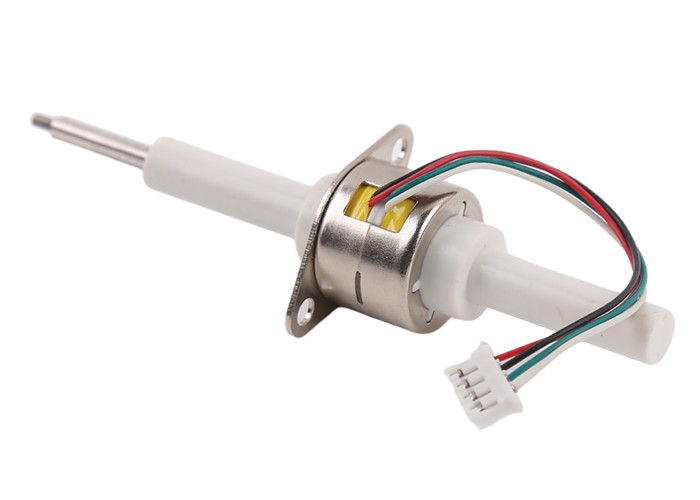

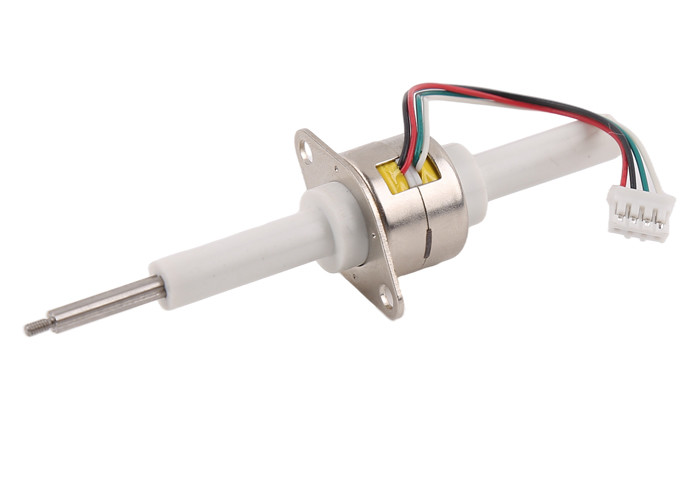

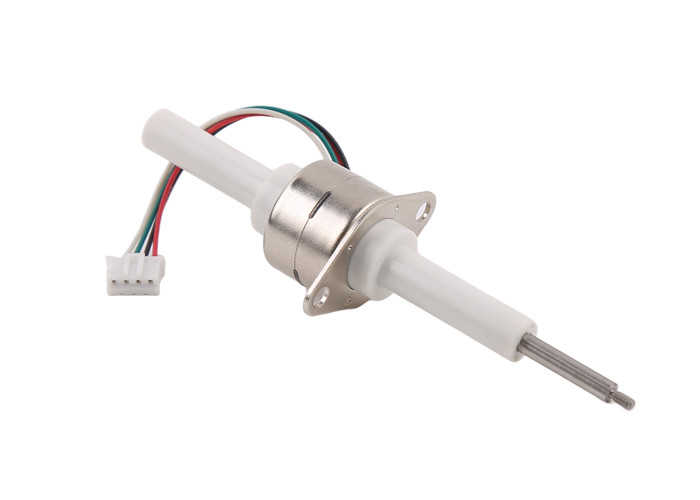

15 degree stepper angle 20mm linear stepper motor stroke selectable
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | VSM20L-24S-102-32-01 |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Diameter | 20mm | Rated Voltage | 5V |
|---|---|---|---|
| Power | 3.4W | Phase Current | 385mA |
| Phase Inductance | 13(±10%）Ohm/20C | Phase Inductance | 4(±20%）Mh/1kmz |
| Step Angle | 15° | Screw Lead | 2.4384mm |
| Step Travel | 0.102mm | Stroke | 31mm |
| Insulation Class | B | Mass | 35g |
| Insulation Resistance | 20mΩ（DC 500V） |
Product Description
High thrust and high precision 32mm stroke 15° step angle 20mm diameter stepper motor
The 20 mm diameter stepper motor has a fixed shaft. In applications with short travel requirements and where a rotary stop device is not available, a fixed shaft is recommended. The product can be used with precision instruments or electronic products, etc., and is widely used in various fields of industry.
Our products can be customized, if you are interested, you can write to me.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Design Layout (Unit:mm)
Parameter sheet:
|
Motor diameter |
20 mm |
|
Rated voltage |
5V DC |
|
Power |
3.4W |
|
Phase Current |
385mA |
|
Phase Inductance |
13(±10%)Ohm/20C |
|
Phase inductance |
4(±20%)Mh/1kmz |
|
Step angle |
15 degrees |
|
Screw Lead |
2.4384mm |
|
Step Travel |
0.102mm |
|
Insulation Resistance |
20mΩ(DC 500V) |
|
Insulation Class |
B |
|
Operating Temp Range |
-20~+55℃ |
|
Storang Temp Range |
-40~+100℃ |
|
Mass |
35g |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
