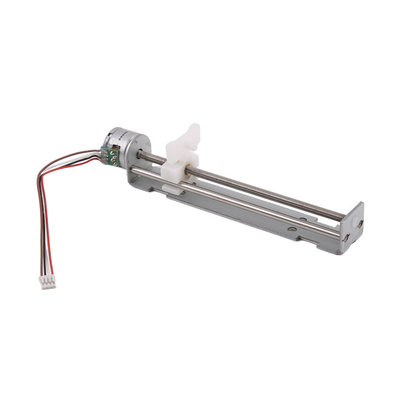

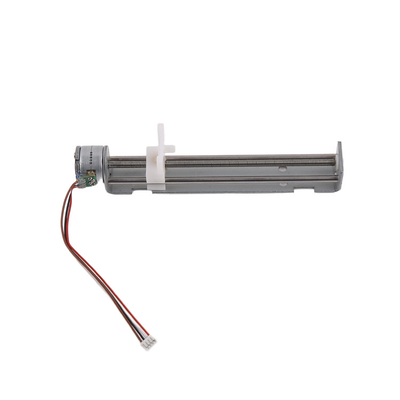

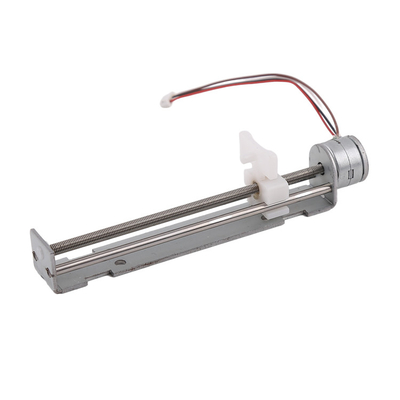

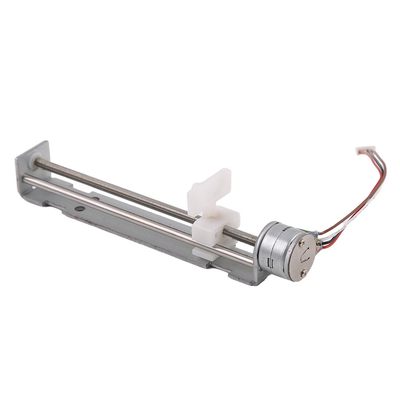

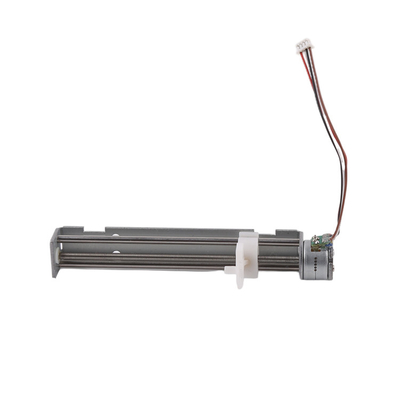

High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide

  • High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide
  • High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide
  • High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide
  • High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide
  • High response frequency Linear Stepper Motor Bi-polar 2-2 Phase With Lead Screw Slide
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM15-TBD
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stroke 80mm Driving Method Bi-polar 2-2 Phase
Driving Voltage 5-12 VDC Max Response Frequency Over 1600 PPS
Pull-out Thrust Over 500 Gf At 700 PPS Lead Screw Type M3*0.5Pitch Thread
Motor Type Stepper Motor With Lead Screw Slide Movement Type Running In A Straight Line (forward And Backward)
Leave a Message
Product Description

Product Description:

The Linear Stepper Motor is an ideal solution for CNC machines and other linear actuator applications. It provides accurate motion control and high pull-out thrust over 500 Gf at 700 PPS, making it suitable for a wide range of applications. It features a driving voltage of 5-12 VDC and a motor size of 15mm, with a coil resistance of 15 Ohm. This high-precision motor is a stepper motor with lead screw slide, and is capable of providing smooth, reliable and precise linear motion control. It can be easily integrated into any CNC machine, and is compatible with most linear stepper motor controllers.



Features:

  • Product Name: Linear Stepper Motor for Robotics
  • Driving voltage: 5-12 VDC
  • Coil resistance: 15 Ohm
  • Pull-out thrust: Over 500 Gf At 700 PPS
  • Lead pitch: M3 Pitch 0.5mm
  • Motor size: 15mm
  • Linear Stepper Motor Controllers: Robotics Linear Stepper Motors


Technical Parameters:

Parameter Value
Lead pitch M3 Pitch 0.5mm
Driving voltage 5-12 VDC
Max response frequency Over 1600 PPS
Lead screw type M3*0.5Pitch Thread
Driving method Bi-polar 2-2 Phase
Pull-out thrust Over 500 Gf At 700 PPS
Motor type Stepper Motor With Lead Screw Slide
Stroke 80mm
Coil resistance 15 Ohm
Step angle 18 °
Best Brands Linear Stepper Motor
In CNC Machines Linear Stepper Motor
In Robotics Linear Stepper Motor


Applications:

VIC-TECH’s Linear Stepper Motor, model VSM15-TBD, is an ideal choice for robotics and automation applications. It is RoHS certified, and has a minimum order quantity of 1 unit, with prices ranging from $6.5 to $30 per unit. Standard export packaging is provided, or it can be customized. Delivery time takes 15-30 working days, and payment terms include Western Union, T/T, L/C, and MoneyGram. The motor has a maximum starting frequency of over 1100 PPS, a stroke of 80mm, a bi-polar 2-2 phase driving method, an M3 pitch of 0.5mm, and a motor size of 15mm. VIC-TECH’s Linear Stepper Motor is reliable and has a production capacity of 1 million units per year, making it an ideal choice for robotics linear stepper motors and linear stepper motor controllers.


Customization:

Linear Stepper Motor

Brand Name: VIC-TECH

Model Number: VSM15-TBD

Place of Origin: China

Certification: RoHS

Minimum Order Quantity: 1Unit

Price: $6.5~$30/Unit

Packaging Details: Standard export package, or can be customized

Delivery Time: 15-30 work days

Payment Terms: Western Union, T/T, L/C, MoneyGram

Supply Ability: 1000000 Units/year

Pull-out thrust: Over 500 Gf At 700 PPS

Step angle: 18 °

Motor type: Stepper Motor With Lead Screw Slide

Stroke: 80mm

Driving voltage: 5-12 VDC

Medical Linear Stepper Motors, Miniature Linear Stepper Motor, Linear Stepper Motor for AGVs



Support and Services:

Technical Support and Service for Linear Stepper Motor

We provide a range of technical support and service options to help you select, install, commission and maintain your linear stepper motor. Our technical support team is here to answer any technical questions you may have. We also offer on-site commissioning and installation services, as well as preventative maintenance plans.

To find out more about our technical support and service options, please contact us at your convenience. We look forward to helping you with your linear stepper motor needs.
