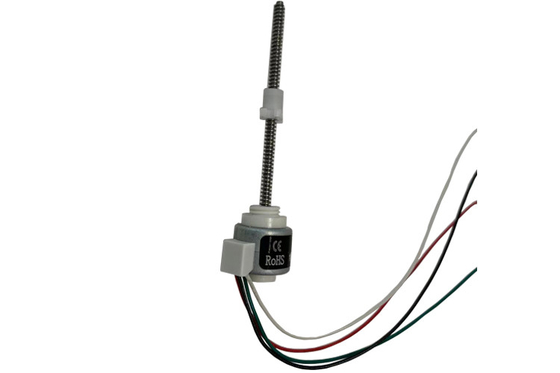

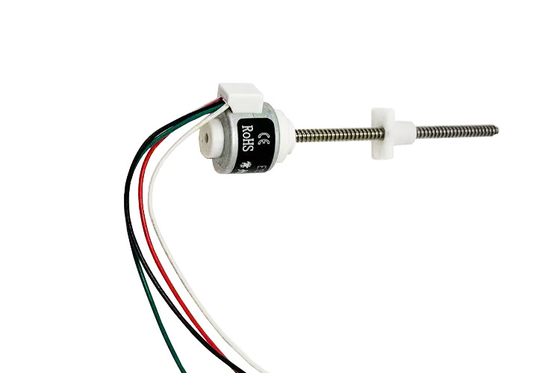

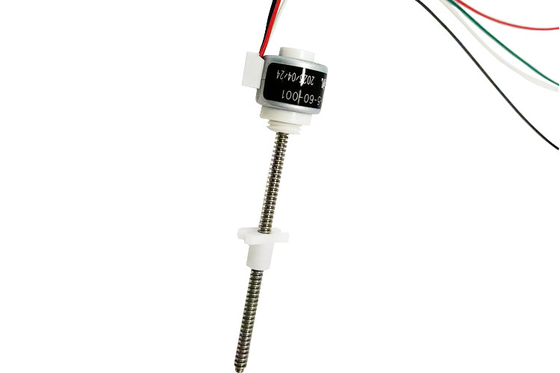

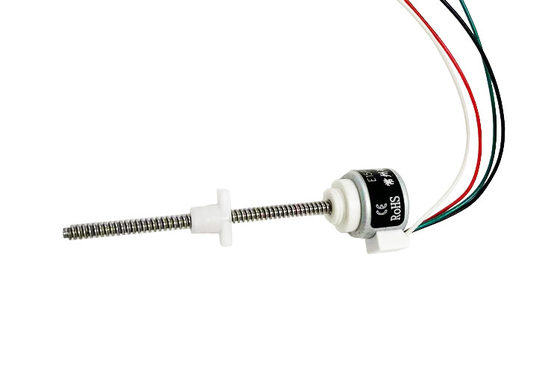

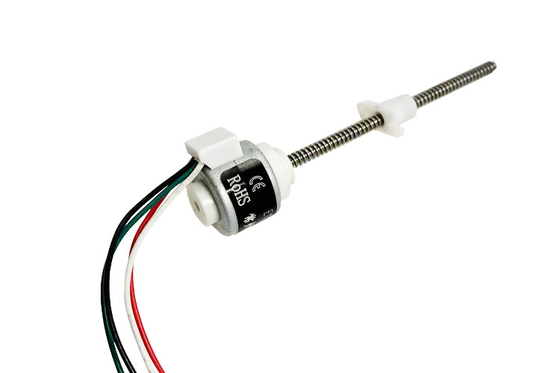

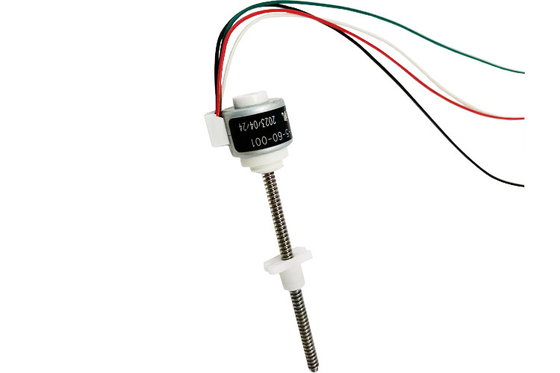

2 Phases 15mm Linear Stepper Motor with 15° Step Angle M3 Screw Type
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM15-TBD |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 5V | Phase Current | 560mA |
|---|---|---|---|
| Step Angle | 15° | Phase Inductance | 9(±10%）Ohm/20C |
| Screw Type | M3, T-shape | Linear Force | 60-80N/200PSS |
| Stroke | 24mm | No. Of Phases | 2 Phases |
Product Description
Product Description:
Linear Stepper Motor - Industrial Strength Stepper Motor Linear Actuator with Precision Stepping
This industrial strength Linear Stepper Motor is a precision linear actuator designed to provide accurate and repeatable positioning. It is suitable for a wide range of industrial, commercial, and consumer applications. With a step angle of 15°, a phase current of 560mA, 2 phases, and a rated voltage of 5V, this motor is both powerful and reliable.
The motor also features a M3, T-shape screw type, providing an added level of precision for a variety of applications. It is ideal for use in automation systems, robotics, medical equipment, and other precision applications that require reliable and accurate linear stepping.
This Linear Stepper Motor is perfect for those who require a precise and reliable linear actuator. It is designed to provide accurate and repeatable positioning, making it ideal for a wide range of industrial, commercial, and consumer applications.
Features:
- Precision Linear Stepper Motor: Step Angle: 15°
- Stepper Motor Linear Actuator: Linear Force: 60-80N/200PSS
- Linear Stepper Motor Thrust Control: Phase Inductance: 9(±10%)Ohm/20C, Phase Current: 560mA, Rated Voltage: 5V
Technical Parameters:
| Parameter | Value |
|---|---|
| Screw type | M3, T-shape |
| Stroke | 24mm |
| Phase Current | 560mA |
| Step Angle | 15° |
| Phase Inductance | 9(±10%)Ohm/20C |
| Linear Force | 60-80N/200PSS |
| Rated Voltage | 5V |
| No. Of Phases | 2 Phases |
| Application | Medical Linear Stepper Motors, Linear Stepper Motor in 3D Printing, Miniature Linear Stepper Motor |
Applications:
VIC-TECH is proud to provide Linear Stepper Motors (Model Number VSM15-TBD) with certification of RoHS which are made of high quality materials. These motors have a rated voltage of 5V and 2 phases. The phase current is 560mA and the phase inductance is 9 (± 10%) Ohm/20C. The motors come in a variety of screw types (M3, T-shape) and can be customized for individual requirements.
These Linear Stepper Motors are perfect for many applications such as in solar panels, medical equipment, and automotive industries. The minimum order quantity is 1 unit and the price ranges from $6.5 to $30 per unit depending on the customization requirements. We can guarantee shipment within 15 to 30 work days and accept payment via Western Union, T/T, L/C, and MoneyGram. With a reliable supply of up to 1000000 units per year, you can trust VIC-TECH to provide you with the best Linear Stepper Motors available.
Customization:
We provide customized services for Automotive Linear Stepper Motors. We are VIC-TECH, offering model VSM15-TBD with RoHS certification. It has a minimum order quantity of 1 Unit and a price range from $6.5 to $30 per Unit. We provide standard exported package or custom package. Delivery time is within 15-30 working days. Payment is acceptable via Western Union, T/T, L/C, and MoneyGram. We can supply up to 1000000 Units/year. The linear force is 60-80N/200PSS and the number of phases is 2. The phase current is 560mA and step angle is 15°. The phase inductance is 9 (±10%) Ohm/20C. Our Automotive Linear Stepper Motors provide high torque and linear actuator.
Packing and Shipping:
Packaging and Shipping of Linear Stepper Motor:
- The Linear Stepper Motor will be securely packed in a cardboard box.
- The box will be sealed with strong packing tape.
- The box will then be placed in a shipping container for transport.
- The shipping container will be labeled with the appropriate shipping information.
- The Linear Stepper Motor will be shipped via a reliable courier service.
