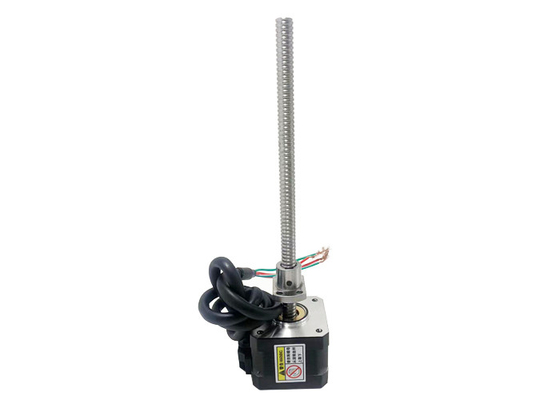

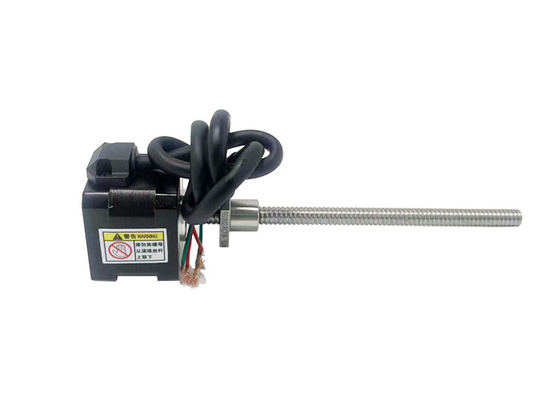

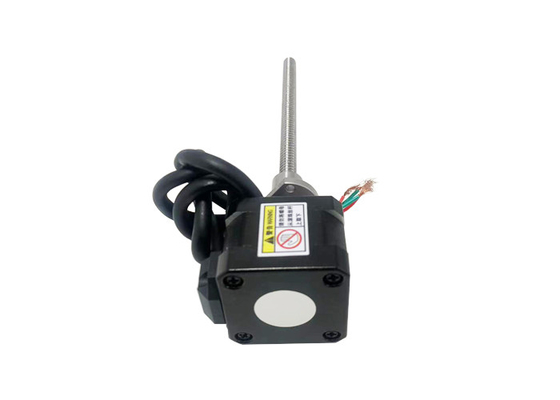

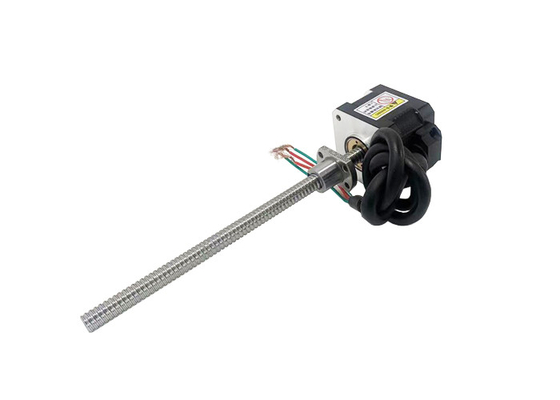

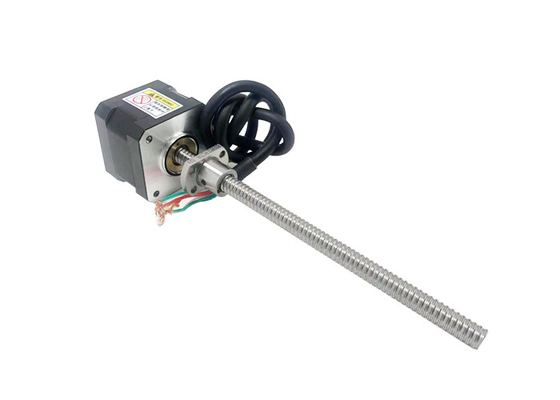

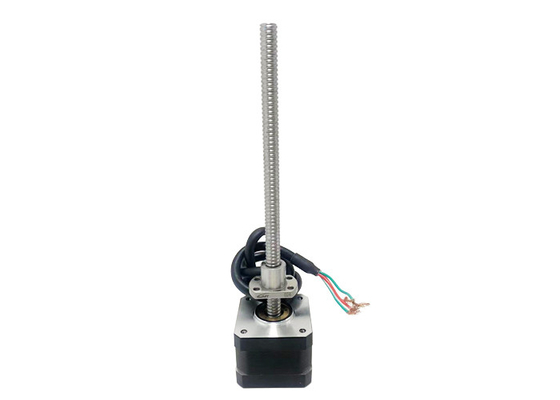

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM42BSHSM
Minimum Order Quantity 1Unit
Price $71~$143/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Size 42mm Step Angle 1.8°
Voltage (V) 2.1 / 3.7 Current (A) 1
Resistance (Ohms) 2.1 / 3.7 Inductance (mH) 1.5 / 2.3
Lead Wires 4 City Changzhou
Leave a Message
Product Description

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires

Nema 17 (42mm) hybrid stepper motor, bipolar, 4-lead, ball screw, low noise, long life, high performance, CE and RoHS certified.Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 0





Descriptions:



Product Name

42mm hybrid ball screw stepper motor

Model

VSM42BSHSM

Type

hybrid stepper motors

Step Angle

1.8°

Voltage (V)

2.6 / 3.3 / 2 / 2.5

Current (A)

1.5 / 2.5

Resistance (Ohms)

1.8 / 2.2 / 0.8 / 1

Inductance (mH)

2.6 / 4.6 / 1.8 / 2.8
Lead Wires 4

Motor Length (mm)

34 / 40 / 48 / 60

Ambient Temperature -20℃ ~ +50℃
Temperature Rise 80K Max.
Dielectric Strength 1mA Max. @ 500V, 1KHz, 1Sec.
Insulation Resistance 100MΩ Min. @500Vdc



Certifications:



Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 1

Electrical Parameters:

Motor Size

Voltage

/Phase

(V)

Current

/Phase

(A)

Resistance

/Phase

(Ω)

Inductance

/Phase

(mH)

Number of

Lead Wires

Rotor Inertia

(g.cm2)

Motor Weight

(g)

Motor Length L

(mm)

42 2.6 1.5 1.8 2.6 4 35 250 34
42 3.3 1.5 2.2 4.6 4 55 290 40
42 2 2.5 0.8 1.8 4 70 385 48
42 2.5 2.5 1 2.8 4 105 450 60

VSM42BSHSM standard external motor outline drawing:



Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 2

Notes:

Lead screw length can be customized

Customized machining is viable at the end of lead screw

Please contact us for more ball screw specifications.



VSM42BSHSMBall nut 0801 or 0802 outline drawing:

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 3



VSM42BSHSMBall nut 1202 outline drawing:

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 4



VSM42BSHSMBall nut 1205 outline drawing:

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 5

VSM42BSHSMBall nut 1210 outline drawing:

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 6





Speed and thrust curve:

42 series 34mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve





Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 7



42 series 40mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve





Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 8

Lead (mm) Linear velocity (mm/s)
1 1 2 3 4 5 6 7 8 9 10
2 2 4 6 8 10 12 14 16 18 20
5 5 10 15 20 25 30 35 40 45 50
10 10 20 30 40 50 60 70 80 90 100

Test condition:Chopper drive, no ramping, half micro-stepping, drive voltage 40V


42 series 48mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 9

42 series 60mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve

Nema 17 (42mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 2.1 / 3.7V Current 1A,4 Lead Wires 10



Lead (mm) Linear velocity (mm/s)
1 1 2 3 4 5 6 7 8 9 10
2 2 4 6 8 10 12 14 16 18 20
5 5 10 15 20 25 30 35 40 45 50
10 10 20 30 40 50 60 70 80 90 100







Test condition:Chopper drive, no ramping, half micro-stepping, drive voltage 40V



Areas of application:



Automation equipment: These motors can be used in a variety of automation equipment such as automated assembly lines, packaging machinery, automated storage systems, and more. They provide high-precision positioning and reliable motion control for precise manipulation and positioning of workpieces.



3D printers: 42 mm hybrid ball screw stepper motors can be used in the moving axes of 3D printers for precise positioning and motion control of the print head. With precise position control, high quality print results can be achieved.



CNC machine tools: These motors can be used in the motion axes of CNC machine tools such as XYZ positioning tables, milling machines, and engraving machines. They provide high accuracy, high torque output and reliable motion control for precision machining and engraving.



Medical Equipment: 42mm hybrid ball screw stepper motors can be used in medical equipment such as medical imaging equipment, surgical robots, and automated medical instruments. They provide precise position control and stable motion for fine manipulation and automation of medical processes.



Textile Machinery: These motors can be used for various axes of motion in textile machinery, such as looms, sewing machines, embroidery machines, and more. They enable high-speed, high-precision movements for the production and processing of textiles.



Robotics: 42 mm hybrid ball screw stepper motors are used in joints and actuators in robots. They provide precise position control and high torque output and are used to realize accurate motion and operation of robots.



Advantage:



High Positioning Accuracy: 42mm hybrid ball screw stepper motors offer high positioning accuracy. The ball screw transmission system reduces backlash, resulting in improved precision and repeatability. This allows the motor to accurately reach and maintain the desired position, which is crucial in applications that require precise positioning.



Increased Torque Output: These motors provide increased torque output compared to standard stepper motors. The ball screw mechanism efficiently converts the rotational motion of the motor into linear motion, resulting in improved torque transmission. This allows the motor to drive larger loads or overcome higher resistance, making it suitable for applications with demanding torque requirements.



Enhanced Load Capacity: The ball screw transmission system in these motors provides improved load-carrying capacity. The design distributes the load along the length of the screw, enabling the motor to handle higher loads and maintain stability during operation. This makes them suitable for applications that involve moving heavy loads or working in challenging environments.



Reduced Backlash: Backlash refers to the play or clearance between the screw and the nut in a transmission system. The ball screw mechanism used in these motors helps minimize backlash, resulting in improved motion control and positioning accuracy. The reduced backlash ensures that the motor responds precisely to control signals, making it suitable for applications that require tight control over movement.



Higher Efficiency: Hybrid ball screw stepper motors offer higher efficiency compared to traditional stepper motors. The ball screw transmission system reduces friction, resulting in improved energy conversion and reduced power losses. This translates to improved overall efficiency and lower power consumption, making them more cost-effective and environmentally friendly.



Smooth Operation: The ball screw mechanism provides smoother and more precise linear motion compared to other transmission systems. This smooth operation reduces vibration and noise levels during motor operation, ensuring a quieter and more stable performance. Consequently, these motors are suitable for applications where noise and vibration need to be minimized.



Longevity and Reliability: 42mm hybrid ball screw stepper motors are designed for durability and long service life. The ball screw mechanism, combined with high-quality components, ensures reliable and consistent performance even in demanding operating conditions. This results in reduced maintenance requirements and improved system reliability.

Motor Selection Requirements:

►Movement/mounting direction

►Load Requirements

►Stroke Requirements

►End machining requirements

►Precision Requirements

►Encoder Feedback Requirements

►Manual Adjustment Requirements

►Environmental Requirements
