18 degree step angle 15mm external drive permanent magnet linear stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM15-TBD |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase Inductance | 9(±10%）Ohm/20C | No. Of Phases | 2 Phases |
|---|---|---|---|
| Maximum Thrust | 10N | Step Angle | 18 Degrees |
| Rated Voltage | 5V DC | Lead | 0.5mm 1.0mm |
| Screw Diameter | 15mm |
Product Description

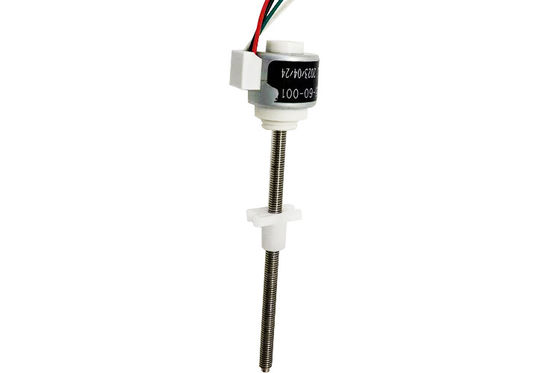

15mm external drive permanent magnet linear stepper motor
This is a 15mm permanent magnet linear stepper motor with external drive.
The outer diameter of the motor is 15mm, the step angle is 18 °, the screw diameter is 3.0mm, and the maximum thrust is 10N. Suggested load less than or equal to 8N
Step size=(Step size/360) * Lead (mm)
The available leads are 0.4mm, 0.5mm, and 1mm
Please note that speed and acceleration should also be considered when selecting the appropriate wire. The speed of a linear stepper motor is inversely proportional to the thrust, which means that increasing the operating speed of the motor will correspondingly reduce the thrust of the motor.
At the same time, it is also necessary to consider: work cycle, system life, environmental factors, repeated positioning accuracy, noise and vibration requirements, acceptable backlash, acceleration/deceleration requirements, driving conditions, horizontal or vertical
Mechanical Dimension:MM
STEP SPEED AND THRUST CURVE:
Technical Features
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
-
Medical Equipment
-
Automatic Control
-
3D Printer
-
Precision Calibration
-
Precision Fluid Measurement
-
Precise Position Movement
Specifications
|
Motor diameter |
15mm |
|
Rated voltage |
4V 5V 12V |
|
No. of phases |
2 Phases |
|
Phase Current |
200mA 160mA 70mA |
|
Phase Inductance |
20Ω 33Ω 180Ω |
|
Step angle |
18 degree |
| Stear Travel | 0.02mm 0.025mm 0.05mm |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
