18° Step Angle 5Vdc gear motor 10mm screw motor stepper motor with encoder suitable for medical equipment
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-50G-35M3-2CH-ENCODER |
| Minimum Order Quantity | 1Unit |
| Price | $4.35~$10/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Phase | 2 |
|---|---|---|---|
| Place Of Origin | Jiangsu, China | Current / Phase | 0.5A |
| Voltage | 5V | Gear Ratio | 1/50 Customizable |
| Step Angle | 18 Degree | Motor Length | 27.5mm |
Product Description
5Vdc gear motor 10mm screw motor stepper motor with encoder suitable for medical equipment
This product consists of a micro stepper motor with an outer diameter of 10MM and a precision metal reducer. The commonly used gear reduction ratios for the motor are 1:2 1:5 1:10 1:15 1:20 1:30 1:36 1:50 1:63 1:67 1:89 1:100 1:110 1:150 1:172 1:210 1:250 1:275 1:298 1:380 1:420 1:500 1:600 1:1000. The reduction ratios can be customized according to customer needs.
The conventional lead screw for the output shaft of the motor is M3P0.5, and the diameter of the D-axis is 3mm D2.5mm. The output shaft type can also be customized according to customer installation
For motor connection, it is usually a connecting wire, and output methods such as bare needle and FPC can also be customized
All parts of the product are processed on precision equipment and adopt advanced and reliable assembly processes, making the product characterized by high transmission efficiency, low noise, and high reliability.
Mechanical Dimension:MM
SM15-18.6L- external shaft Specification:
|
Product Name |
10mm mini gear box stepper motor |
|
Model |
SM10-50G-35M3-2CH-ENCODER |
|
Resistence |
40Ω±7%/phase |
|
Step angle |
18° |
|
Motor diameter |
10mm |
|
Phase |
2 |
|
Gear Ratio |
1:21~1:1030 |
|
Certification |
RoHS |
| Voltage | 5V |
|
Motor length |
27.5mm |
|
OEM&ODM Service |
Available |
Product features:
Application:
Robotics field: Micro geared stepper motors can be used as joint drivers for robots to realize precision control and movement of robots.
Automation equipment field: micro-geared stepper motors can be applied to various equipment in automated production lines, such as conveyor belts, printing equipment, packaging machinery, etc., to realize automation control and precise positioning.
Medical equipment field: micro-geared stepper motors can be applied to precision control in medical equipment, such as surgical robots, medical cameras, medical syringes and so on.
Electronic equipment field: micro-geared stepper motors can be used for precision control of various electronic equipment, such as precision instruments, digital cameras, auto-focusing mechanism.
Automotive components field: micro-geared stepper motors can be applied to precision control of automotive components, such as volume adjustment of car audio, window lifting, electric mirrors and so on.
Production workshop:

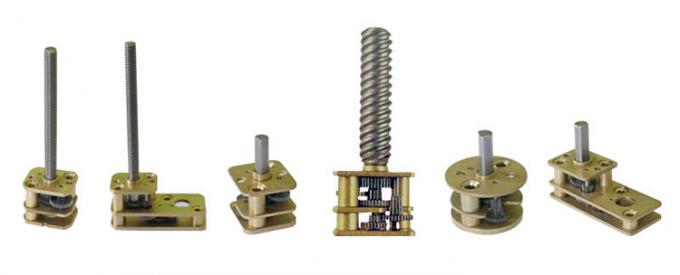

TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
TYPE of SHAFT:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
