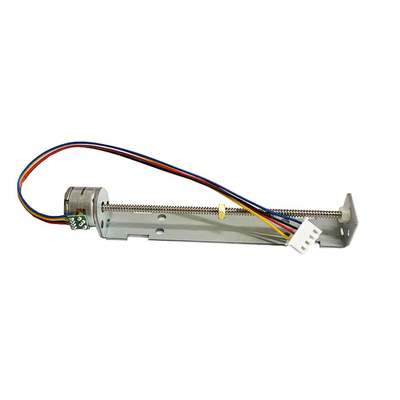

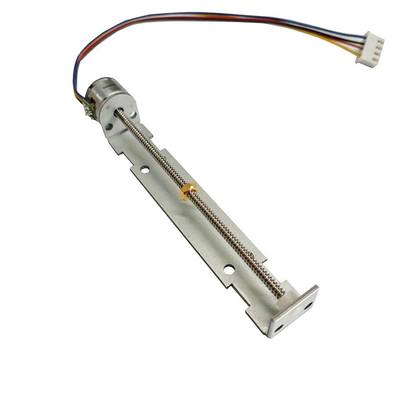

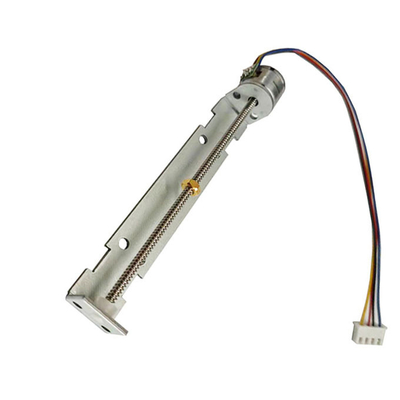

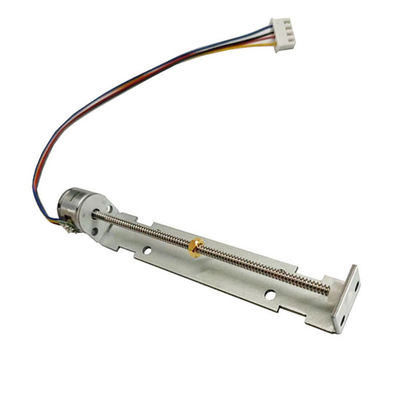

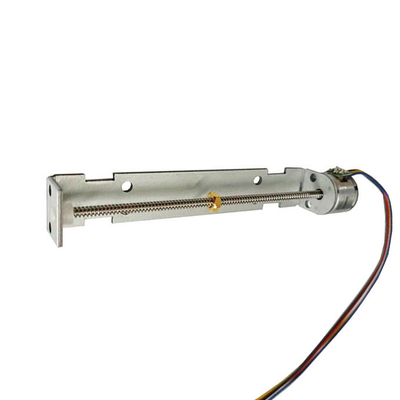

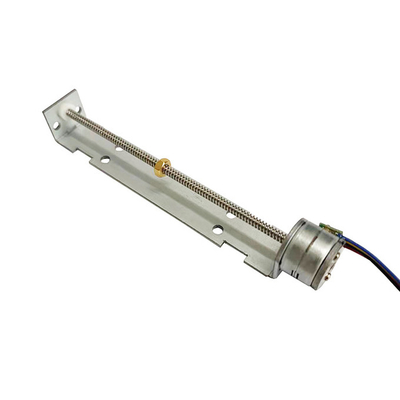

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit

  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM1567A
Minimum Order Quantity 1Unit
Price $3~$11/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5V Resistance 15Ω±10%
Weight 10g Rotation CW/CCW
Type Permanent Magnet
Leave a Message
Product Description

 SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit

This 1567A motor is a 15mm diameter linear stepper motor. It’s attached with a 1mm pitch 2 starts 3mm diameter trapezoidal lead screw, and there is a copper nut.

The connector is JST XHP-4 connector (2.5mm pitch, 4 pin).

You can customize lead screw’s length and connector type.

Feel free to contact us if you are interested in this product.





Mechanical Dimension:MM

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 0

Custom Type Reference Example



WERE3

Typical Applications

Camera Lens: The 15mm linear slide stepper motor is used in various camera lenses, including surveillance cameras and digital cameras. They are used for precise and accurate control of the lens focus and zoom.



Security Equipment: The 15mm linear slide stepper motor is used in various security equipment, including access control systems and cameras. They are used for precise and accurate control of the camera movement and positioning.



Medical Equipment: The 15mm linear slide stepper motor is used in various medical equipment, including surgical instruments and laboratory equipment. They are used for precise and accurate control of the equipment movement and positioning.



Intelligent Robots: The 15mm linear slide stepper motor is used in various intelligent robots, including robotic arms and grippers. They are used for precise and accurate control of the robot movement and positioning.



Automotive Instrumentation: The 15mm linear slide stepper motor is used in various automotive instrumentation, including speedometers and fuel gauges. They are used for precise and accurate control of the instrument movement and positioning.



Scanners: The 15mm linear slide stepper motor is used in various scanners, including flatbed scanners and document scanners. They are used for precise and accurate control of the scanner movement and positioning.



the 15mm linear slide stepper motor is a compact and precise motor that finds applications in several industries and products. Its precision, accuracy, and reliability make it an ideal choice for many applications that require precise and accurate motion control.

Electrical Parameters:

Model No. SM1567A
Motor type 15mm linear stepper motor
Rated voltage 5V
Coil resistance 15±10%Ω
Step angle 18°/step
Phase No. 2 phases bipolar
Lead screw type Tr3*1p*2N
Lead screw lead 2mm
Step travel length 0.1mm/step
Travel stroke About 86mm



Advantage



Compact Size: The 15mm linear slide stepper motor is compact in size, making it easy to integrate into small devices and systems. This makes it an ideal choice for applications where space is limited.



High Precision: The 15mm linear slide stepper motor provides high precision motion control, with accurate positioning and repeatable movement. This makes it an ideal choice for applications that require precise and accurate motion control.



Accurate Speed Control: The 15mm linear slide stepper motor provides precise speed control, allowing for accurate and repeatable motion control. This makes it an ideal choice for applications that require precise speed control.

Torque Curve For Reference



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 2

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 3



Product Detail Presentation

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 4
SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 5
SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 18 degree $3~$11/Unit 6

Lead Time and Packaging Information:



Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
