Customizable stroke 15mm external drive permanent magnet linear stepper motor
|Place of Origin
|Minimum Order Quantity
|Standard export package, or can be customized
|15-30 work days
|Western Union, T/T, L/C, MoneyGram
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|No. Of Phases
External drive linear stepper motor with 18 degree step angle of 15mm pm stepper motor

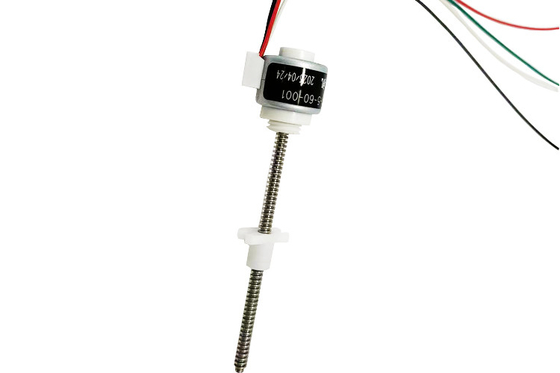

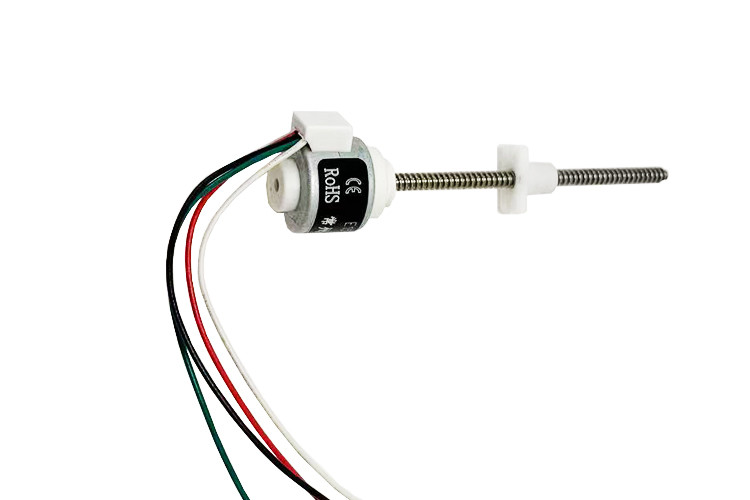

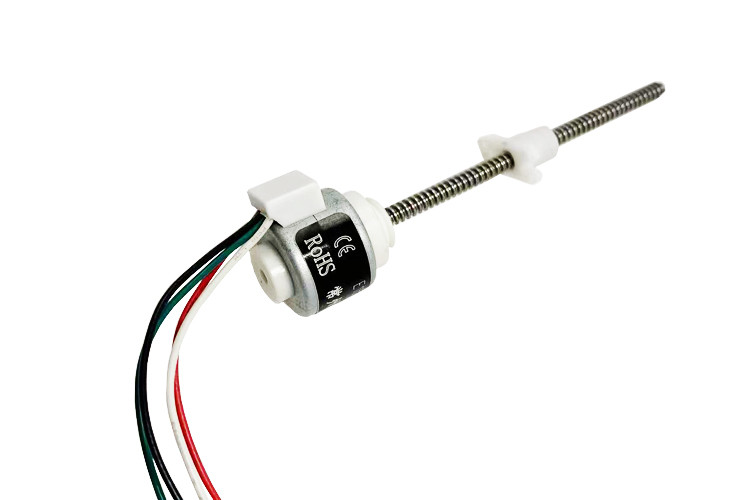

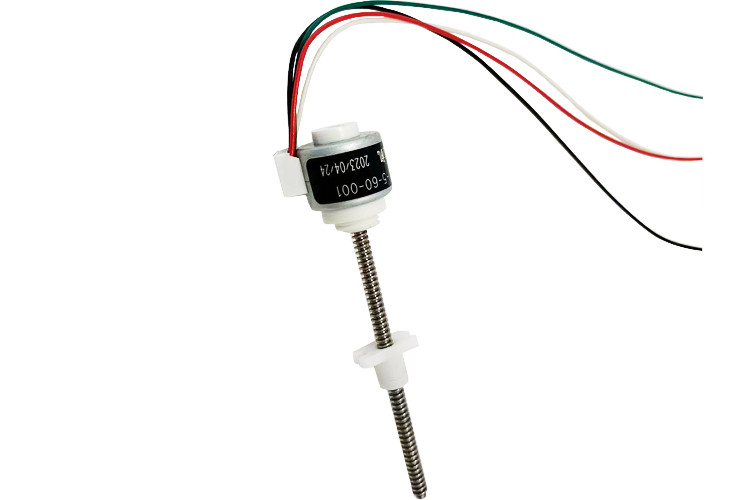

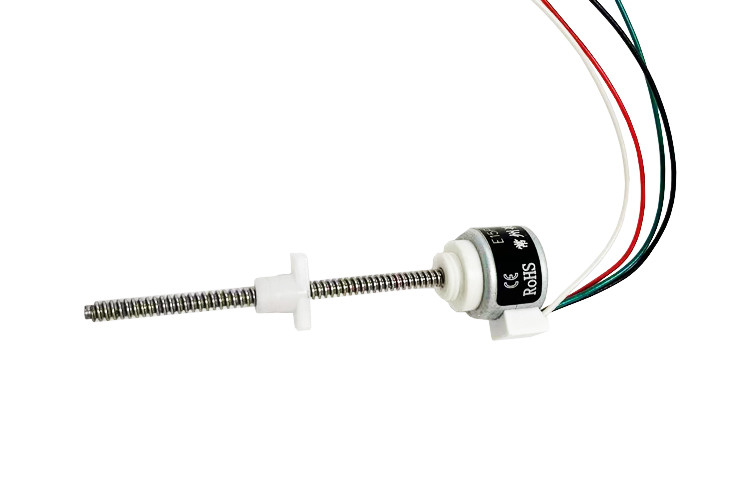

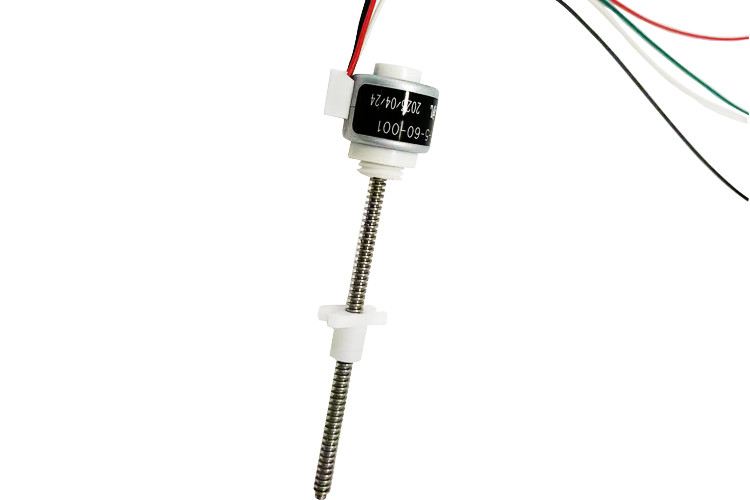

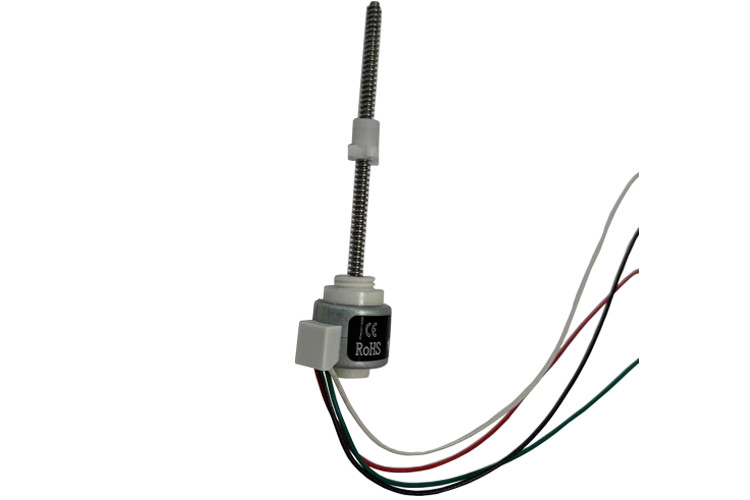

This is a 15mm permanent magnet linear stepper motor with external drive.
The outer diameter of the motor is 15mm, the step angle is 18 °, the diameter of the screw rod is 3.0mm, and the maximum thrust is 10N. It is recommended that the load be less than or equal to 8N
Step length=(step angle/360) * lead (mm)
The available leads are 0.4mm, 0.5mm, and 1mm
Note that when selecting the appropriate lead, velocity and acceleration should also be considered. The speed of a linear stepper motor is inversely proportional to the thrust, that is, increasing the operating speed of the motor will correspondingly reduce the thrust of the motor.
At the same time, it is also necessary to consider: work cycle, system life, environmental factors, repeated positioning accuracy, noise and vibration requirements, acceptable backlash, acceleration/deceleration requirements, driving conditions, horizontal or vertical installation.
STEP SPEED AND THRUST CURVE:
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Precision Fluid Measurement
Precise Position Movement
