SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox

  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
  • SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM08-GB10
Minimum Order Quantity 1Unit
Price $3~7/unit
Packaging Details Standard export package, or can be customized
Delivery Time 3~20 days after the sample is paid
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 5000 PCS 25days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gearbox Type 10*8 Mm Gearbox Gearbox Ratio 20:1~250:1
Motor Type Bipolar Stepper Motor Motor Diameter 8mm
Output Shaft D Shaft/lead Screw Shaft Voltage(v) 40Ω/phase
Step Angle 18 Degree
Leave a Message
Product Description

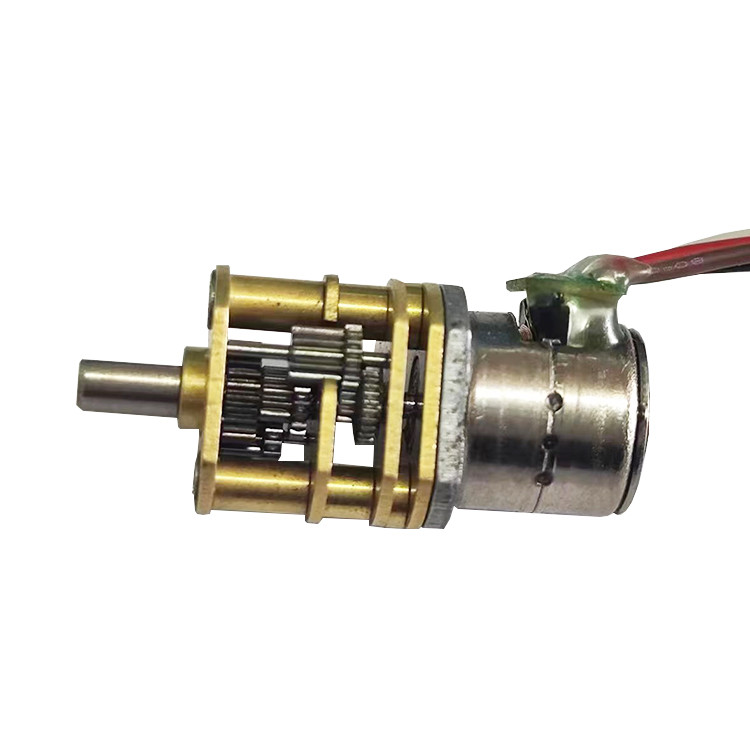

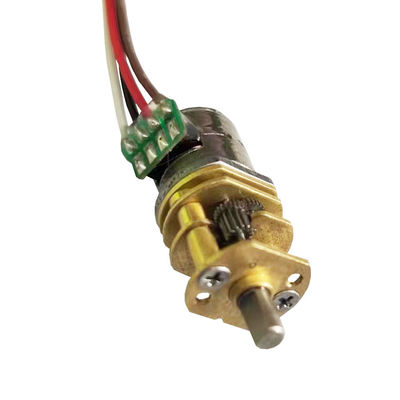

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox

This is a 8mm motor attached with a gearbox on top.

We have different gear ratios for choice, including 20:1/50:1/100:1/250:1, four types of gear ratios.

With bigger ratio, motor has bigger output torque, and slower output speed.

Customers can choose gear ratio based on their needs on torque/speed.



Motor’s shaft is 2.5mm diameter D shaft.

It can also be customized into lead screw shaft, such as M2*0.4P or M3*0.5P lead screw.



There are two M1.4 screw holes on top of the gearbox, where users can fix the motor with two M1.4 screws.



Motor’s resistance, cable length and connector type are all customizable.

Motor parameters:

Motor type Bipolar stepper motor
Rated voltage 40Ω
Rated voltage 5V DC
Step angle 18°/gear ratio
Phase No. 2 phases
Gearbox type 10*8mm GB10 gearbox
Output shaft type 2.5mm diameter D shaft
Connector type 51021-0400(1.25mm pitch)



Gearbox parameters:

Gear ratio 20:1 50:1 100:1 250:1
Precise ratio 20.313 50.312 99.531 249.943
Tooth number 14 14 14 14
Gear levels 3 5 5 5
Efficiency 71% 58% 58% 58%

Design drawing (Unit:mm)

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox 0



Product display:

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox 1





Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Torque Curve For Reference



Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox 2

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox 3

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

SM08-GB10 8mm diameter bipolar stepper motor with D shaft gearbox 4
