Low Noise Reduction Gear Box Stepper Motor Permanent Magnet Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 25BYJ412-7L |
| Minimum Order Quantity | 1Unit |
| Price | $5~7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coil Type | Bipolar | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Drive Method | 2-2 Phase |
| Step Angle | 7.5° | Drive Voltage(v) | 2.2~3.4V |
| Resistance | 5Ω±7%/phase | Approval | ROHS |
| High Light | Low Noise Permanent Magnet Stepper Motor,bipolar Reduction gear box Motor,ROHS Reduction gear box Motor |
||
Product Description

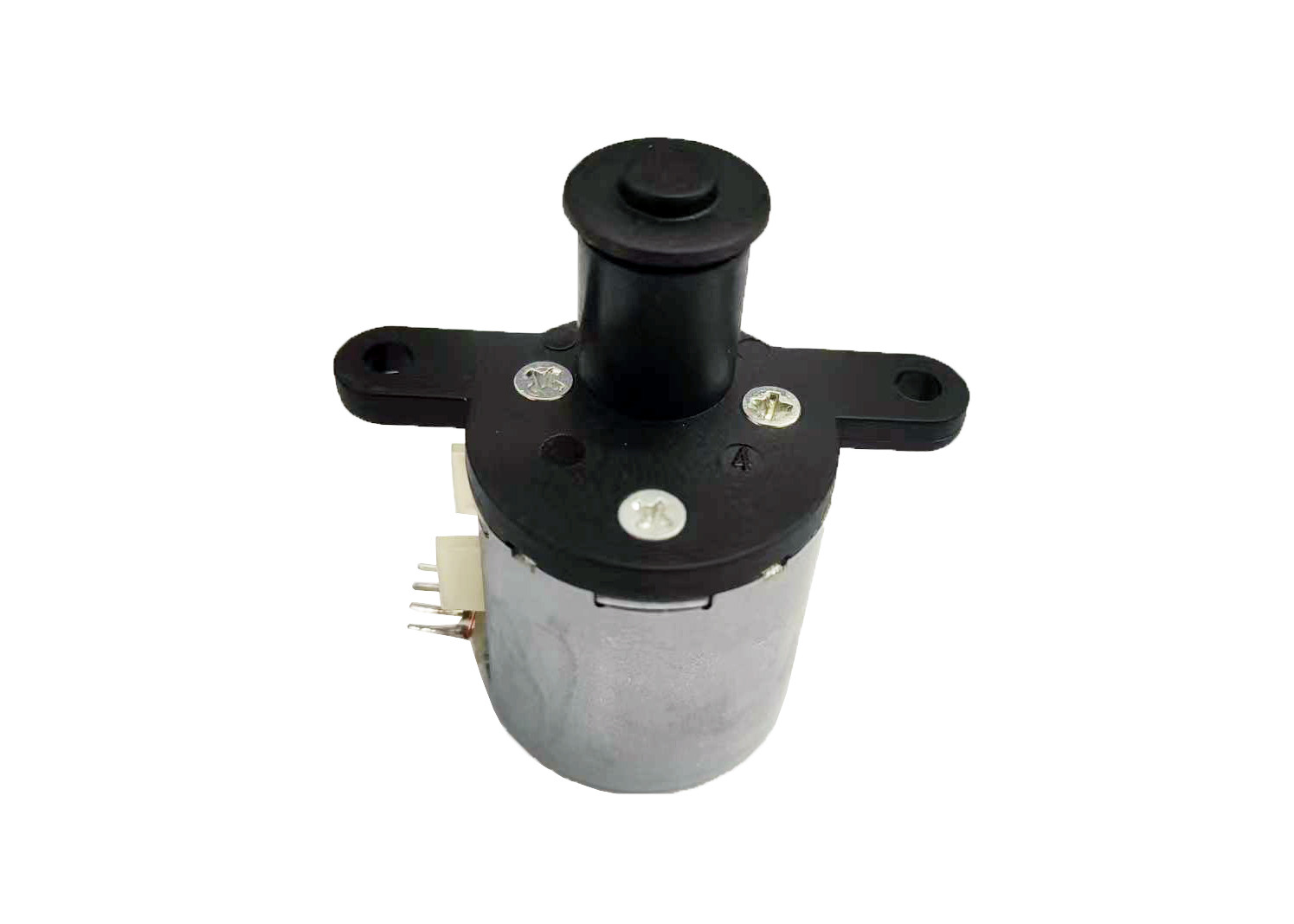

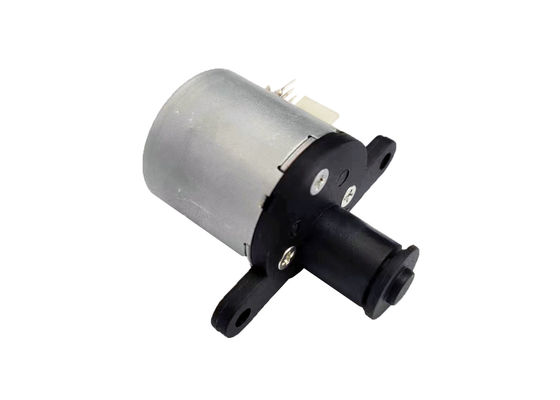

25BYJ412-7L geared stepper motor Chinese wholesale supply low noise permanent magnet stepper motor
The motor has the characteristics of small size, high precision and high strength.
The stepper motor has a built-in reduction gearbox to achieve a 1:10 reduction ratio for improved torque, and finally, an output ejector with stop-stop structure is used to allow the slider to move back and forth without rotation. The normal thrust is over 10 kilograms.
External wiring parts are available in various types and lengths of wiring, or FPC FFC, according to customer requirements. The shape of the installation plate and the Angle of the air outlet can be adjusted according to customer needs!
About the design of this motor, there are two holes on motor’s cap (used as mounting holes), and hole distance is 37mm, and we also have 31 mm version. This motor is attached with a 1.25mm pitch connector (Molex 51021-0400)
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model No | 25BYJ412-7L |
| Resistance | 5Ω±7%/phase |
| Starting frequence | 750 pps 2.6V DC) |
| Running Frequence | 800 pps 3.0V DC) |
| Drive method | 2-2 phase |
| Storage temperature | -20~+50 ℃ |
| OEM & ODM SERVICE |
AVAILABLE |
Application Highlights
Refrigeration Industry Air Conditioner, Fan Winding possibilities - Bipolar
Electric Generator Valve Control Maintenance free - motor is brush
Other Industries & Applications Robotics Cost effective - compact design, lower integration cost
Monitoring Industry(CCTV) Camera Excellent open loop control - No encoders necessary
Sanitary Ware Automatic Toilet Bowl Digitally controlled - Easy to use with a micro processor
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Product Detail Presentation
FAQ:
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if you want.
3. Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra customization cost.
No, we don’t send free samples.
4. What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
5. What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
6. Can we sign a NDA contract if we want to develop a new product?
Yes, we can sign NDA contract and protect your confidentiality.
Feel free to contact us if you have a new project to develop.
