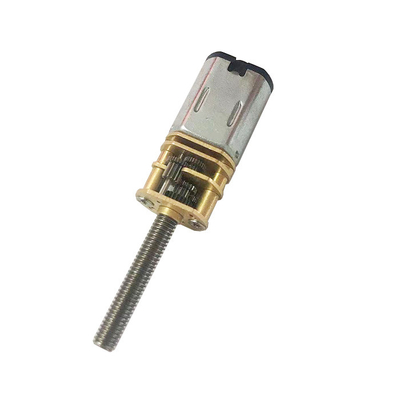

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft

  • Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
  • Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
  • Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
  • Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
  • Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: GM10-M10
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $2.5~6/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 15-30 work days
Payment Terms: MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability: 10000Units/month
Contact Now
Detailed Product Description
Type: M10 Brushed DC Motor Gearbox Type: GM10 (8*10mm)
Output Shaft Type: M3*0.5P Rated Voltage: 5V DC
Unloaded Speed: 20000RPM/gear Ratio Gear Ratio: 20:1/50:1/100:1/250:1
High Light:

Micro M10 Brushed DC Motor

,

Brushed DC Motor With Gearbox Reducer

,

5V Lead Screw Shaft Gearbox Reducer

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft

This is a M10 brushed DC motor with gearbox on top.

Gearbox is GM10 (8*10mm size), and we have different gear ratio for choice, including 20:1/50:1/100:1/250:1.

Rated voltage is 5V DC, and we also have 3V DC version, if you require lower rated voltage.



Output shaft is regular M3 lead screw, lead screw length is adjustable, if customers need it to be longer/shorter.



Before you place order, please confirm gear ratio/rated speed/ lead screw length.



Motor parameters:

Model No. GM10-M10
Motor type M10 DC motor
Output shaft type M3*0.5P length
Unloaded speed 20000 RPM/gear ratio
Gearbox type GM10 gearbox
Rated voltage 5V DC (Adjustable)
Lead screw length 18mm (Adjustable)

Gearbox parameters:

Gear ratio 20:1 50:1 100:1 250:1
Precise ratio 20.313 50.312 99.531 249.943
Tooth number 14 14 14 14
Gear levels 3 5 5 5
Efficiency 71% 58% 58% 58%

Mechanical Dimension:MM

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 0

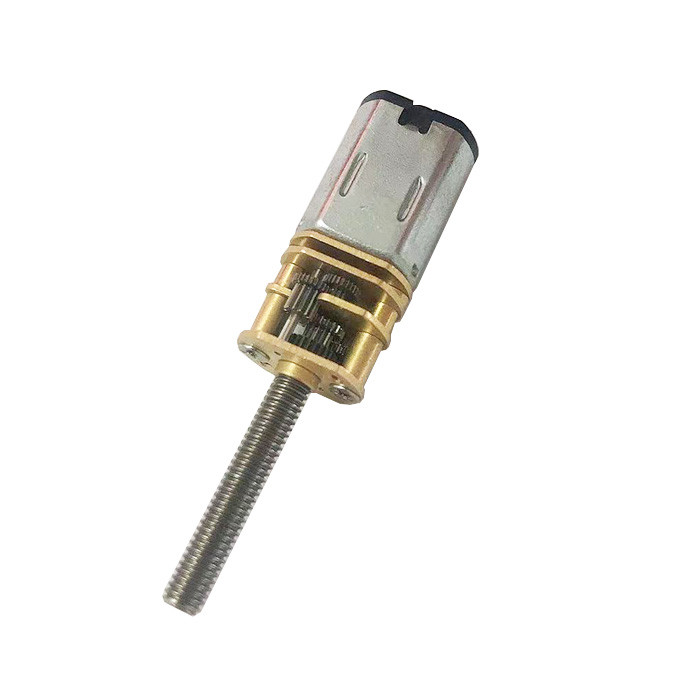

Product display

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 1



Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics



Type of Wire Connect



Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 2

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 3

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 4

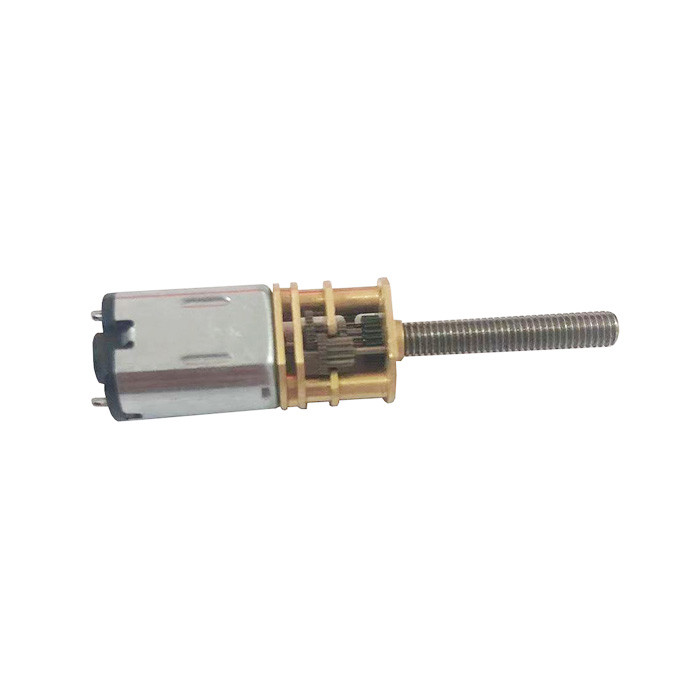

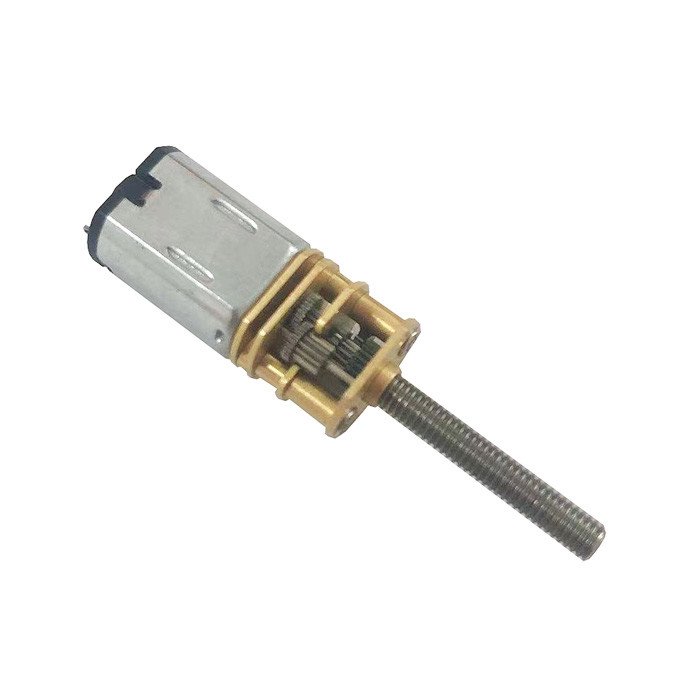

Product Detail Presentation

Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 5



Micro M10 Brushed DC Motor With Gearbox Reducer 5V Lead Screw Shaft 6
