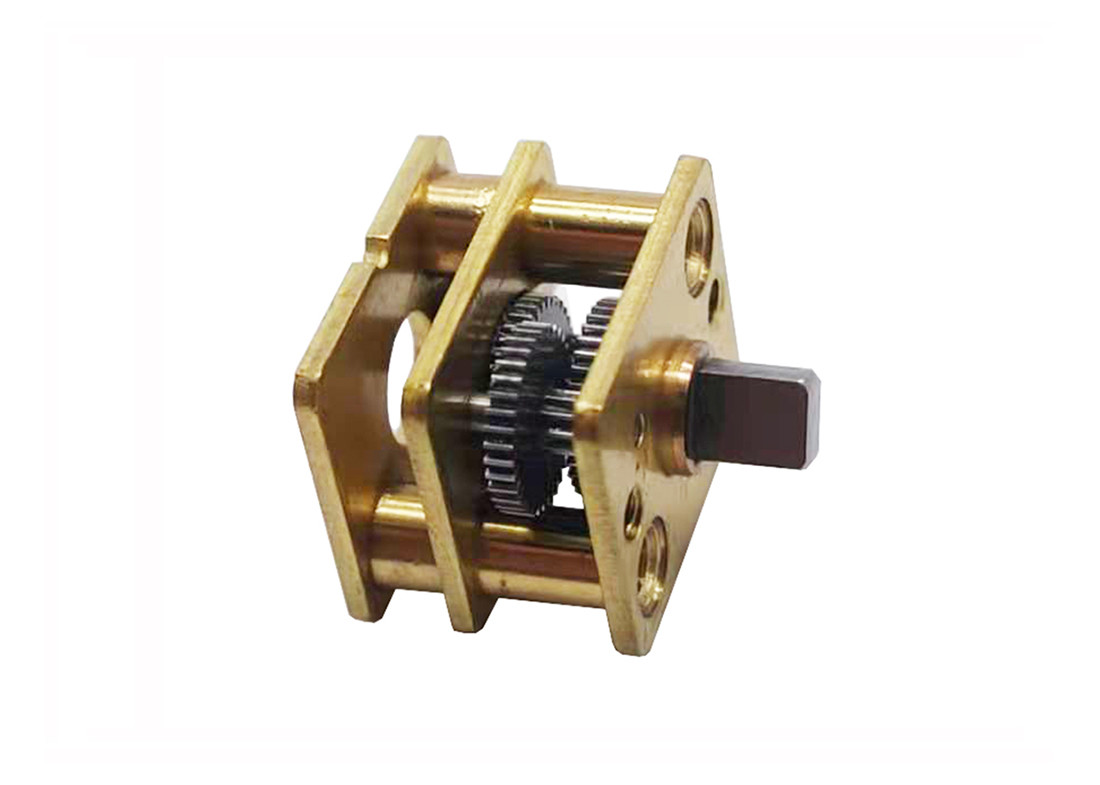

8*6mm Polygon Stepper Motor Gear Reducer Customized Shaft

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS REACH-SVHC
Model Number 8GB
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Metal Size 8mm*6mm
Gear Ratio Optional
High Light

Polygon Stepper Motor Gear Reducer

,

8x6 mm Stepper Motor Gear Reducer

,

Customized Shaft Micro Gearbox

Leave a Message
Product Description

8*6mm Polygon Stepper Motor Gear Reducer Can Be Customized Shaft

Gear reduction ratio is 1:10 1:100 1:200 1:250, the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.

8*6mm Polygon Stepper Motor Gear Reducer Customized Shaft 0



Mechanical Dimension:MM

8*6mm Polygon Stepper Motor Gear Reducer Customized Shaft 1

Technical Features

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

8*6mm Polygon Stepper Motor Gear Reducer Customized Shaft 2

  • Round Type : DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type

  • I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

Specifications

No. Reduction

Ratio

Number

of step

Dimensions Rated torque Instantaneous allowable torque Noise
1 3 2 8*6 100g.cm 300g.cm <30db
2 20 2 8*6 100g.cm 300g.cm <30db
3 100 4 8*6 200g.cm 600g.cm <30db

Can be used with motor interface size

Screw hole type Screw hole nominal size Screw hole pitch
Level M1.2 5.4mm





Installation method: Pressing the motor gear on the motor shaft - connecting plate and motor mounting - the reducer is fixed on the connecting plate.

Operating temperature: ‘-10°C~ +60°C

Environmental certification: ROHS REACH-SVHC



Competitive Advantage



GM gear motor series micro gear reducer has nearly ten shape options, nearly 100 kinds of reduction ratio, hundreds of output shaft types
Good electrical, mechanical properties and consistency
Low noise, low load current, large output torque
Environmentally friendly materials, through the EU's most stringent ROHS certification, REACH-SVHC certification
Customized special micro gear reduction motors according to customer requirements.



Typical Applications

The miniature gearbox is mainly suitable for micro gear reducer motors, and the miniature gear reducer motor is mainly used for industrial product drive,Instrumentation,medical instruments,Electric household appliances,Acoustic image,office automation.
The fields of aerospace and automobile are the electromechanical products that are developing in the direction of scientific and technological intelligence automation in the development of national economy.
Typical products such as:



Coffee machine camera vending machine Money counter
Electronic door lock projector CD-ROM hair dryer
electrical tools monitor Game machine Electric shaver
Camera instrument robot Gas valve Massager, etc.



In addition, our company can also design and manufacture special miniature gear reducer motors according to customer needs.
