12GB 15mm micro gear box 10*9 mm square metal 10mm micro gearbox for DC motor and Stepper motor
Place of Origin | Jiangsu, China (Mainland) |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS REACH-SVHC |
Model Number | 12GB-3 |
Minimum Order Quantity | 1Unit |
Price | $3~$7/Unit |
Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
Delivery Time | 15-30 work days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Metal | Size | 10mm*9mm |
---|---|---|---|
Gear Ratio | 1:3 | ||
High Light | low speed high torque gearbox,stepper motor gear reduction box |
12GB 15mm micro gear box 10*9 mm square metal 10mm micro gearbox for DC motor and Stepper motor
Gear reduction ratio is 1:5 1:10 1:20 1:30 1:50 1:100 1:210 1:250 1:298 1:380 1:500 1:1000 the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
Mechanical Dimension:MM
Technical Features
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Specifications
12GB square series (speed reducer performance parameters)
No. | Ratio | Level | Size | Rated torque | Instantaneous torque | Noise |
1 | 3 | 2 | 12*10*9 | 200g.cm | 600g.cm | <60db |
2 | 5 | 2 | 12*10*9 | 200g.cm | 600g.cm | <60db |
3 | 10 | 2 | 12*10*9 | 200g.cm | 600g.cm | <60db |
4 | 17 | 4 | 12*10*9 | 300g.cm | 900g.cm | <60db |
5 | 20 | 4 | 12*10*9 | 300g.cm | 900g.cm | <60db |
6 | 30 | 4 | 12*10*9 | 300g.cm | 900g.cm | <60db |
7 | 36 | 4 | 12*10*9 | 300g.cm | 900g.cm | <60db |
8 | 50 | 4 | 12*10*9 | 400g.cm | 1200g.cm | <60db |
9 | 63 | 4 | 12*10*9 | 400g.cm | 1200g.cm | <60db |
10 | 100 | 4 | 12*10*9 | 500g.cm | 1500g.cm | <60db |
11 | 110 | 5 | 12*10*9 | 500g.cm | 1500g.cm | <50db |
12 | 150 | 5 | 12*10*9 | 500g.cm | 1500g.cm | <50db |
13 | 210 | 5 | 12*10*9 | 800g.cm | 2400g.cm | <50db |
14 | 250 | 5 | 12*10*9 | 800g.cm | 2400g.cm | <50db |
15 | 298 | 5 | 12*10*9 | 800g.cm | 2400g.cm | <50db |
16 | 380 | 5 | 12*10*9 | 800g.cm | 2400g.cm | <50db |
17 | 372 | 7 | 12*10*11 | 1000g.cm | 3000g.cm | <40db |
18 | 625 | 7 | 12*10*11 | 1000g.cm | 3000g.cm | <40db |
19 | 1000 | 7 | 12*10*11 | 1000g.cm | 3000g.cm | <40db |
Can be used with motor interface size
Screw hole type | Screw hole nominal size | Screw hole pitch | |||
Level | M1.6 | 9.44mm |
Installation method: Pressing the motor gear on the motor shaft - connecting plate and motor mounting - the reducer is fixed on the connecting plate.
Operating temperature: ‘-10°C~ +60°C
Environmental certification: ROHS REACH-SVHC
Competitive Advantage
GM gear motor series micro gear reducer has nearly ten shape options, nearly 100 kinds of reduction ratio, hundreds of output shaft types
Good electrical, mechanical properties and consistency
Low noise, low load current, large output torque
Environmentally friendly materials, through the EU's most stringent ROHS certification, REACH-SVHC certification
Customized special micro gear reduction motors according to customer requirements.
Typical Applications
The miniature gearbox is mainly suitable for micro gear reducer motors, and the miniature gear reducer motor is mainly used for industrial product drive,Instrumentation,medical instruments,Electric household appliances,Acoustic image,office automation.
The fields of aerospace and automobile are the electromechanical products that are developing in the direction of scientific and technological intelligence automation in the development of national economy.
Typical products such as:
Coffee machine | camera | vending machine | Money counter |
Electronic door lock | projector | CD-ROM | hair dryer |
electrical tools | monitor | Game machine | Electric shaver |
Camera instrument | robot | Gas valve | Massager, etc. |
In addition, our company can also design and manufacture special miniature gear reducer motors according to customer needs.

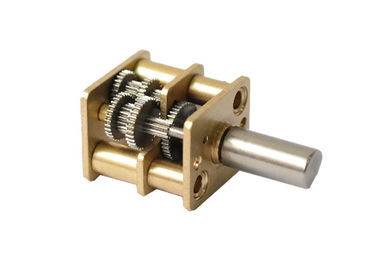

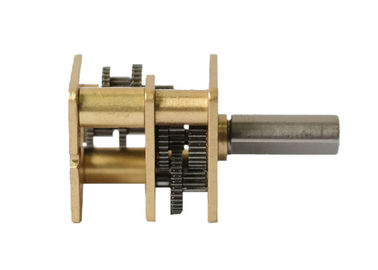

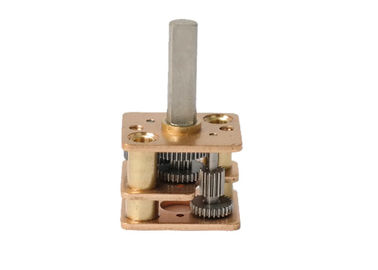

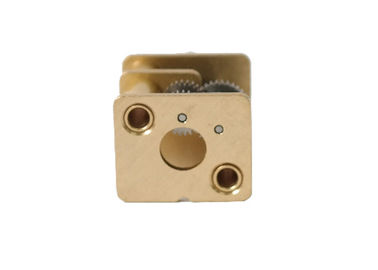

Product Detail Presentation
