NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 42BYGH34-36PG19
Minimum Order Quantity 1Unit
Price $28~55/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 10000Units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gear Motor Construction Permanent Magnet
Continuous Current(a) Customized Certification ROHS
Number Of Phase 4 Phase Step Angle 1.8° Deg
Rated Voltage 2.8V Rated Current/Phase 1.33A(Reak Value)
Phase Resistance 2.1Ω±10%(20℃) Phase Inductance 2.5mH±20%(1kHz 1V RMS)
Original Holding Torque 2.6kg.cm Insulation Class B(130°)
High Light

42mm Planetary Gearbox Hybrid Stepper Motor

,

NEMA17 Gearbox Hybrid Stepper Motor

,

ROHS 1.8deg Geared Stepper Motor

Leave a Message
Product Description

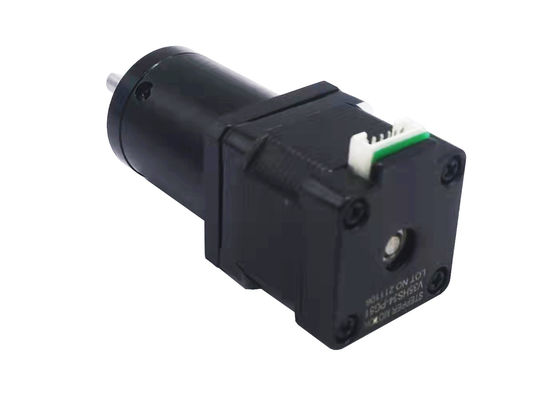

NEMA 17 High Torque 42mm Hybrid Stepper Motor W/ Planetary Gearbox



This is NEMA 17 hybrid stepper motor with a planetary gearbox.

There are different gear ratios available, from 3.71:1 to 719.98

Gearbox’s length 32.2mm~57mm, is related to gear levels.

Shaft type, and shaft length is customizable.



Motor’s torque= original torque*gear ratio* gearbox efficiency

Motor’s speed=original speed/gear ratio





NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 0

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 1

Mechanical Dimension:MM

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 2

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name Geared stepper motor
Model 42mm hybrid motor(NEMA 17)
Rated Voltage 2.8V
NO.OF PHASES 4 phase
STEP ANGLE 1.8°/STEP
Rated voltage 2.8V
COIL RESISTANCE 2.1Ω±10%(20°)
PHASE INDUCTANCE 2.5±20% mH(1kHz 1V RMS)
HOLDING TORQUE 2.6 kg.cm
INSULATION CLASS B(130°)



Gearbox parameters:

Levels Efficiency Gearbox length(mm) Optional gear ratio
1 90% 32.2 3.71/5.18
2 80% 40 13.76/19.22/26.83
3 72% 50 51.06/71.30/99.55/138.99
4 57% 57

189.45/264.52/

369.32/516.66/719.98

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 3

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 4

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 5

Product Detail Presentation

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 6









Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

NEMA 17 High Torque Hybrid Stepper Motor 42mm W/ Planetary Gearbox 7



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)





FAQ:

1.Are you a manufacturer or a trader?

We are the manufacturer. We manufacture the motors ourselves.



2.Where is your factory? Can we visit your factory?

Our factory is located in Changzhou, Jiangsu. If you would like to visit our factory, please feel free to visit us.



3.Do you provide customized samples/free samples?

We can customize the sample, but need additional customization cost.

No, we do not provide free samples.



4.What is the lead time for samples?

For stock samples, delivery time is 3 days.

For samples that are not in stock, the lead time is about 15 days.

For customized samples, the lead time is about 25 to 30 days.



5. What custom service do you provide?

We have a development team with over 20 years of experience.

We can provide customers with customized services for various motor parts.

From the design of the slider, lead screw and gear box of the motor.

Cable length, connector type and FPC design.



6.If we want to develop a new product, can we sign an NDA contract?

Yes, we can sign an NDA contract with you and protect your confidentiality.

If you have a new project to develop, please feel free to contact us.
