NEMA17 Linear Lead Screw Hybrid Stepper Motor 42mm With POM Brass Nut
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | VT42HS40- |
| Minimum Order Quantity | 1Unit |
| Price | $12~$33/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 3.7Ω±15% | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8° |
| Shaft Type | Tr8 | Lead Screw Pitch | 2mm |
| High Light | Linear Lead Screw Hybrid Stepper Motor,POM Brass Nut Hybrid Stepper Motor,NEMA17 Linear Stepper Motor |
||
Product Description

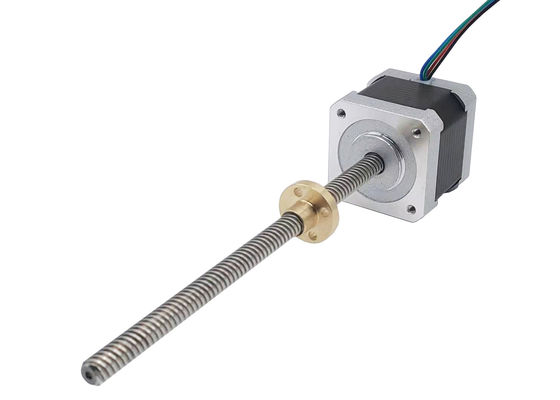

NEMA17 External Drive Linear Lead Screw Hybrid 42mm Stepper Motor with POM Brass Nut
This is 42mm hybrid linear stepper motor with lead screw.(NEMA 17)
Output shaft is TR8 (8mm diameter trapezoidal screw) and it has different pitch and lead.
Motor’s travel distance, and thrust is determined by motor’s lead.
We have different options for you to choose.
Lead screw length is customizable
Also we provide nut to match with lead screw. POM and brass nut are both optional.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Nut design:
Parameter sheet:
| Model No. | VT42HS40 |
| Motor type | Linear hybrid stepper motor |
| Motor size | 42mm * 40mm (Width*height) |
| Lead screw type | trapezoidal screw |
| Lead screw length | Adjustable |
| Nut material | POM / brass |
| Lead screw diameter | Screw Lead (mm) | Screw pitch(mm) | Travel per step(mm) |
|
TR8 (8mm) |
1 | 1 | 0.005 |
| 2 | 2 | 0.1 | |
| 3 | 1.5 | 0.015 | |
| 4 | 2 | 0.02 | |
| 8 | 2 | 0.04 | |
| 10 | 2 | 0.05 | |
| 12 | 2 | 0.06 | |
| 14 | 2 | 0.07 |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
