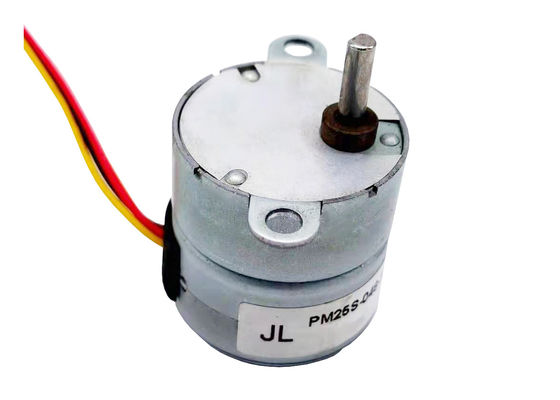

High Torque Geared Stepper Motor Customizable 5Vdc 25mm

High Torque Geared Stepper Motor Customizable 5Vdc 25mm

  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
  • High Torque Geared Stepper Motor Customizable 5Vdc 25mm
High Torque Geared Stepper Motor Customizable 5Vdc 25mm
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM25-048S-193
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $5~8/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 10~30 days after the sample is paid
Payment Terms: MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability: 10000 PCS 45days
Contact Now
Detailed Product Description
Type: Gear Motor Torque: High Torque
Construction: Permanent Magnet Continuous Current(a): Customized
Certification: ROHS Voltage(v): 5V~24V
Output Shaft: Customizable Reduction Ratio: Customizable1:10~1:100
Directions: CW/CCW Step Angle: 18 Degree
High Light:

25mm High Torque Geared Stepper Motor

,

5Vdc Geared Stepper Motor

,

Customizable High Torque Stepper Motor

25mm High Torque Stepper Motor Customizable 5Vdc Geared Stepper Motors

These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25S-048-193.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.





High Torque Geared Stepper Motor Customizable 5Vdc 25mm 0

Mechanical Dimension:MM

High Torque Geared Stepper Motor Customizable 5Vdc 25mm 1

Technical Features



These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25S-048-193.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.



NOTED:

Transmission Shaft can be made according to customer's requirement.

APPLICATIONS:

Home Applience Air-conditioning

Refrigerator Intelligent Sanitary

Automatic Door Lock CCTV Monitor

Electronic Instrument

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 25mm geared stepper motor
MODEL SM25-048S-193
STARTING FREQUENCY 720PPS min. (AT 24V DC)
RESPONCE FREQUENCY 900 PPS min. (AT 24V DC)
DETENT TORQUE 300gf.cm
RESISTENCE 100Ω±10%
RATATION CW/CCW
OPERATING TEMPERATURE RANGE -0~+55 ℃
OEM & ODM SERVICE

AVAILABLE



Product Detail Presentation

High Torque Geared Stepper Motor Customizable 5Vdc 25mm 2



Torque Curve For Reference



Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

High Torque Geared Stepper Motor Customizable 5Vdc 25mm 3

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

High Torque Geared Stepper Motor Customizable 5Vdc 25mm 4

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

High Torque Geared Stepper Motor Customizable 5Vdc 25mm 5
