External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm

Place of Origin China
Brand Name VIC-TECH
Certification RoHS, ISO9001
Model Number NEMA17
Minimum Order Quantity 1Unit
Price $12~$33/Unit
Packaging Details Standard export package in corrugated carton (Mass production).
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 3.7Ω±15% Phase 2 Phases, 4 Steps
Type Hybrid Linear Stepper Motor Step Angle 1.8°
Shaft Type Tr8 Lead Screw Pitch 2mm
High Light

Lead Screw Hybrid Linear Stepper Motor

,

NEMA17 External Drive Linear Stepper Motor

,

Hybrid Stepper Motor 42mm

Leave a Message
Product Description

NEMA17 42mm External Drive Linear Lead Screw Hybrid Stepper Motor with POM Brass Nut

This is 42mm hybrid linear stepper motor with lead screw.(NEMA 17)
Output shaft is TR8 (8mm diameter trapezoidal screw) and it has different pitch and lead.

Motor’s travel distance, and thrust is determined by motor’s lead.

We have different options for you to choose.

Lead screw length is customizable

Also we provide nut to match with lead screw. POM and brass nut are both optional.



Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement



Plus tt has extra low noise and high stability.



Design Layout (Unit:mm)

External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm 0



Nut design:

External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm 1

Parameter sheet:

Model No. VT32HS40-Linear
Motor type Linear hybrid stepper motor
Motor size 42mm * 40mm (Width*height)
Lead screw type trapezoidal screw
Lead screw length Adjustable
Nut material POM / brass



Lead screw diameter Screw Lead (mm) Screw pitch(mm) Travel per step(mm)

TR8

(8mm)

1 1 0.005
2 2 0.1
3 1.5 0.015
4 2 0.02
8 2 0.04
10 2 0.05
12 2 0.06
14 2 0.07



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

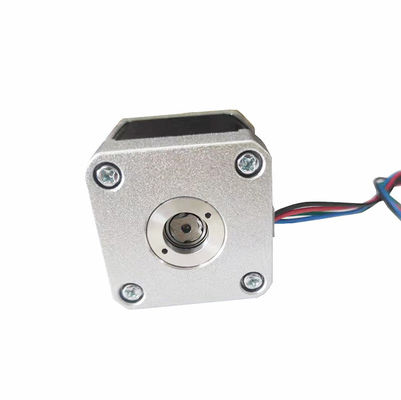

Product Detail Presentation

External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm 2



External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm 3
