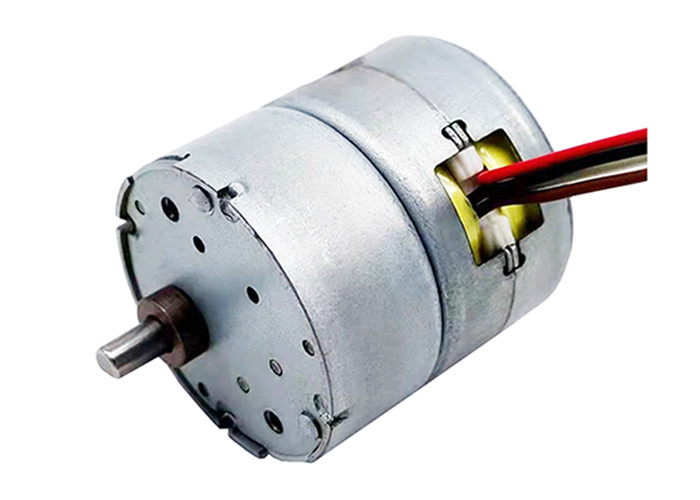

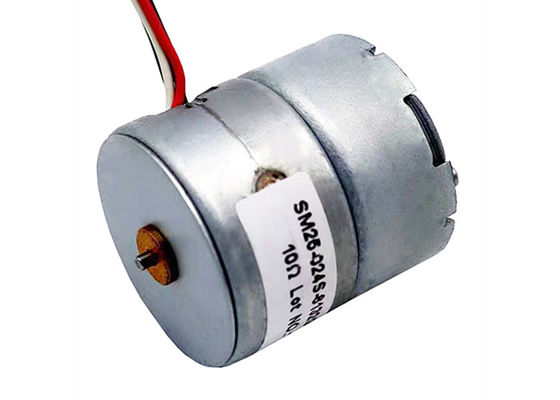

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G

  • 25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G
  • 25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G
  • 25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G
  • 25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G
25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM25-048S-8132G
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $5~8/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 10~30 days after the sample is paid
Payment Terms: MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability: 10000 PCS 45days
Contact Now
Detailed Product Description
Type: Gear Motor Torque: High Torque
Construction: Permanent Magnet Continuous Current(a): Customized
Certification: ROHS Voltage(v): 5V
Output Shaft: Customizable Reduction Ratio: Customizable1:10~1:100
Directions: CW/CCW Step Angle: 15 Degree
High Light:

15 Degree Step Angle Stepper Motor

,

25mm Diameter Step Angle Stepper Motor

,

Permanent Magnet Geared Stepper Motor

 25mm diameter 15 degree step angle stepper motor SM25-024-8135G

These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8126G.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.





25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 0





Mechanical Dimension:MM



25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 1





Technical Features



These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8135G.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.



NOTED:

Transmission Shaft can be made according to customer's requirement.

APPLICATIONS:

Home Applience Air-conditioning

Refrigerator Intelligent Sanitary

Automatic Door Lock CCTV Monitor

Electronic Instrument

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 25mm geared stepper motor
MODEL SM25-048S-8132G

Number of Phase

2 Phase

Step Angle

15°/30

Phase Voltage

5V DC

Current Per Phase

1000mA

Winding Resistance

5Ω±10%(25℃)

Max Pull-in Rate

900 PPS

Holding Torque

4000g.cm

Pull-in Torque at 100PPS

1200g.cm

Winding temperature at 500PPS

≤85K

Dielectric Strength

600 VAC 1SEC 1mA



Product Detail Presentation

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 225mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 3



Torque Curve For Reference



Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 4

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 5

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

25mm Diameter 15 Degree Step Angle Stepper Motor SM25-024-8135G 6
