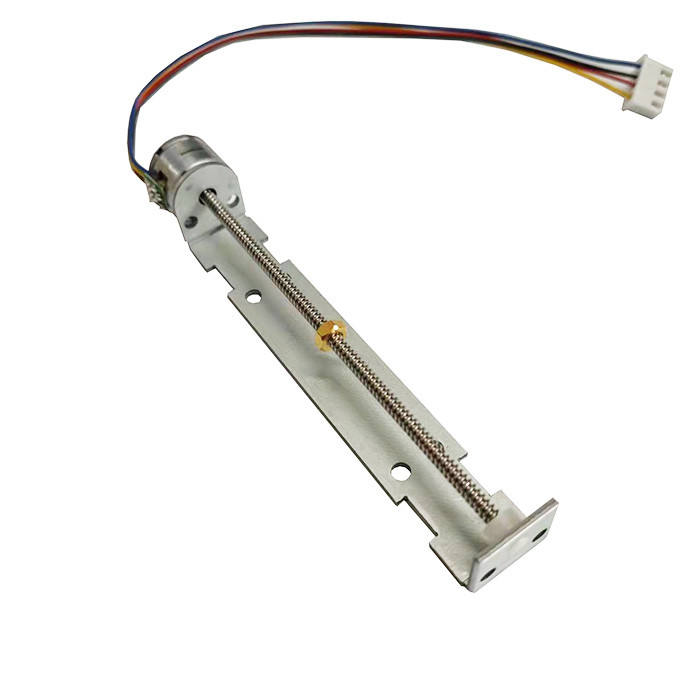

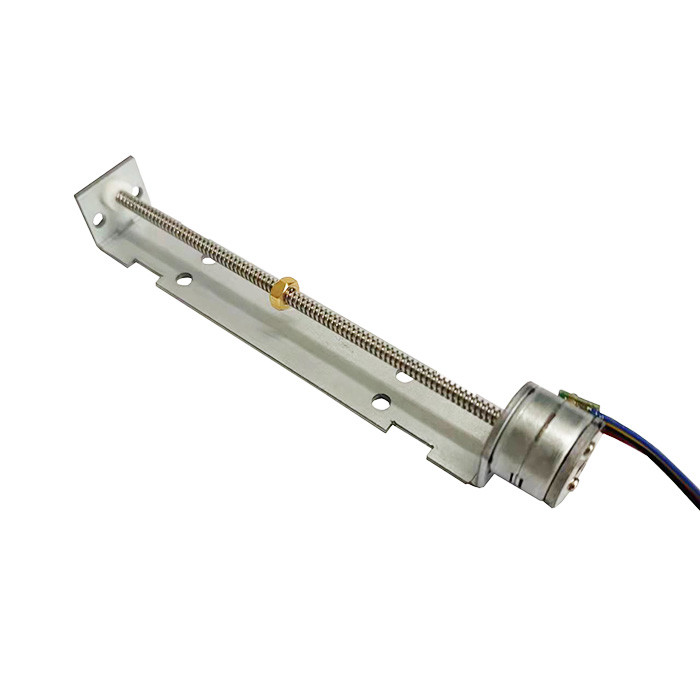

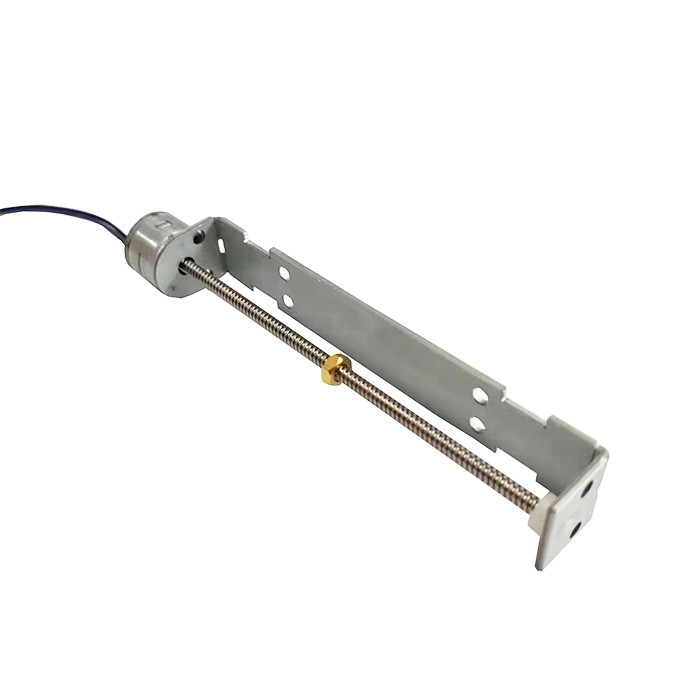

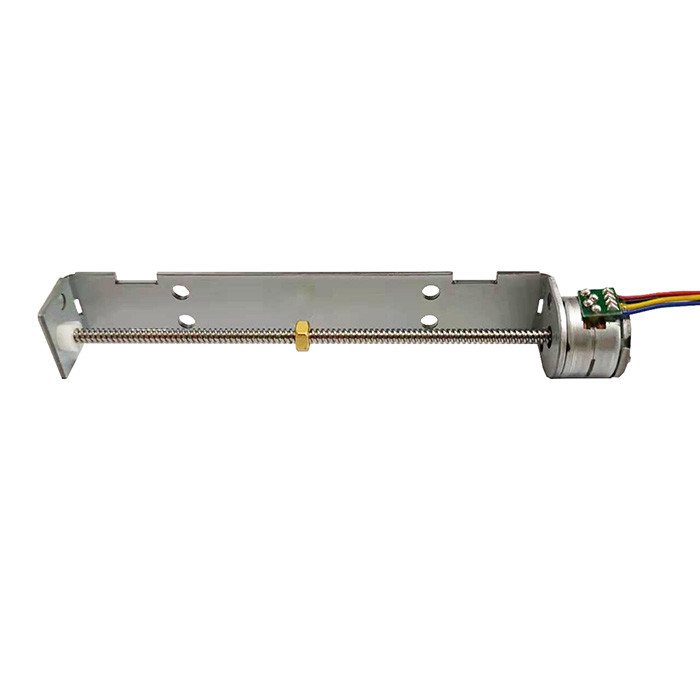

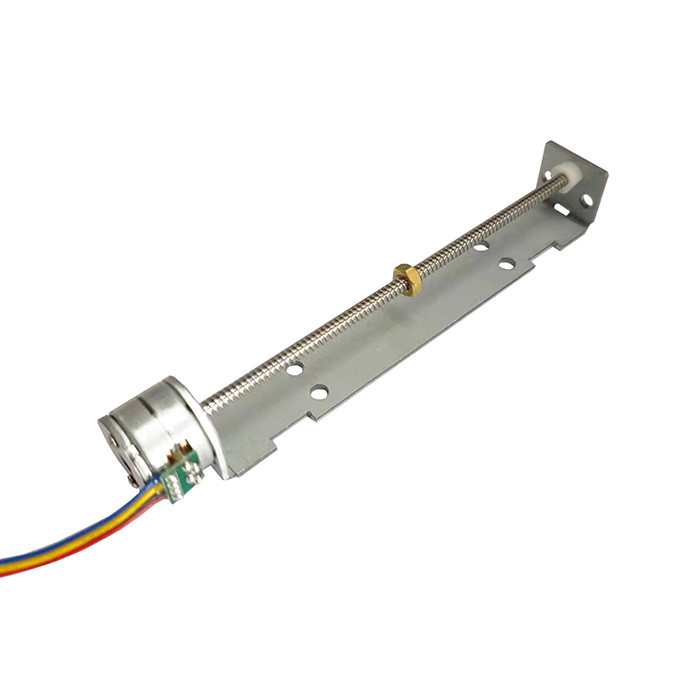

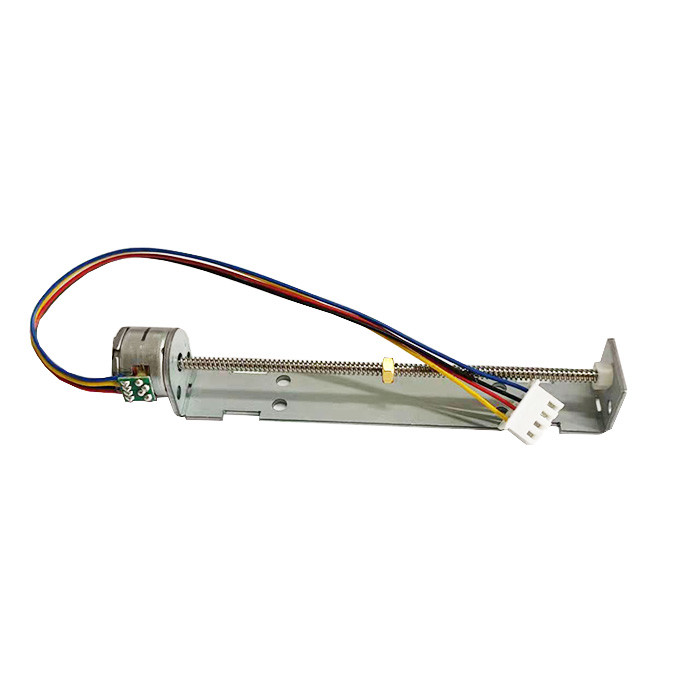

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket

  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
  • SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM1567A
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $3~$11/Unit
Packaging Details: Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time: 15-30 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000 Units/year
Contact Now
Detailed Product Description
Step Angle(degrees):: 18 Degree Phase: 2
Voltage: 5V Resistance: 15Ω±10%
Weight: 10g Rotation: CW/CCW
Type: Permanent Magnet
High Light:

Lead Screw Linear Stepper Motor

,

15mm Diameter Linear Stepper Motor

,

Bracket Micro Stepper Motor

Chinese factory SM1567A 15mm diameter copper nut lead screw linear stepper motor with bracket

This 1567A motor is a 15mm diameter linear stepper motor. It’s attached with a 1mm pitch 2 starts 3mm diameter trapezoidal lead screw, and there is a copper nut.

The connector is JST XHP-4 connector (2.5mm pitch, 4 pin).

You can customize lead screw’s length and connector type.

Feel free to contact us if you are interested in this product.





Mechanical Dimension:MM

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 0

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Electrical Parameters:

Model No. SM1567A
Motor type 15mm linear stepper motor
Rated voltage 5V
Coil resistance 15±10%Ω
Step angle 18°/step
Phase No. 2 phases bipolar
Lead screw type Tr3*1p*2N
Lead screw lead 2mm
Step travel length 0.1mm/step
Travel stroke About 86mm



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 1

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 2



Product Detail Presentation

SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 3
SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 4
SM1567A Copper Nut Lead Screw Linear Stepper Motor 15mm Diameter With Bracket 5
