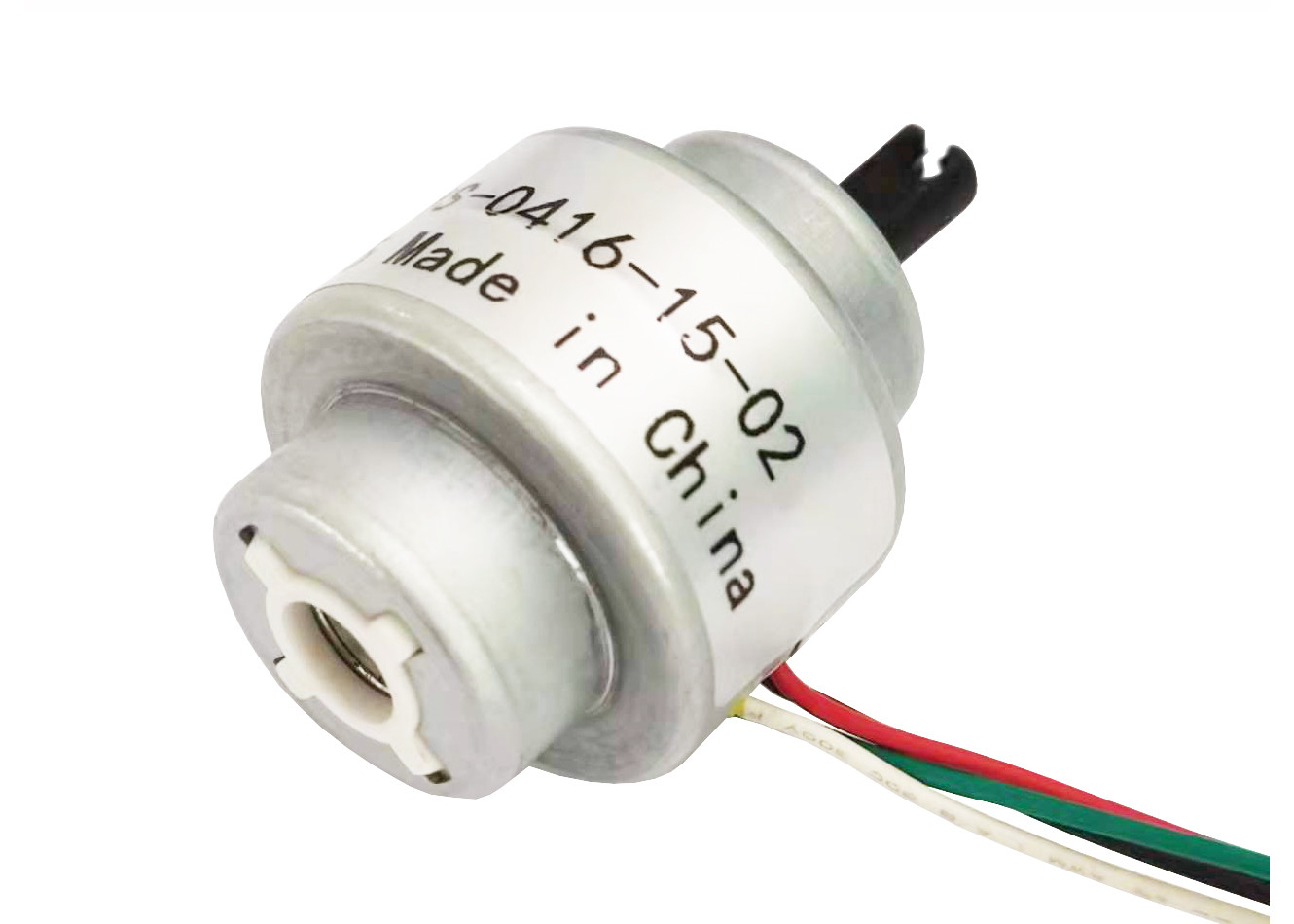

Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM25L-24S-0416-15-02
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase Inductance 55(±10%)Ohm/20C Phase Current 0.21mA
Step Angle 15° Rated Voltage 12V
Power 3.3W
High Light

Dia 25mm Linear Stepping Motor

,

12V Shaft Linear Stepping Motor

,

Custom Shaft Linear Drive Motor

Leave a Message
Product Description

Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter


VSM25L series permanent magnet linear stepping motors, when the rotor runs continuously, the lead screw will move forward or backward. This column can be divided into 3 types of motor structures: fixed shaft type, through shaft type and external drive type.

VSM25 series permanent magnet linear stepping motors have step angles of 7.5 degrees and 15 degrees. When the step angle is 7.5 degrees, the step length can be 0.0127mm, 0.0254mm, and 0.0508mm.
When the step angle is 15 degrees, the step length can be 0.0254mm, 0.0508mm, 0.1016mm.
Parameters can be customized according to customer requirements.

This product is our company's product. It converts the rotation of the motor into linear motion through the relative movement of the internal rotor and screw. Mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring part can use the connection line and other methods according to customer requirements.

Our team has more than 10 years of experience in stepper motor design, development and production, so we can realize product development and auxiliary design according to the special needs of customers!
The needs of customers are our efforts, please feel free to contact us!



Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter 0





Mechanical Dimension:MM

Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter 1











Technical Features


This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Motor diameter

25mm

Rated voltage

12V

No. of phases

2 phases

Phase Current

0.21mA

Phase Inductance

55Ω

Step angle

15°

Ster Travel 0.0416mm



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation


 Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter 2

Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm Diameter 3
