9V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM15-66L-S
Minimum Order Quantity 1Unit
Price $7~$15/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Phases Voltage 9V DC
Resistance 15±10% Ohm/PHASE(20℃) Step Angle 18°
Current Per Phase 600 MA/Phase Drive Mode Bipolar Drive
High Light

9V DC Pm Stepper Motor

,

2 Phase Pm Stepper Motor

,

Miniature Slide Screw Stepper Motor

Leave a Message
Product Description

9V DC Pm stepper motor 2 phase 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine

SM15-66L is a precision screw motor. The distance between the output shaft and the lead screw is 0.4mm. The screw and the rotation of the screw support the screw to generate thrust.
The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm to achieve the purpose of precise control.
The actuator adopts subdivision drive mode to meet the requirements.

Exquisite design: This guide rail and linear block are small in size and light in weight, especially suitable for small teams. The tool is simple to use, sturdy and durable.

Can be used for DIY small slider/project/equipment measurement/laser printer.
Adopting advanced technology and fine workmanship, it is an indispensable linear motion component.

  • 2‑phase 4‑wire micro stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

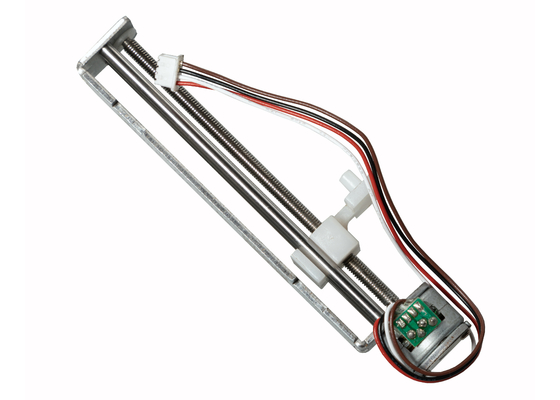

9V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine 0



Mechanical Dimension:MM

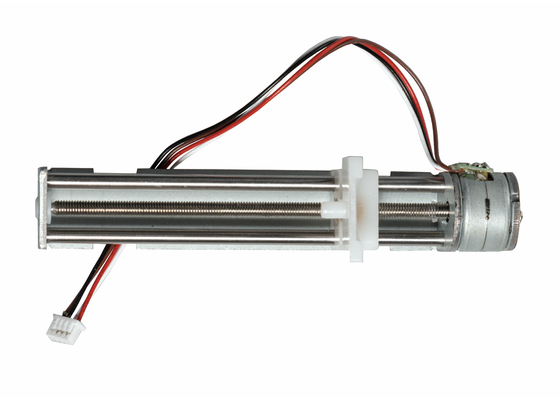

9V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model

SM15-66L-S

Rated Voltage 9V DC

Coil Resistance

15±10% ohm/PHASE(20℃))

No.Of Phases

2 Phases

Step Angle

18°/Step

Current Per Phase

600mA/Phase

Drive Mode

Bipolar Drive

Pull-out-Thrust

More Than 230 g AT 125PPS

Max Response Frequency

More Than 1300 PPS

Max Starting Frequency

More Than 900 PPS

Insulation Class

CLASS E FOR COILS

Insulation Strength

100V AC FOR ONE SECOND

Insulation Resistance

50mΩ(DC 500 V)

Operating Temperature

-0~55℃

Motor surface temperature

80℃ or less



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.



Customization service


Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Product Detail Presentation

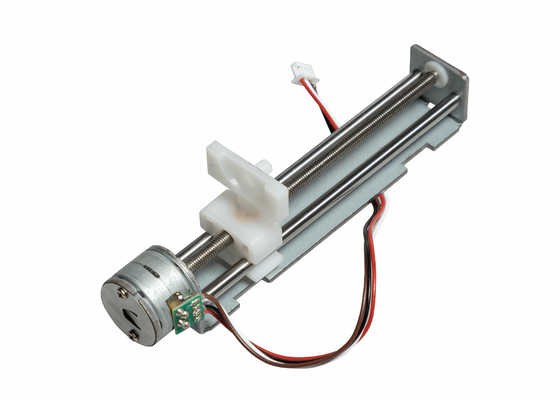

9V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine 29V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine 3

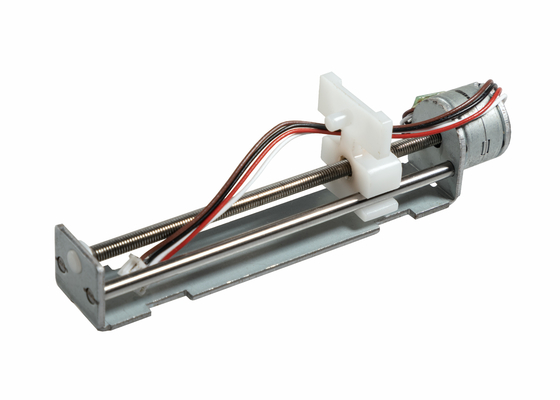

9V DC Pm stepper motor 15mm miniature stepper motor with linear screw nut slider for DIY engraving machine 4
