50mA 3.85W Custom Shaft Linear Stepping Motor 7.5 Degree Step Angle 5V 25mm Diameter for Medical Equipment
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM25L-048S-0264-42-01 |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase Inductance | 480(±10%）Ohm/20C | Phase Current | 50mA |
|---|---|---|---|
| Step Angle | 7.5° | Rated Voltage | 25mm |
| Power | 3.85W | ||
| Highlight | Custom Shaft Linear Stepping Motor,7.5 Degree Linear Stepping Motor,5V Permanent Magnet Linear Motor |
||
Product Description

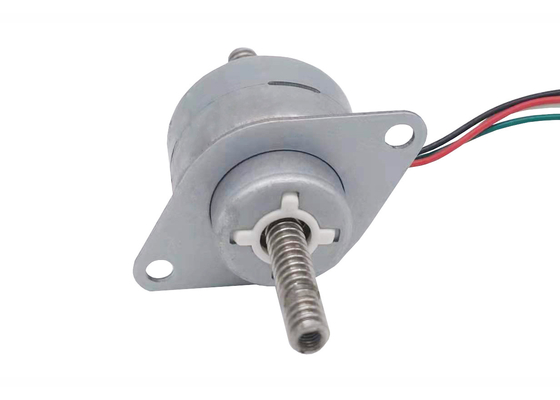

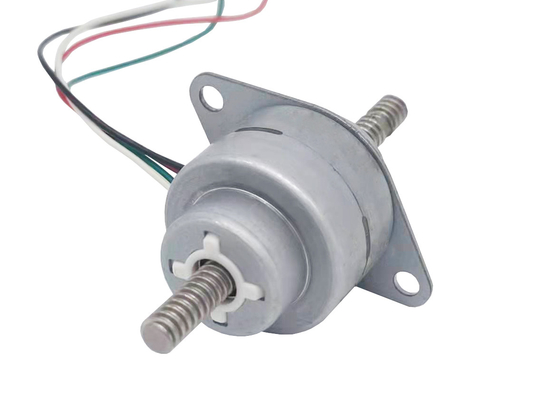

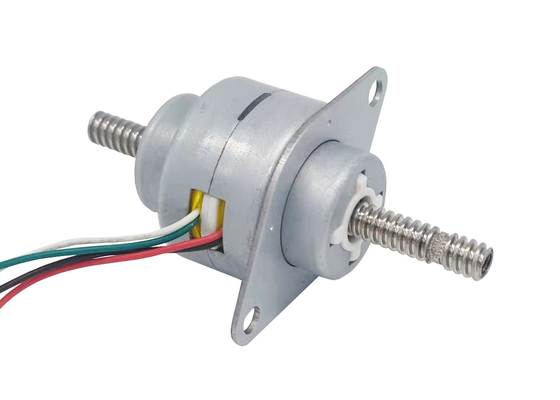

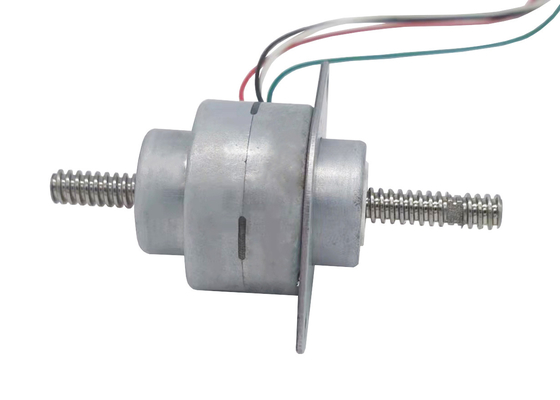

Custom shaft Through Shaft Linear Stepping Motor 7.5 Degree Step Angle 5V 25mm Diameter
VSM25L series permanent magnet linear stepping motor, when the rotor runs continuously, the lead screw will move forward or backward. This column can be divided into 3 types of motor structures: fixed shaft type, through shaft type and external drive type.
This product is a through-shaft linear stepping motor with a diameter of 25mm.
The screw shaft is customized.
Parameters can be customized according to customer requirements.
This product converts the rotation of the motor into linear motion through the relative movement of the inner rotor and the lead screw. Mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring part can be connected according to customer requirements.
Our team has more than ten years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
Technical Features
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
-
Medical Equipment
-
Automatic Control
-
3D Printer
-
Precision Calibration
-
Precision Fluid Measurement
-
Precise Position Movement
Specifications
|
Motor diameter |
25mm |
|
Rated voltage |
5V |
|
No. of phases |
2 phases |
|
Phase Current |
50mA |
|
Phase Inductance |
480Ω |
|
Step angle |
7.5° |
| Stear Travel | 0.0264 |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
